3. Characteristics of the Locking Assembly MAV 3505:

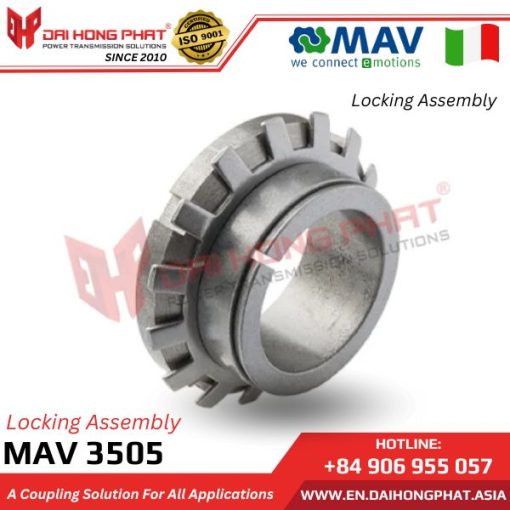

– The Locking Assembly MAV 3505 is manufactured by MAV/Italy.
– Inner diameter d: 14-60 mm.
– Outer diameter D: 25-70 mm.
– Overall length L: 16.5-30 mm.
– Torque T: 40-1,080 Nm.
– Low torque load capacity.
– Non-self-locking and non-self-centering.
– Maximum tolerance: shaft h8; center hole H8.
– Maximum surface finish of the shaft hub: Ra <= 3.2 µm.
– The MAV 3505 Locking Assembly generates high radial pressure on the device shaft and hollow shaft at elevated temperatures. It facilitates easy disassembly and reassembly, ensuring uniform slot alignment. Shaft shifting may occur during the locking process.
View more product “Locking Assembly MAV 1072“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
4. Applications of the Locking Assembly MAV 3505:
The Locking Assembly MAV 3505 is utilized in industrial applications requiring secure shaft locking, especially in high-temperature environments. Common uses include power transmission systems, rotating machinery, engine components, heat exchangers, material handling equipment, packaging machinery, and textile machinery. Its ability to withstand elevated temperatures and maintain shaft alignment makes it indispensable in various industrial settings.
5. Technical of the Locking Assembly MAV 3505:

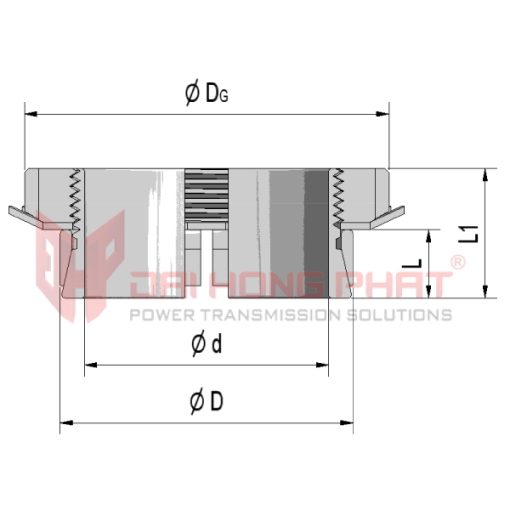

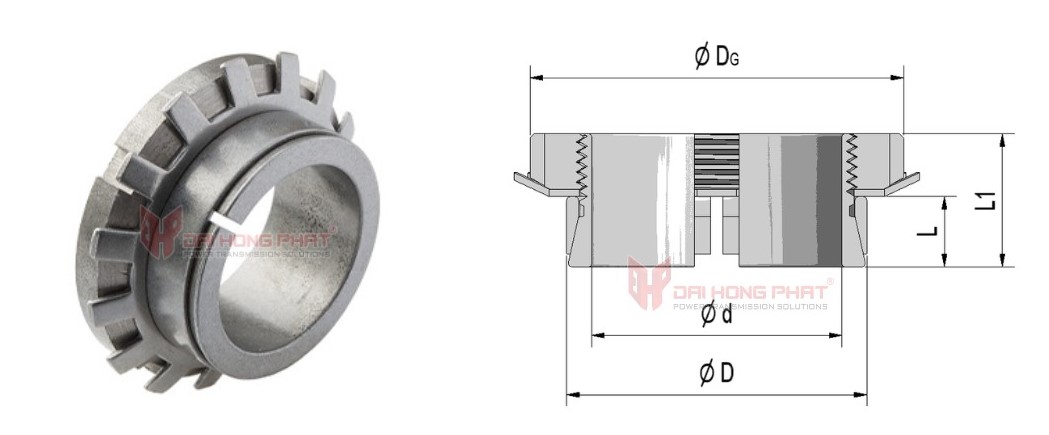

| Catalogue MAV 3505 |
Installation MAV 3505 |
||||||
 |
|
| DIMENSIONS | NUT DIN 981 – 14H |
PERFORMANCES | WEIGHT | |||||||
| d x D | DG | L1 | L | size | Ma | Mt | Fax | Ps | Ph | |
| mm x mm | mm | mm | mm | Nm | Nm | N | MPa | MPa | kg | |
| 14 x 25 | 32 | 9.5 | 16.5 | M 20 X 1 | 100 | 40 | 5,600 | 159 | 89 | 0.05 |
| 15 x 25 | 32 | 9.5 | 16.5 | M 20 X 1 | 100 | 40 | 5,600 | 149 | 89 | 0.05 |
| 16 x 25 | 32 | 9.5 | 16.5 | M 20 X 1 | 100 | 40 | 5,600 | 139 | 89 | 0.05 |
| 17 x 25 | 34 | 9.5 | 16.5 | M 20 X 1 | 100 | 50 | 5,600 | 131 | 89 | 0.04 |
| 18 x 30 | 38 | 9.5 | 17.8 | M 25 X 1.5 | 160 | 60 | 7,100 | 158 | 95 | 0.08 |
| 19 x 30 | 38 | 9.5 | 17.8 | M 25 X 1.5 | 160 | 70 | 7,100 | 150 | 95 | 0.07 |
| 20 x 30 | 38 | 9.5 | 17.8 | M 25 X 1.5 | 160 | 70 | 7,100 | 142 | 95 | 0.07 |
| 22 x 35 | 45 | 9.5 | 17.8 | M 30 X 1.5 | 220 | 90 | 8,300 | 150 | 94 | 0.11 |
| 24 x 35 | 45 | 9.5 | 17.8 | M 30 X 1.5 | 220 | 100 | 8,300 | 138 | 94 | 0.09 |
| 25 x 35 | 45 | 9.5 | 17.8 | M 30 X 1.5 | 220 | 100 | 8,300 | 132 | 94 | 0.09 |
| 28 x 40 | 52 | 10.0 | 19.3 | M 35 X 1.5 | 340 | 150 | 11,000 | 149 | 104 | 0.13 |
| 30 x 40 | 52 | 10.0 | 19.3 | M 35 X 1.5 | 340 | 160 | 11,000 | 139 | 104 | 0.13 |
| 32 x 45 | 58 | 11.0 | 21.3 | M 40 X 1.5 | 480 | 270 | 16,800 | 180 | 128 | 0.19 |
| 35 x 45 | 58 | 11.0 | 21.3 | M 40 X 1.5 | 480 | 290 | 16,800 | 165 | 128 | 0.17 |
| 38 x 50 | 65 | 14.0 | 25.3 | M 45 X 1.5 | 680 | 410 | 21,500 | 153 | 117 | 0.23 |
| 40 x 50 | 65 | 14.0 | 25.3 | M 45 X 1.5 | 680 | 430 | 21,500 | 146 | 117 | 0.23 |
| 42 x 55 | 70 | 14.0 | 26.3 | M 50 X 1.5 | 870 | 520 | 24,900 | 160 | 122 | 0.26 |
| 45 x 55 | 70 | 14.0 | 26.3 | M 50 X 1.5 | 870 | 560 | 24,900 | 150 | 122 | 0.26 |
| 48 x 60 | 75 | 14.0 | 26.5 | M 55 X 2 | 970 | 630 | 26,300 | 148 | 119 | 0.30 |
| 50 x 60 | 75 | 14.0 | 26.5 | M 55 X 2 | 970 | 660 | 26,300 | 142 | 119 | 0.30 |
| 55 x 65 | 80 | 16.5 | 29.0 | M 60 X 2 | 1,100 | 880 | 31,900 | 133 | 113 | 0.34 |
| 60 x 70 | 85 | 16.5 | 30.0 | M 65 X 2 | 1,300 | 1,080 | 36,100 | 138 | 118 | 0.39 |
Customers purchasing the MAV 3505 locking device from Dai Hong Phat Corp enjoy the following benefits:
– Dai Hong Phat Corp. is the official authorized distributor of MAV in Vietnam and the Southeast Asia region.
– The company places “quality” as its primary business objective and customer service focus.
– Đại Hồng Phát commits that all Locking Assembly MAV 4005 products are 100% genuine, brand new, accompanied by certificates, and have clear origins.
