1. What makes Dai Hong Phat Corp. the ideal choice for your Locking Assembly MAV supplier?
– You will be able to purchase 100% genuine Locking Assembly MAV 1261 directly imported by Dai Hong Phat from the manufacturer.
– You can trust Dai Hong Phat to protect you from risks and counterfeit products of MAV.
– Dai Hong Phat provides complete CO/CQ documents for Locking Assembly MAV.
– MAV products are always available in Dai Hong Phat’s warehouse, ensuring fast delivery to customers.
– Dai Hong Phat will provide technical drawings of the MAV1261 products you purchase upon request.
– Dai Hong Phat offers dedicated support and consultation to customers regarding bolted flexible couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat provides free consultation on optimal solutions for your plant regarding genuine MAV Products.
– Dai Hong Phat provides customers with genuine Locking Assembly MAV catalogues.
– Dai Hong Phat offers free technical parameter conversion and customization of MAV 1261 according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat has a professional workshop for custom machining according to customers’ specific requirements.
2. Dai Hong Phat Corp. is the specialized representative for supplying all Locking Assembly MAV products throughout Vietnam:
– Dai Hong Phat is the exclusive importer and distributor of all 100% genuine MAV brand Locking Assembly products across Vietnam and the Southeast Asia region.
– With over 10 years of reputable service, Dai Hong Phat ensures customers acquire 100% authentic Locking Assembly MAV 1261 products with high quality and the best prices in the market.

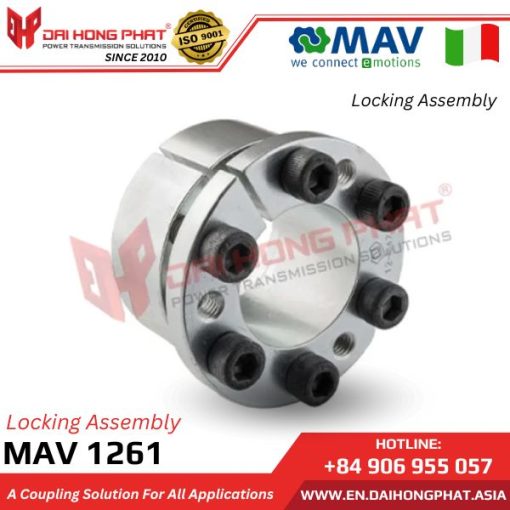

3. Characteristics of The Locking Assembly MAV 1261:
– The Locking Assembly MAV 1216 is manufactured by MAV/Italy.
– Inner diameter d: 15-50.8 mm
– Outer diameter D: 38-180 mm
– Overall length L: 35-73 mm
– Torque T: 183-1,236 Nm
– Average load
– Self-centering, self-locking
– Single cone design
– Zinc-plated
– Tolerance: shaft +-0.08mm; center hole +-0.08mm
– Surface finish of shaft and bore Ra <3.2 µm
– Incorporates the advantages of system responsiveness and easy installation removal. The MAV 1261 shaft locking device relies on the principle of transmitting axial loads via cones generated by screws to produce a large radial force for frictional locking of components. Suitable for applications in gears, rollers, cams, levers, rotors, and various others.
– MAV 1261 ensures transmission even in loose screw conditions. Self-locking characteristics depend on the cone angle. Removal of self-locking units is achieved through integrated push-out streams. Operating temperature ranges from -20°C to +150°C, ensuring precise functionality.
View more product “Locking Assembly MAV 1071“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
4. Applications of The Locking Assembly MAV 1261:
The Locking Assembly MAV 1261 is a versatile solution employed in various industries for ensuring secure shaft locking. It finds widespread application in gear assemblies, conveyor systems, cam mechanisms, lever assemblies, rotor assemblies, belt and pulley systems, packaging machinery, mining equipment, industrial automation systems, and material handling equipment. With its reliable locking mechanism and robust design, the MAV 1261 plays a crucial role in maintaining alignment, stability, and operational efficiency across diverse industrial applications.

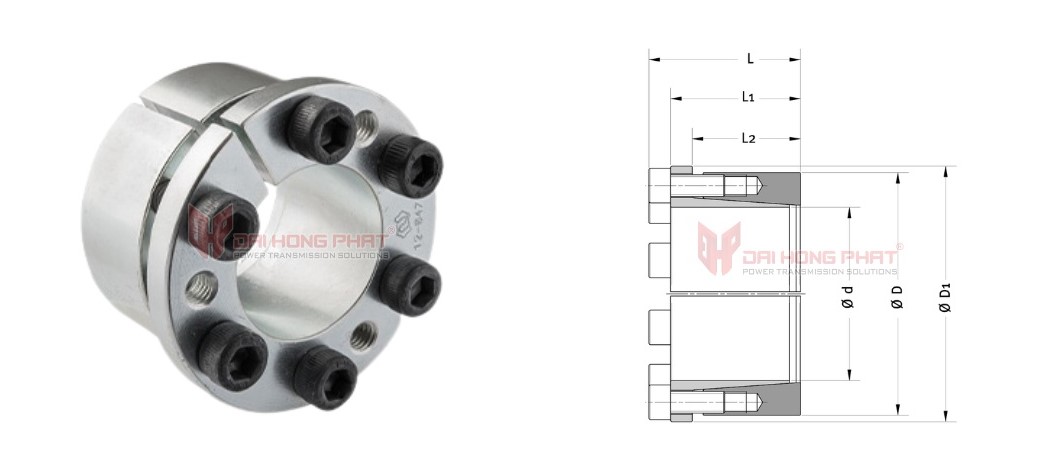

5. Technical of the Locking Assembly MAV 1261:
| Catalogue MAV 1261 |
Installation MAV 1261 |
||||||
 |
|

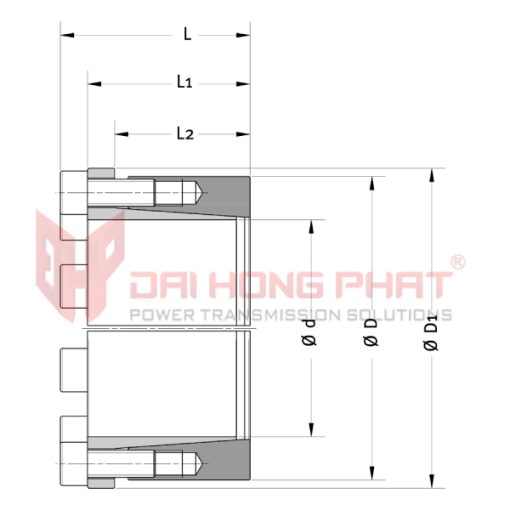

| DIMENSIONS | SCREWS | PERFORMANCES | WEIGHT | ||||||||||||
| d mm | d inch | x | D mm |
D inch |
D1 mm |
L mm |
L1 mm |
L2 mm |
size | Ma Nm | Mt Nm | Fax kN | Ps MPa | Ph MPa | kg |
| 15.00 | 5/ 8 | x | 38.00 | 43 | 31.0 | 25.0 | 19.0 | M 6 | 17 | 183 | 24.3 | 181 | 72 | 0.2 | |
| 15.88 | x | 38.10 | 1 1/ 2 | 43 | 31.0 | 25.0 | 19.0 | M 6 | 17 | 193 | 24.3 | 171 | 71 | 0.2 | |
| 16.00 | x | 38.00 | 43 | 31.0 | 25.0 | 19.0 | M 6 | 17 | 195 | 24.3 | 170 | 72 | 0.2 | ||
| 17.00 | x | 38.00 | 43 | 31.0 | 25.0 | 19.0 | M 6 | 17 | 207 | 24.3 | 160 | 72 | 0.2 | ||
| 17.46 | 11/16 | x | 38.10 | 1 1/ 2 | 43 | 31.0 | 25.0 | 19.0 | M 6 | 17 | 212 | 24.3 | 156 | 71 | 0.2 |
| 18.00 | x | 38.00 | 43 | 31.0 | 25.0 | 19.0 | M 6 | 17 | 219 | 24.3 | 151 | 72 | 0.2 | ||
| 19.00 | x | 38.00 | 43 | 31.0 | 25.0 | 19.0 | M 6 | 17 | 231 | 24.3 | 143 | 72 | 0.2 | ||
| 19.05 | 3/ 4 | x | 38.10 | 1 1/ 2 | 43 | 31.0 | 25.0 | 19.0 | M 6 | 17 | 232 | 24.3 | 143 | 71 | 0.2 |
| 20.00 | x | 45.00 | 50 | 34.2 | 28.2 | 22.2 | M 6 | 17 | 304 | 30.4 | 145 | 65 | 0.3 | ||
| 20.64 | 13/16 | x | 44.45 | 1 3/ 4 | 50 | 34.2 | 28.2 | 22.2 | M 6 | 17 | 314 | 30.4 | 141 | 65 | 0.3 |
| 22.00 | x | 45.00 | 50 | 34.2 | 28.2 | 22.2 | M 6 | 17 | 335 | 30.4 | 132 | 65 | 0.2 | ||
| 22.23 | 7/ 8 | x | 44.45 | 1 3/ 4 | 50 | 34.2 | 28.2 | 22.2 | M 6 | 17 | 338 | 30.4 | 131 | 65 | 0.2 |
| 23.81 | 15/16 | x | 44.45 | 1 3/ 4 | 50 | 34.2 | 28.2 | 22.2 | M 6 | 17 | 362 | 30.4 | 122 | 65 | 0.2 |
| 24.00 | x | 45.00 | 50 | 34.2 | 28.2 | 22.2 | M 6 | 17 | 365 | 30.4 | 121 | 65 | 0.2 | ||
| 25.00 | x | 45.00 | 50 | 34.2 | 28.2 | 22.2 | M 6 | 17 | 380 | 30.4 | 116 | 65 | 0.2 | ||
| 25.40 | 1 | x | 44.45 | 1 3/ 4 | 50 | 34.2 | 28.2 | 22.2 | M 6 | 17 | 386 | 30.4 | 114 | 65 | 0.2 |
| 26.99 | 1 1/16 | x | 50.80 | 2 | 57 | 37.4 | 31.4 | 25.4 | M 6 | 17 | 493 | 36.5 | 113 | 60 | 0.3 |
| 28.00 | x | 51.00 | 57 | 37.4 | 31.4 | 25.4 | M 6 | 17 | 511 | 36.5 | 109 | 60 | 0.3 | ||
| 28.58 | 1 1/ 8 | x | 50.80 | 2 | 57 | 37.4 | 31.4 | 25.4 | M 6 | 17 | 522 | 36.5 | 107 | 60 | 0.3 |
| 30.00 | x | 51.00 | 57 | 37.4 | 31.4 | 25.4 | M 6 | 17 | 548 | 36.5 | 102 | 60 | 0.3 | ||
| 30.16 | 1 3/16 | x | 50.80 | 2 | 57 | 37.4 | 31.4 | 25.4 | M 6 | 17 | 551 | 36.5 | 101 | 60 | 0.3 |
| 31.75 | 1 1/ 4 | x | 50.80 | 2 | 57 | 37.4 | 31.4 | 25.4 | M 6 | 17 | 580 | 36.5 | 96 | 60 | 0.3 |
| 32.00 | x | 51.00 | 57 | 37.4 | 31.4 | 25.4 | M 6 | 17 | 584 | 36.5 | 95 | 60 | 0.3 | ||
| 33.34 | 1 5/16 | x | 60.33 | 2 3/ 8 | 67 | 50.0 | 44.0 | 38.0 | M 6 | 17 | 811 | 48.7 | 82 | 45 | 0.6 |
| 34.00 | x | 60.50 | 67 | 50.0 | 44.0 | 38.0 | M 6 | 17 | 827 | 48.7 | 80 | 45 | 0.6 | ||
| 34.93 | 1 3/ 8 | x | 60.33 | 2 3/ 8 | 67 | 50.0 | 44.0 | 38.0 | M 6 | 17 | 850 | 48.7 | 78 | 45 | 0.6 |
| 35.00 | x | 60.50 | 67 | 50.0 | 44.0 | 38.0 | M 6 | 17 | 852 | 48.7 | 78 | 45 | 0.6 | ||
| 36.00 | x | 60.50 | 67 | 50.0 | 44.0 | 38.0 | M 6 | 17 | 876 | 48.7 | 76 | 45 | 0.6 | ||
| 36.51 | 1 7/16 | x | 60.33 | 2 3/ 8 | 67 | 50.0 | 44.0 | 38.0 | M 6 | 17 | 889 | 48.7 | 74 | 45 | 0.6 |
| 38.00 | x | 60.50 | 67 | 50.0 | 44.0 | 38.0 | M 6 | 17 | 925 | 48.7 | 72 | 45 | 0.5 | ||
| 38.10 | 1 1/ 2 | x | 60.33 | 2 3/ 8 | 67 | 50.0 | 44.0 | 38.0 | M 6 | 17 | 927 | 48.7 | 71 | 45 | 0.5 |
| 39.69 | 1 9/16 | x | 66.68 | 2 5/ 8 | 73 | 54.8 | 48.8 | 42.8 | M 6 | 17 | 966 | 48.7 | 61 | 36 | 0.8 |
| 40.00 | x | 67.00 | 73 | 54.8 | 48.8 | 42.8 | M 6 | 17 | 974 | 48.7 | 60 | 36 | 0.8 | ||
| 41.28 | 1 5/ 8 | x | 66.68 | 2 5/ 8 | 73 | 54.8 | 48.8 | 42.8 | M 6 | 17 | 1˙005 | 48.7 | 58 | 36 | 0.8 |
| 42.00 | x | 67.00 | 73 | 54.8 | 48.8 | 42.8 | M 6 | 17 | 1˙022 | 48.7 | 57 | 36 | 0.7 | ||
| 42.86 | 1 11/16 | x | 66.68 | 2 5/ 8 | 73 | 54.8 | 48.8 | 42.8 | M 6 | 17 | 1˙043 | 48.7 | 56 | 36 | 0.7 |
| 44.45 | 1 3/ 4 | x | 66.68 | 2 5/ 8 | 73 | 54.8 | 48.8 | 42.8 | M 6 | 17 | 1˙082 | 48.7 | 54 | 36 | 0.7 |
| 45.00 | x | 73.00 | 81 | 62.8 | 56.8 | 50.8 | M 6 | 17 | 1˙095 | 48.7 | 45 | 28 | 1.0 | ||
| 46.04 | 1 13/16 | x | 73.03 | 2 7/ 8 | 81 | 62.8 | 56.8 | 50.8 | M 6 | 17 | 1˙121 | 48.7 | 44 | 28 | 1.0 |
| 47.63 | 1 7/ 8 | x | 73.03 | 2 7/ 8 | 81 | 62.8 | 56.8 | 50.8 | M 6 | 17 | 1˙159 | 48.7 | 43 | 28 | 1.0 |
| 48.00 | x | 73.00 | 81 | 62.8 | 56.8 | 50.8 | M 6 | 17 | 1˙168 | 48.7 | 42 | 28 | 1.0 | ||
| 49.21 | 1 15/16 | x | 73.03 | 2 7/ 8 | 81 | 62.8 | 56.8 | 50.8 | M 6 | 17 | 1˙198 | 48.7 | 41 | 28 | 0.9 |
| 50.00 | x | 73.00 | 81 | 62.8 | 56.8 | 50.8 | M 6 | 17 | 1˙217 | 48.7 | 41 | 28 | 0.9 | ||
| 50.80 | 2 | x | 73.03 | 2 7/ 8 | 81 | 62.8 | 56.8 | 50.8 | M 6 | 17 | 1˙236 | 48.7 | 40 | 28 | 0.9 |
Customers purchasing the MAV 1261 shaft locking device from Đại Hồng Phát enjoy the following benefits:
– Dai Hong Phat Corp. is the official authorized distributor of MAV in Vietnam and the Southeast Asia region.
– The company places “quality” as its primary business objective and customer service focus.
– Đại Hồng Phát commits that all Locking Assembly MAV 1261 products are 100% genuine, brand new, accompanied by certificates, and have clear origins.
Contact Dai Hong Phat now for consultation!
