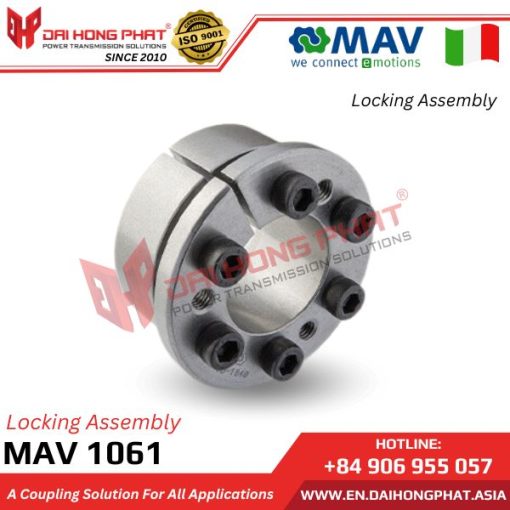

MAV 1061 LOCKING ASSEMBLY

The locking assembly MAV 1061 serves as an intermediary device connecting the motor, gearbox, and drive shaft to other transmission components such as gears, sprockets, rollers, levers, sliding mechanisms, cables, conveyors, etc. Its robust structure and substantial frictional force ensure a secure locking of the shaft and equipment together with just a few screws. This design prevents gears, sprockets, etc., from slipping off the shaft and provides self-centering capability.

Category: MAV Locking Assemblies Tags: power lock, MAV 1061 locking device, Shaft hub connections, Power transmission components, Locking devices, Keyless shaft bushing, MAV Italy, Locking assembly MAV 1061, LOCKING ELEMENTS, MAV locking assemblies, Ringfeder locking assemblies, MAV 1061, LOCKING ASSEMBLY

Description

5/5 - (1 vote)

1. Why choose Dai Hong Phat Corp. as the supplier of MAV 1061 locking assemblies?

MAV is a renowned Italian brand specializing in power transmission equipment. Its products are highly regarded for their quality and reliability. As a result, the brand has gained significant traction and recognition worldwide. In Vietnam, Đại Hồng Phát has partnered with MAV as an authorized distributor, offering 100% genuine products. This collaboration ensures customers have access to a wide range of sizes and facilitates quick and convenient purchasing options.

The outstanding benefits when purchasing MAV products from Dai Hong Phat Corp:

– Genuine Locking Assembly MAV 1061 products directly imported from the manufacturer.
– Protection against counterfeit goods.
– Provision of complete CO/CQ documents for customers.
– Ready-to-deliver stocked items for quick delivery.
– Technical drawings provided upon request.
– High-level technical support from experienced professionals.
– Free consultation for optimal solutions tailored to customers’ needs.
– Genuine product catalogues available.
– Free technical parameter and size customization.
– Nationwide 24/7 delivery service to minimize downtime.
– Professional customization services available upon customers’ requests.

2. Dai Hong Phat Corp. is a representative specializing in providing all MAV products throughout Vietnam:

– Dai Hong Phat is the exclusive importer and distributor of all 100% genuine MAV brand Locking Assembly products across Vietnam and the Southeast Asia region.
– With over 10 years of reputable service, Dai Hong Phat ensures customers acquire 100% authentic Locking Assembly MAV 1061 products with high quality and the best prices in the market.

3. Characteristics of The Locking Assembly MAV 1061:

– Khớp khóa trục MAV 1061 được sản xuất bởi hãng: MAV/Italy.
– Tải trung bình.
– Tự định tâm, tự khóa.
– Cố định vị trí trung tâm trục trong quá trình siết chặt.
– Thiết kế côn đơn.
– Dung sai: trục h8; lỗ trung tâm h8.
– Bề mặt hoàn thiện của trục và lỗ khoan tâm ra <3,2 μm.

View more product “Khóa trục côn MAV 1261“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of The MAV 1061 Locking Assembly:

The locking assembly MAV 1061 not only ensures robust torque transmission but also stabilizes both axial and radial forces as well as moments. Such a locking assembly combination can transmit significantly higher torque, thereby allowing for much thinner and shorter shaft designs.

5. Functions, Technical of The MAV 1061 Locking Assembly:

Thanks to the substantial frictional force, the locking assembly securely fastens the shaft and the equipment together with just a few screws, ensuring a strong structure that prevents gears, sprockets, etc., from slipping off the shaft and providing self-centering capability.

Technical of The Locking Assembly MAV 1061:

Catalogue MAV 1061				Installation MAV 1061

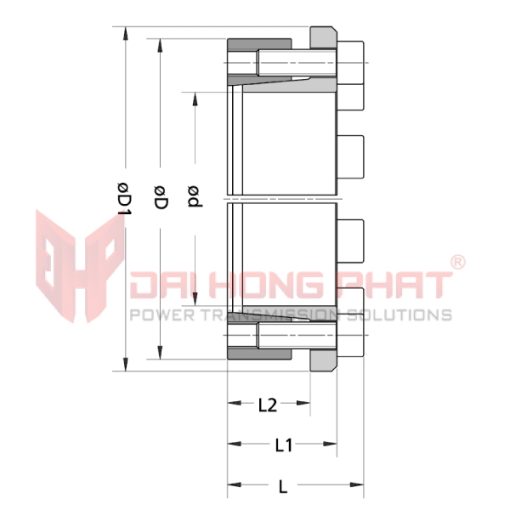

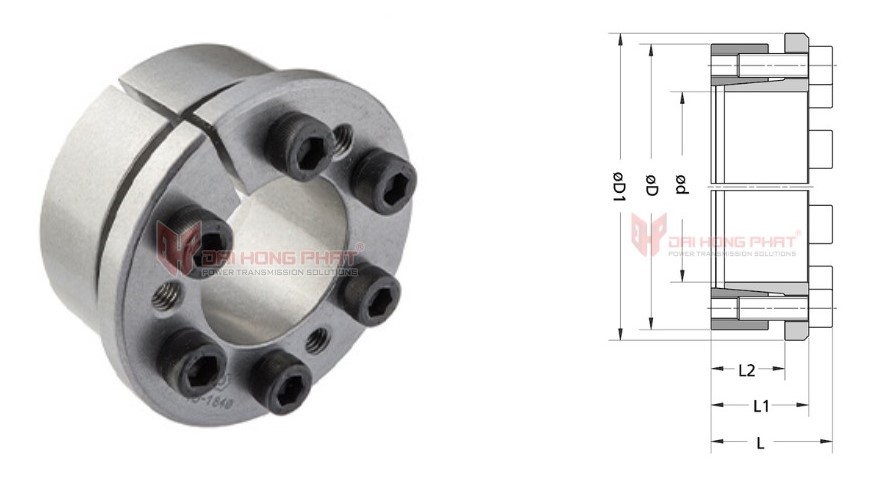

*Technical drawing of The Locking Assembly MAV 1061*

Model	d	D	D1	L2	L1	L	Mt	Fax	WEIGHT
Model	mm	mm	mm	mm	mm	mm	Nm	kN	kg
MAV 1061 size 14×28	14	28	32	17	20.5	24.5	68	10	0.07
MAV 1061 size 15×28	15	28	32	17	20.5	24.5	73	10	0.06
MAV 1061 size 16×32	16	32	37	18	21.5	25.5	78	10	0.09
MAV 1061 size 18×47	18	47	52	22.5	28.5	34.5	250	28	0.3
MAV 1061 size 19×47	19	47	52	22.5	28.5	34.5	260	28	0.3
MAV 1061 size 20×47	20	47	52	22.5	28.5	34.5	280	28	0.3
MAV 1061 size 22×47	22	47	52	22.5	28.5	34.5	310	28	0.3
MAV 1061 size 24×50	24	50	56.5	22.5	28.5	34.5	400	33	0.3
MAV 1061 size 25×50	25	50	56.5	22.5	28.5	34.5	420	33	0.3
MAV 1061 size 28×55	28	55	61.5	22.5	28.5	34.5	470	33	0.4
MAV 1061 size 30×55	30	55	61.5	22.5	28.5	34.5	500	33	0.3
MAV 1061 size 32×60	32	60	66.5	22.5	28.5	34.5	710	45	0.4
MAV 1061 size 35×60	35	60	66.5	22.5	28.5	34.5	780	45	0.4
MAV 1061 size 38×65	38	65	71.5	22.5	28.5	34.5	850	45	0.5
MAV 1061 size 40×65	40	65	71.5	22.5	28.5	34.5	890	45	0.4
MAV 1061 size 42×75	42	75	83.5	26.5	34.5	42.5	1,510	72	0.8
MAV 1061 size 45×75	45	75	83.5	26.5	34.5	42.5	1,620	72	0.7
MAV 1061 size 48×80	48	80	88.5	26.5	34.5	42.5	1,730	72	0.8
MAV 1061 size 50×80	50	80	88.5	26.5	34.5	42.5	1,800	72	0.8
MAV 1061 size 55×85	55	85	93.5	26.5	34.5	42.5	2,260	82	0.8
MAV 1061 size 60×90	60	90	98	26.5	34.5	42.5	2,470	82	0.9
MAV 1061 size 65×95	65	95	102	26.5	34.5	42.5	3,010	93	0.9
MAV 1061 size 70×110	70	110	119	30.5	40.5	50.5	4,730	135	1.7
MAV 1061 size 75×115	75	115	124	30.5	40.5	50.5	5,070	135	1.8
MAV 1061 size 80×120	80	120	129	30.5	40.5	50.5	5,410	135	1.9
MAV 1061 size 85×125	85	125	134	30.5	40.5	50.5	6,460	152	2
MAV 1061 size 90×130	90	130	139	30.5	40.5	50.5	6,840	152	2
MAV 1061 size 95×135	95	135	144	30.5	40.5	50.5	8,020	169	2.1
MAV 1061 size 100×145	100	145	154	33	45	57	10,100	202	2.8
MAV 1061 size 110×155	110	155	164	33	45	57	11,100	202	3
MAV 1061 size 120×165	120	165	174	33	45	57	13,600	227	3.3
MAV 1061 size 130×180	130	180	189	41	55	69	19,800	305	4.7
MAV 1061 size 140×190	140	190	199	41	55	69	21,400	305	5.2
MAV 1061 size 150×200	150	200	209	41	55	69	25,400	339	5.5
MAV 1061 size 160×210	160	210	219	41	55	69	29,900	373	5.8
MAV 1061 size 170×225	170	225	234	51	65	79	34,600	407	8.1
MAV 1061 size 180×235	180	235	244	51	65	79	36,600	407	8.5
MAV 1061 size 190×250	190	250	259	51	65	79	48,300	509	9.8
MAV 1061 size 200×260	200	260	269	51	65	79	50,900	509	10.2
MAV 1061 size 220×285	220	285	292	57	73	89	61,300	558	13.7
MAV 1061 size 240×305	240	305	314	57	73	89	83,600	697	14.8
MAV 1061 size 260×325	260	325	334	57	73	89	109,000	836	15.8
MAV 1061 size 280×355	280	355	364	67	85	103	126,000	897	23.4
MAV 1061 size 300×375	300	375	384	67	85	103	151,000	1,010	24.8
MAV 1061 size 320×405	320	405	414	82	102	122	209,000	1,310	35
MAV 1061 size 340×425	340	425	434	82	102	122	259,000	1,530	37
MAV 1061 size 360×455	360	455	464	94	116	138	292,000	1,620	50.5
MAV 1061 size 380×475	380	475	484	94	116	138	359,000	1,890	53.1
MAV 1061 size 400×495	400	495	504	94	116	138	378,000	1,890	56.5
