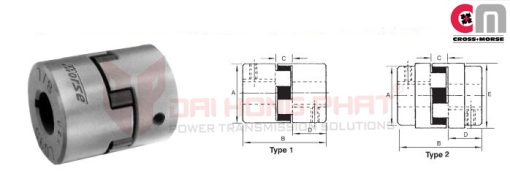

Technical drawing of L Series Elastomer Jaw Couplings

L SERIES ELASTOMERIC JAW COUPLING

The L Series Elastomeric Jaw Couplings come in various sizes such as L070, L075, L090, L095, L099, L100, L110, L115, L190, and L225, with stock always available in the warehouse. These couplings are made from a high-grade oil-resistant rubber compound known for its flexibility and excellent shock-absorbing capabilities.

Category: Cross Morse Flexible Couplings Tags: Crossmorse, crossmorse coupling, Cross Morse UK, Cross Morse distributors, Cross Morse Vietnam, L Series Elastomer Jaw Couplings, L Series Flexible Jaw Couplings

Description

5/5 - (2 votes)

1. Why choose Dai Hong Phat Corp. as your supplier for Cross Morse Flexible Couplings?

– Customers will be able to purchase 100% genuine couplings directly imported from Cross Morse/UK by Dai Hong Phat Company.
– Customers can rest assured as Dai Hong Phat Company will protect them against the risk of counterfeit L couplings.
– Customers will receive full CO/CQ documentation for the L couplings provided by Dai Hong Phat Company.
– Genuine L series Elastomeric Jaw Couplings are always available in Dai Hong Phat Company’s warehouse, ensuring prompt delivery to customers without long waiting times.
– Dai Hong Phat will provide technical drawings of the purchased products upon request.
– Dai Hong Phat Company always provides dedicated support to customers with a team of highly skilled technical experts.
– The company offers free consultation on optimization solutions for customers’ factories regarding the purchased products.
– Dai Hong Phat will supply authentic product catalogues to customers.
– Customers will receive free customization of technical specifications and sizes for L couplings according to their requirements.
– Dai Hong Phat Company provides nationwide 24/7 delivery services, minimizing downtime for customers’ machinery.
– The company operates a professional workshop for precision machining according to customers’ specific requests related to coupling products.

2. Dai Hong Phat Corp. is the specialized representative for supplying all L Flexible Jaw Couplings in Vietnam:

– Dai Hong Phat Company is the exclusive importer and distributor of all 100% genuine Cross Morse shaft coupling products throughout Vietnam. (Authorized Distributor for Cross Morse Products in Vietnam).
– With over 15 years of reputable service, Dai Hong Phat ensures customers acquire L Series Elastomeric Jaw Couplings that are 100% authentic, high-quality, and competitively priced in the market.

3. Characteristics of L Series Elastomeric Jaw Couplings:

– L Series Elastomeric Jaw Couplings are manufactured by Cross Morse/England.
– Available in various sizes, ranging from small to medium, with customizable dimensions.
– Load and performance characteristics depend on the type of cushion ring used.
– Power rating up to 112 kW at 1500 rpm.
– Shaft sizes range from 3.2mm to 60mm.
– Designed for applications ranging from light to medium duty, with load and performance characteristics depending on the type of damping ring used.

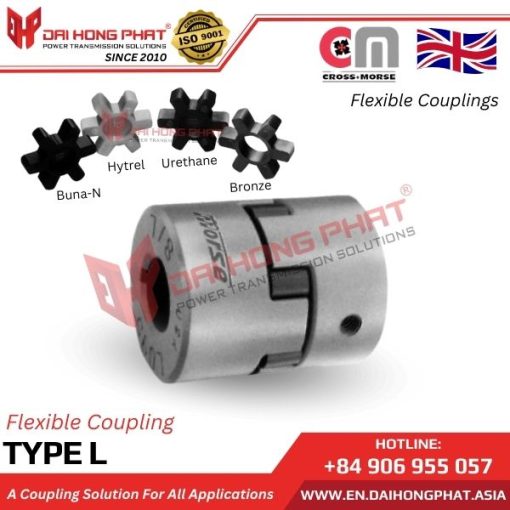

– L Elastomer Jaw Coupling contains only three components: two hubs and one cushion ring. The load is transmitted between the half-hubs via an insert, available in a choice of four materials to suit all application characteristics and horsepower requirements. All sizes are interchangeable to industrial standards, making replacement in existing installations easier and more cost-effective.

View more product “KE Series Elastomeric Jaw Couplings“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VNb

4. Applications of Cross Morse Elastomeric Jaw Couplings:

L Series Elastomeric Jaw Couplings are designed for applications ranging from small to medium-sized, with load and performance characteristics depending on the type of insert used. These couplings are widely used in various industries requiring high precision, such as fans, mixers, pumps, air compressors, gearboxes, conveyors, and face mask production lines, among others.

5. Technical of L Series Elastomeric Jaw Couplings:

Catalogue L Elastomer Jaw Couplings				Installation L Elastomer Jaw Couplings

Coupling Size	Type	Coupling Half									Insert Part Nos.
		Min Bore	Max Bore	Setscrews	A	B	C	D	E	Weight kg	Buna-N	Urethane	Hytrel	Weight kg	Bronze	Weight kg
L035	1	–	9.5	–	15.9	20.6	7.2	6.7	–	0.010	L035N	N/A	N/A	0.002	N/A	–
L050	1	6	15.0	M5	27.4	43.7	11.9	15.9	–	0.065	L050N	N/A	L050H	0.007	L050B	0.022
L070	1	9	19.0	M6	34.5	50.8	12.7	19.1	–	0.135	L070N	L070U	L070H	0.008	L070B	0.028
L075	1	9	22.2	M6	44.5	54.0	12.7	20.6	–	0.23	L075N	L075U	L075H	0.012	L075B	0.065
L090	1	9	25.4	M6	53.6	54.0	12.7	20.6	–	0.36	L090N	L090U	L090H	0.015	L090B	0.100
L095	1	9	28.6	2xM6	53.6	63.5	12.7	25.4	–	0.40	L090N	L090U	L090H	0.015	L090B	0.100
L099	1	12	30.2	2xM8	64.3	73.0	19.1	27.0	–	0.61	L099N	L099U	L099H	0.033	L099B	0.150
L100	1	12	35.0	2xM8	64.3	89.0	19.1	34.9	–	0.81	L099N	L099U	L099H	0.033	L099B	0.150
L110	1	15	41.3	2xM10	84.2	108.0	22.2	42.9	–	1.71	L110N	L110U	L110H	0.065	L110B	0.30
L150	1	15	47.6	2xM10	95.0	114.5	25.4	44.5	–	2.28	L150N	L150U	L150H	0.095	L150B	0.63
L190	2	20	54.0	2xM12	102.0	133.5	25.4	54.0	114.5	3.72	L190N	L190U	L190H	0.145	L190B	0.90
L225	2	20	60.0	2xM12	108.0	152.0	25.4	63.5	127.0	5.20	L225N	L225U	L225H	0.190	L225B	1.12

Insert Material	Coupling Size	Max Bore	Max rpm	Max Torque Nm	kW Power Capacities
					50	100	300	600	900	1200	1500	1800	3600
	L035	9.5	31000	0.4	0.002	0.004	0.013	0.026	0.037	0.05	0.06	0.07	0.15
	L050	16.0	18000	2.9	0.015	0.030	0.092	0.186	0.276	0.36	0.45	0.55	1.10
	L070	19.0	14000	5.0	0.026	0.052	0.157	0.313	0.470	0.63	0.78	0.94	1.88
	L075	22.2	11000	10.0	0.052	0.104	0.285	0.565	0.940	1.24	1.56	1.88	3.76
	L090	25.4	9000	16.4	0.086	0.172	0.515	1.03	1.54	2.06	2.57	3.09	6.18
BUNA-N	L095	28.6	9000	21.4	0.112	0.224	0.670	1.35	2.02	2.68	3.35	4.03	8.05
	L099	30.2	7000	35.6	0.190	0.373	1.12	2.24	3.35	4.50	5.6	6.70	13.4

	L100	35.0	7000	47.0	0.250	0.500	1.48	2.95	4.40	5.90	7.4	8.90	17.7
	L110	41.3	5000	89.0	0.470	0.930	2.80	5.60	8.40	11.2	14.0	16.8	33.6
	L150	47.6	5000	142.4	0.750	1.45	4.45	8.95	13.4	17.9	22.4	26.9	53.7
	L190	54.0	5000	192.3	1.00	2.01	6.05	12.1	18.1	24.2	30.2	36.2	72.5
	L225	60.0	4200	263.5	1.38	2.76	8.30	16.5	24.8	33.0	41.3	49.6	99.0
	L050	16.0	18000	4.8	0.03	0.06	0.16	0.31	0.48	0.61	0.73	0.91	1.9
	L070	19.0	14000	7.5	0.04	0.08	0.24	0.47	0.71	0.94	1.17	1.41	2.8
	L075	22.2	11000	15.0	0.08	0.16	0.47	0.94	1.41	1.88	2.35	2.82	5.6
	L090	25.4	9000	24.5	0.13	0.26	0.78	1.55	2.32	3.09	3.86	4.63	9.2
URETHANE	L095	28.6	9000	32.0	0.17	0.34	1.01	2.01	3.02	4.03	5.03	6.04	12.1
	L099	30.2	7000	53.5	0.28	0.56	1.68	3.36	5.04	6.70	8.35	10.0	20.1

	L100	35.0	7000	70.5	0.37	0.74	2.21	4.42	6.65	8.87	11.1	13.3	26.5
	L110	41.3	5000	133.5	0.70	1.40	4.20	8.40	12.6	16.8	21.0	25.2	50.0
	L150	47.6	5000	214.0	1.12	2.24	6.71	13.4	20.1	26.8	33.5	40.2	80.5
	L190	54.0	5000	288.5	1.51	3.02	9.10	18.1	27.2	36.2	45.3	54.4	108.8
	L225	60.0	4200	395.0	2.07	4.14	12.40	24.8	37.3	49.7	62.1	74.5	149.0
	L050	16.0	18000*	5.7	0.03	0.06	0.18	0.36	0.54	0.72	0.90	1.08	2.1
	L070	19.0	14000*	12.8	0.07	0.13	0.40	0.80	1.32	1.61	2.02	2.42	4.8
	L075	22.2	11000*	25.6	0.14	0.28	0.80	1.60	2.40	3.20	4.00	4.80	9.7
	L090	25.4	9000*	44.2	0.23	0.46	1.39	2.77	4.16	5.55	6.95	8.35	16.6
HYTREL^®	L095	28.6	9000*	64.0	0.33	0.67	2.00	4.00	6.05	8.05	10.1	12.1	24.1
&	L099	30.2	7000*	89.0	0.47	0.93	2.80	5.60	8.40	11.2	14.0	16.8	33.5
BRONZE*	L100	35.0	7000*	128.1	0.67	1.34	4.03	8.05	12.0	16.1	20.1	24.2	48.3
	L110	41.3	5000*	256.0	1.34	2.68	8.05	16.1	24.1	32.2	40.2	48.3	96.6

	L150	47.6	5000*	419.0	2.19	4.38	13.10	26.3	39.5	52.6	65.7	78.9	158.0
	L190	54.0	5000*	529.0	2.78	5.54	16.60	33.2	49.9	66.5	83.1	99.7	200.0
	L225	60.0	4200*	712.0	3.75	7.50	22.50	45.0	67.5	90.0	112.5	135.0	270.0

Customers who purchase Cross Morse Elastomeric Jaw Couplings from Dai Hong Phat company are entitled to the following benefits:

– Cross Morse is a British brand specializing in industrial equipment, overload protection devices, various types of flexible couplings, and other specialized power transmission products. The Cross Morse/UK brand has demonstrated its products’ high quality and reputation in the UK and worldwide markets.
– Dai Hong Phat company collaborates with Cross Morse, an English manufacturer of high-quality power transmission equipment and specialized power transmission products.
– Dai Hong Phat company commits to providing 100% genuine products, with new quality, accompanied by clear certification and origin.
– The core value of the collaboration aims to bring significant benefits to customers in Vietnam regarding shaft coupling solutions. L Series Elastomeric Jaw Couplings distributed by Đại Hồng Phát are genuine products.
