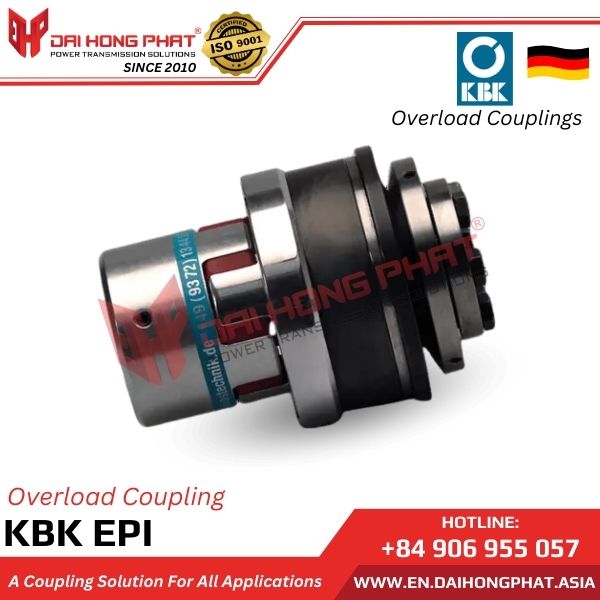

KBK EPI SAFETY COUPLING

The Safety Couplings KBK EPI features a torque range of 3 – 500 Nm, outer diameter ranging from 49 – 129 mm, and bore diameter from 6 – 55 mm. Widely utilized across various industries, including woodworking, cement, and food processing, this coupling ensures overload protection and precise torque transmission in light, medium, and heavy industrial production lines.

Description

5/5 - (1 vote)

1. Dai Hong Phat Corp. is the representative specializing in supplying all KBK Safety Coupling products throughout Vietnam:

– Established since 2003 and operating for over 18 years, KBK has expanded its presence in over 45 countries worldwide in the field of manufacturing industrial machinery parts.
– Dai Hong Phat has partnered with KBK, a leading European manufacturer of industrial machinery parts from Germany, renowned worldwide.
– We, at Dai Hong Phat, are the authorized importer and distributor of all 100% genuine KBK EPI Overload Coupling products in Vietnam.
– With over 15 years of commitment, Dai Hong Phat ensures that our customers purchase genuine 100% Safety Couplings KBK EPI with the highest quality and best prices in the market.

2. Characteristics of the Safety Couplings KBK EPI:

– The safety couplings KBK EPI are manufactured by KBK/Germany.
– Safety coupling, overload coupling with no harsh reaction
– Featuring a cylindrical lock connection and compact internal cone with high clamping force
– Torque range: 3 – 500 Nm
– Outer diameter: 49 – 129 mm
– Bore diameter: 6 – 55 mm
– Capable of effectively dampening vibrations, compensating for misalignment, and accommodating vertical shaft insertion
– The properties of the coupling can be customized compared to other couplings
– The KBK EPI coupling is a combination of optimized torques and adjustable properties to compensate for misalignment. Sprockets, chain discs, gears, or custom parts can be directly mounted on the flange interface with high precision.

View more product “Safety Couplings KBK EPA“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the Backlash-Free Torque Limiter KBK EPI:

The Backlash-Free Torque Limiter KBK EPI (Safety Coupling) is used across industries for precise torque transmission and overload protection. It’s found in industrial machinery, automated manufacturing, food processing, printing, material processing, automotive assembly lines, textile machinery, renewable energy systems, packaging equipment, and medical devices. It prevents damage from sudden overloads, ensuring smooth operation and component protection.

4. Technical of the Safety Couplings KBK EPI:

Catalogue Backlash-Free Torque Limiter KBK EPI				Installation Backlash-Free Torque Limiter KBK EPI

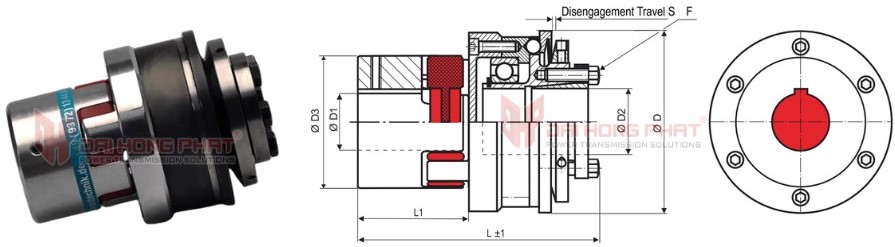

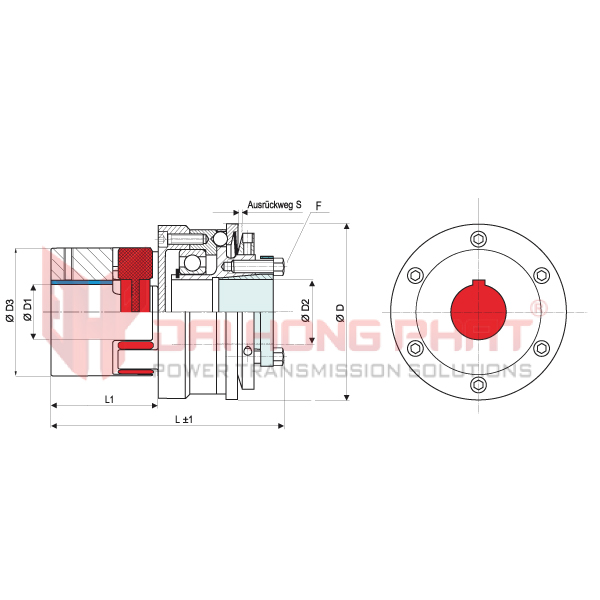

*Technical drawing of the Safety Couplings KBK EPI*

Size	Dimensions (mm)							Technical Data
	ØD	L	Ø D1	Ø D2	Ø D3	F	L1	max. speed	Mass	Torque 98 Sh TKN	Torque Range
	Outer Ø	Length	Bore Size (H7) min~max	Bore Size (H7) min~max		Screw ISO4017 TA (Nm)		(1/min)	(kg)	(Nm)	1 TKN (Nm)	2 TKN (Nm)
-14	49	65	6-16	6-14	30	M3	24	11690	0.22	12.5	3 – 7	5 – 10
				10#		2.1
-19	64	93	10-24	12-20	40	M5	41	8950	0.72	17	5 – 15	10 – 30
				14#		6
-24	79	112	16-28	15-25	55	M6	50	7630	1.3	60	12 – 35	20 – 60
				18#		8.5
-28	94	135	20-38	20-35	65	M6	59	6030	2.28	160	50 – 130	65 – 150
				27#		14
-38	119	151	20-45	25-50	80	M8	67	4980	4.6	325	60 – 200	150 – 300
				41#		20
-42	129	175	20-55	35-55	95	M8	76	4440	8.75	450	80 – 250	200 – 500
				45#		26

5. Why choose Dai Hong Phat Corp. as your supplier for KBK Safety Couplings?

– Our customers will have the opportunity to purchase genuine KBK shaft couplings imported directly from KBK Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine KBK Safety Coupling products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Safety Couplings KBK EPI products will be provided to our customers.
– With a readily available stock of KBK EPI Coupling, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine Overload Coupling products from the KBK brand.
– Our customers will receive the official KBK shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for Backlash-Free Torque Limiter products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.
