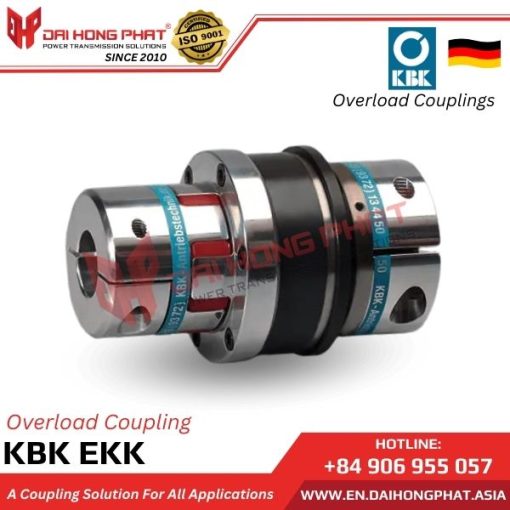

KBK EKK SAFETY COUPLING

The Safety Couplings KBK EKK provide reliable overload protection without harsh reactions. With excellent vibration reduction capabilities and the ability to compensate for shaft misalignment, these couplings ensure smooth operation and prolonged machinery lifespan. They are engineered to optimize torque distribution and can accommodate shaft misalignment, making them a versatile solution for various industrial applications.

Description

5/5 - (3 votes)

1. Dai Hong Phat Corp. is the representative specializing in supplying all KBK Safety Coupling products throughout Vietnam:

– Established since 2003 and operating for over 18 years, KBK has expanded its presence in over 45 countries worldwide in the field of manufacturing industrial machinery parts.
– Dai Hong Phat has partnered with KBK, a leading European manufacturer of industrial machinery parts from Germany, renowned worldwide.
– We, at Dai Hong Phat, are the authorized importer and distributor of all 100% genuine KBK EKK Overload Coupling products in Vietnam.
– With over 15 years of commitment, Dai Hong Phat ensures that our customers purchase genuine 100% Safety Couplings KBK EKK with the highest quality and best prices in the market.

2. Characteristics of the Safety Couplings KBK EKK:

– The Safety Couplings KBK EKK are manufactured by KBK/Germany
– Safe coupling, overload coupling with no reverse reaction
– Coupling with clamp hubs on both sides for quick and easy assembly
– Torque range: 3 – 500 Nm
– Outer diameter: 49 – 129 mm
– Bore diameter: 4 – 62 mm
– Operating environment: -30°C to +120°C
– Good vibration damping capability, can compensate for misalignment, can plug in vertically
– Properties of the coupling can be customized
– Overload protection coupling is a combination of optimized torques and the ability to compensate for misalignment. Sprockets, chain discs, gears, or custom parts can be directly mounted on the flange face coupling with high precision.

View more product “Safety Couplings KBK EAK“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the Safety Couplings KBK EKK:

Safety Couplings KBK EKK are commonly used in industrial machinery to prevent damage from overload situations. They find applications in manufacturing, conveyor systems, packaging equipment, material handling, printing, woodworking, metalworking, textile machinery, mining equipment, and renewable energy systems. Their primary function is to protect machinery and operators by disengaging or slipping when excessive force or torque is applied, preventing costly damage and downtime.

View more product “Safety Couplings KBK EAI“

4. Technical of the Safety Couplings KBK EKK:

Catalogue KBK EKK Overload Coupling				Installation KBK EKK Overload Coupling

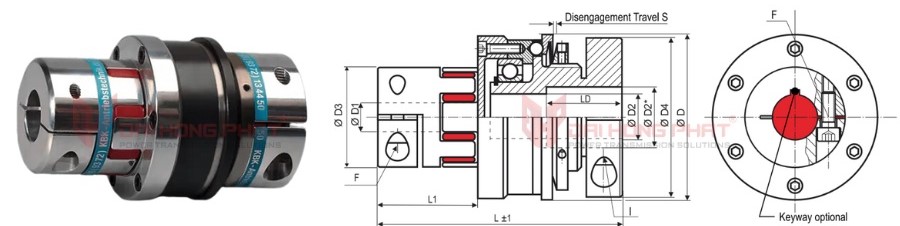

*Technical drawing of the Safety Couplings KBK EKK*

Size	Dimensions (mm)									Technical Data
	ØD	L	Ø D1	Ø D2	Ø D3	Ø D4	F	I	L1	max. speed	Mass	Torque 98 Sh TKN	Torque Range
	Outer Ø	Length	Bore Size (H7) min~max	Bore Size (H7) min~max			Screw ISO4762 TA (Nm)	Screw ISO4762 TA (Nm)		(1/min)	(kg)	(Nm)	1 TKN (Nm)	2 TKN (Nm)
-14	49	65	4-16	6-16	30	40.5	M3	M4	24	11690	0.24	12.5	3 – 7	5 – 10
				11#			1.4	5.1
-19	64	100	10-22	10-20	40	56	M6/11	M6	41	8950	0.79	17	5 – 15	10 – 30
		92		14#			M6/11	15	33
-24	79	126.5	15-32	12-28	55	66	M6/11	M8	50	7630	1.46	60	12 – 35	20 – 60
		116.5		21#			M6/11	36	40
-28	94	142	19-38	14-35	65	82	M8/25	M10	59	6030	3.1	160	50 – 130	65 – 150
		128		27#			M8/25	72	45
-38	119	160	20-45	30-50	80	110	M8/25	M12	67	4980	5.7	325	60 – 200	150 – 300
		146		41#			M10/49	125	59
-42	129	195	28-45	35-56	95	122	M10	M12	76	4440	8.5	450	80 – 250	200 – 500
