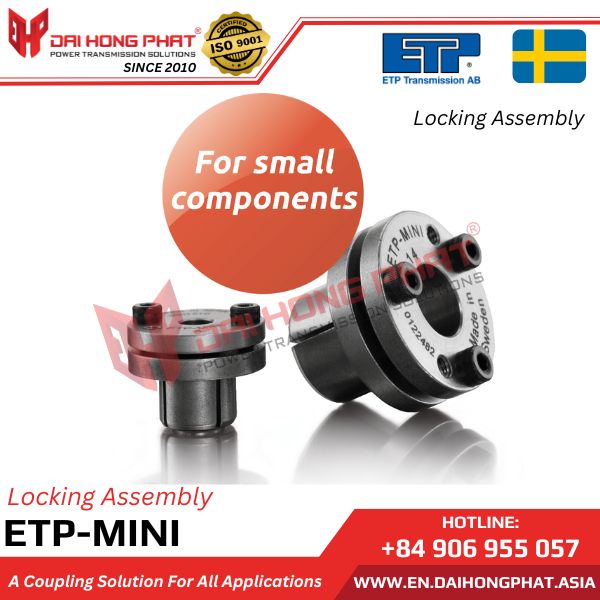

ETP-MINI HUB-SHAFT CONNECTIONS

1. Why choose Dai Hong Phat Corp as the supplier for ETP-HYLOC hub shaft connections?

– You will be purchasing ETP hub shaft connections directly imported from ETP Sweden by Dai Hong Phat.
– You can have absolute peace of mind as Đại Hồng Phát will protect you against counterfeit products, ensuring the authenticity of the ETP-MINI hub-shaft connections.
– Dai Hong Phat corp provides complete CO/CQ documentation for the ETP-MINI.
– Genuine ETP-MINI are always available in Dai Hong Phat’s warehouse, ensuring swift delivery to customers without delay.
– The technical drawing of the purchased ETP-MINI hub shaft connections will be provided upon request by Dai Hong Phat.
– Dai Hong Phat’s dedicated technical team is always available to provide attentive support and advice regarding the ETP hub shaft connections.
– We offer free consultation on optimal solutions for your plant’s needs with genuine ETP hub shaft connections.
– Dai Hong Phat provides customers with the official catalogue of ETP hub shaft connections.
– Customers will receive free customization of technical specifications and sizes of ETP hub shaft connections upon request.
– We offer nationwide delivery 24/7, minimizing downtime for customers.
– Our professional machining workshop can provide customized services tailored to your specific needs regarding genuine ETP-HYLOC hub shaft connections from ETP/Sweden.

2. Dai Hong Phat Corp. is the specialized representative providing a ETP-HYLOC products across Vietnam:

– Dai Hong Phat Company is the authorized distributor of ETP products from Sweden in Vietnam.
– We, at Dai Hong Phat, have committed to over 10 years of reliability, ensuring our customers can purchase genuine ETP-MINI Hub-Shaft Connections product with 100% quality assurance and the best prices on the market.

3. Characteristics of The ETP-MINI Locking Devices:

– The ETP-MINI Locking devices are manufactured by ETP in Sweden.
– They have a high radial load capacity.
– Quick and easy installation.
– Torque range from 7Nm to 66Nm.
– Available in standard shaft sizes ranging from 6mm to 14mm.
– Hexagonal head screws are available as accessories.
– Made of steel material (ETP-MINI made of stainless steel).
– It consists of two steel sleeves, partially grooved, and a clamping screw head cap.

View more product “ETP-CLASSIC Hub-Shaft Connections“

4. Applications of The ETP-MINI Hub-Shaft Connections:

The ETP-MINI shaft locking device is a mechanical connection – the best choice for quickly and easily assembling small components. The ETP-MINI surpasses traditional keyways or set screws as it provides an adjustable connection that eliminates backlash.
The ETP-MINI hub-shaft connections function similarly to other locking assemblies such as KTR, Ringfeder, and MAV. They are widely used in factories for applications including wheel hubs, levers, couplings, pulleys, sliding gear mechanisms, belt drums, running wheels, and cable drums.
For the stainless steel version of the ETP-MINI Typre R, it is suitable for use in the food and medical industries.

5. Technical of the ETP-MINI Hub-Shaft Connections:

Catalogue ETP-MINI				Installation ETP-MINI

Technical ETP-MINI
ETP MINI	Dimensions							Transmittable
	d	D	D1	D2	L	L1	L2	T	FA
6	6	14	25	18	10	19	22	7	2.5
1/4”	6.35	14	25	18	10	19	22	8	2.5
8	8	15	27	20	12	21.5	25.5	20	5
3/8”	9.525	16	28	21	14	24	28	28	6.5
10	10	16	28	21	14	24	28	34	6.5
11	11	18	30	23	14	25.5	29.5	36	6.5
12	12	18	30	23	14	25.5	29.5	40	6.5
1/2”	12.8	18	30	23	14	25.5	29.5	42	6.5
14	14	22	35	27	15	27.5	31.5	66	9.5

The benefits for customers when purchasing the ETP-MINI shaft locking device from Dai Hong Phat company are:

– Established since 1973 and operating for many years, ETP has developed strong expertise in coupling products for heavy industries.
– Dai Hong Phat has partnered with ETP from Sweden, a leading manufacturer of power transmission equipment in Europe and worldwide.
– Dai Hong Phat ensures that the ETP-MINI shaft locking device is 100% genuine, with new quality and clear certification and origin documentation.
– The core value of the cooperation is to bring significant benefits to customers in optimizing hydraulic coupling solutions with ETP products in Vietnam. The ETP-MINI Hub Shaft Connections is distributed by Dai Hong Phat as an official and genuine product.
