1. Why choose Dai Hong Phat Corp as the supplier for ETP-CLASSIC hub shaft connections?
– You will be purchasing ETP hub shaft connections directly imported from ETP Sweden by Dai Hong Phat.
– Dai Hong Phat Corp. will protect you against counterfeit products, ensuring the authenticity of the ETP-CLASSIC hub-shaft connections.
– Dai Hong Phat corp provides complete CO/CQ documentation for the ETP-CLASSIC.
– Genuine ETP-CLASSIC locking assembly are always available in Đại Hồng Phát’s warehouse, ensuring swift delivery to customers without delay.
– The technical drawing of the purchased ETP hub shaft connections will be provided upon request by Dai Hong Phat.
– Dai Hong Phat’s dedicated technical team is always available to provide attentive support and advice regarding the ETP-CLASSIC.
– We offer free consultation on optimal solutions for your plant’s needs with genuine ETP locking assembly.
– Dai Hong Phat provides customers with the official catalogue of ETP-CLASSIC.
– Customers will receive free customization of technical specifications and sizes of ETP-CLASSIC upon request.
– We offer nationwide delivery 24/7, minimizing downtime for customers.
– Our professional machining workshop can provide customized services tailored to your specific needs regarding genuine ETP locking assembly from ETP/Sweden.
2. Dai Hong Phat Corp. is the specialized representative providing all ETP-CLASSIC Hub-Shaft Connections products across Vietnam:
– Dai Hong Phat Corp is the authorized distributor of ETP Sweden in Vietnam.
– With over 15 years of reputation, Dai Hong Phat ensures customers can purchase genuine ETP-CLASSIC hub-shaft connections with 100% quality and the best prices on the market.

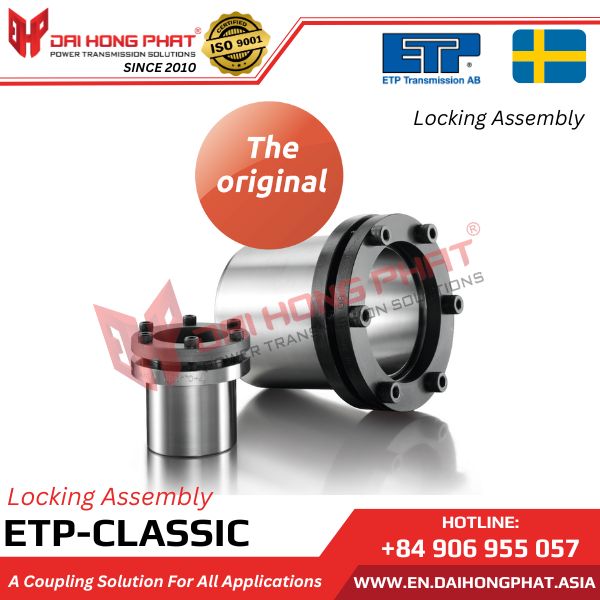

3. Characteristics of The ETP-CLASSIC Hub-Shaft Connections:
– The ETP-CLASSIC Locking Device are manufactured by ETP from Sweden.
– Operating temperature range: -30°C to +85°C.
– High radial load capacity.
– Quick installation and removal process.
– Excellent concentricity, with deviation ≤ 0.03mm – 0.06mm after multiple installations.
– Compact integrated size.
– Good adjustability of the center during installation.
– Low tightening torque and small number of screws make installation easy.
– Torque range from 55Nm to 15,500Nm.
– Available in standard shaft sizes of 15-40mm.
– Hexagonal head screws are available as accessories.
View more product “ETP-EXPRESS Hub-Shaft Connections“
| MỌI THẮC MẮC HOẶC YÊU CẦU BÁO GIÁ, QUÝ KHÁCH VUI LÒNG LIÊN HỆ: PHÒNG KINH DOANH HOTLINE: 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
4. Applications of the ETP-CLASSIC Locking Assembly:
The ETP-CLASSIC Hub Shaft Connections are competitive solutions for various standard needs. ETP-CLASSIC is widely used in many applications, including mounting timing pulleys, cam curves, and lever arms.
Positioning along and around the shaft is easy and quick with high precision. The service and maintenance are also swift, and disassembly is straightforward.
The ETP-CLASSIC functions similarly to KTR, Ringfeder, and MAV hub shaft connections. They are commonly used in factories for applications such as sprockets, lever arms, ratchets, pulleys, sliding gear mechanisms, belt drums, running wheels, and cable pulleys.
5. Technical of the ETP-CLASSIC Locking Assembly:
| Catalogue ETP-CLASSIC |
Installation ETP-CLASSIC |
||||||
 |
|
| Technical ETP-CLASSIC | ||||||||||
| ETP CLASSIC | Dimensions | Transmittable | ||||||||
| d | D | D1 | D2 | L | L1 | L2 | T | FA | FR | |
| 15 | 15 | 23 | 38 | 28.5 | 17 | 30 | 35 | 55 | 7.3 | 2.5 |
| 19 | 19 | 28 | 45 | 35 | 21 | 37 | 42 | 100 | 10.6 | 5.8 |
| 20 | 20 | 28 | 45 | 35 | 22 | 37 | 42 | 125 | 12.5 | 6.6 |
| 22 | 22 | 32 | 49 | 40 | 22 | 37 | 42 | 135 | 12.3 | 8.2 |
| 24 | 24 | 34 | 49 | 40 | 25 | 40 | 45 | 200 | 16.7 | 9.8 |
| 25 | 25 | 34 | 49 | 40 | 27 | 43 | 48 | 250 | 20.0 | 10.6 |
| 28 | 28 | 39 | 55 | 46 | 29 | 47 | 50 | 300 | 21.4 | 13.1 |
| 30 | 30 | 41 | 57 | 47.5 | 32 | 47 | 52 | 420 | 28.0 | 14.7 |
| 32 | 32 | 43 | 60 | 50.5 | 34 | 52 | 57 | 420 | 26.3 | 16.3 |
| 35 | 35 | 47 | 63 | 53.5 | 37 | 55 | 60 | 650 | 37.1 | 18.8 |
| 38 | 38 | 50 | 65 | 56 | 41 | 59 | 64 | 750 | 39.5 | 21.2 |
| 38 | 38 | 50 | 65 | 56 | 41 | 59 | 64 | 750 | 39.5 | 21.2 |
| 40 | 40 | 53 | 70 | 60.5 | 43 | 63 | 67 | 940 | 47.0 | 22.8 |
| 42 | 42 | 55 | 70 | 60.5 | 45 | 65 | 70 | 940 | 44.8 | 24.4 |
| 45 | 45 | 59 | 77 | 66.5 | 49 | 69 | 75 | 1290 | 57.3 | 26.9 |
| 48 | 48 | 62 | 80 | 69.5 | 52 | 73 | 79 | 1570 | 65.4 | 29.3 |
| 50 | 50 | 65 | 83 | 72.5 | 53 | 76 | 82 | 1900 | 76.0 | 30.9 |
| 55 | 55 | 71 | 88 | 78 | 59 | 82 | 88 | 2500 | 90.9 | 35.0 |
| 60 | 60 | 77 | 95 | 84.5 | 64 | 90 | 96 | 3400 | 113 | 39.1 |
| 65 | 65 | 84 | 102 | 91 | 68 | 96 | 102 | 3500 | 108 | 43.1 |
| 70 | 70 | 90 | 113 | 99 | 72 | 99 | 107 | 5200 | 149 | 47.2 |
| 75 | 75 | 95 | 118 | 104 | 85 | 114 | 122 | 6300 | 168 | 51.3 |
| 80 | 80 | 100 | 123 | 109 | 90 | 120 | 128 | 8800 | 220 | 55.0 |
| 85 | 85 | 106 | 129 | 115 | 95 | 125 | 133 | 8800 | 207 | 58.0 |
| 90 | 90 | 112 | 135 | 121 | 100 | 133 | 141 | 11000 | 244 | 60.0 |
| 95 | 95 | 120 | 143 | 129 | 105 | 139 | 147 | 12800 | 269 | 61.5 |
| 100 | 100 | 125 | 148 | 134 | 110 | 145 | 153 | 15500 | 310 | 62.0 |
The benefits of purchasing ETP-CLASSIC hub-shaft connections from Dai Hong Phat Company are as follows:
– Established since 1973 and with years of experience, ETP has made significant advancements in heavy-duty industrial coupling products.
– Dai Hong Phat has partnered with ETP from Sweden, a leading European and global manufacturer of power transmission equipment.
– We at Dai Hong Phat are committed to providing 100% genuine ETP-CLASSIC hub shaft connections, with new quality, certification, and clear origin of the product.
– Our core value is to bring substantial benefits to customers by offering optimized solutions for hydraulic coupling products in Vietnam. The ETP hub shaft connections distributed by Dai Hong Phat are genuine and authentic.
