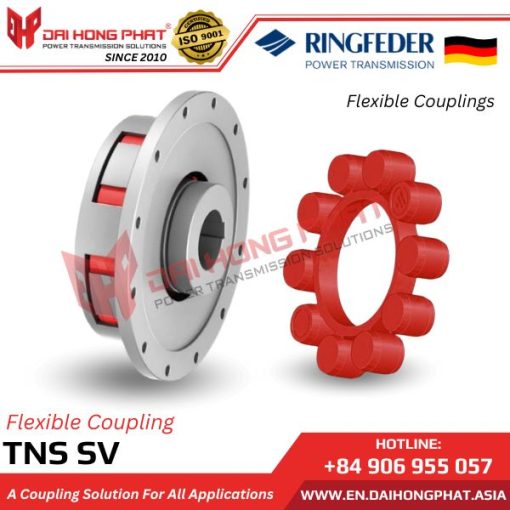

RINGFEDER FLEXIBLE COUPLINGS TNS SV

Ringfeder Flexible Couplings TNS SV are an extremely flexible elastomer jaw coupling, specifically designed for use with hydraulic couplings. It balances angular, radial, and axial misalignments within defined limits. The shaft coupling components are connected to form an intermediate elastic ring.

Dai Hong Phat Corp Shaft Coupling is an authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Description

5/5 - (1 vote)

Let’s learn about Ringfeder Flexible Couplings TNS SV with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings TNS SV products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See more: Other types of Ringfeder flexible shaft couplings

2. Characteristic of Flexible Couplings TNS SV:

– Flexible Couplings TNS SV are manufactured by Ringfeder/Germany.
– Suitable for temperatures ranging from -30°C to +100°C.
– Outer diameter up to 400 mm.
– Maximum bore diameter: 160 mm.
– Torque up to TKn = 8,900 Nm / TKmax = 26,700 Nm.
– Maximum speed up to n max = 7,250 revolutions per minute (rpm).
– Intermediate rings are loaded when compressed.
– Short flange design version.
– The Ringfeder TNS SV coupling is capable of rotating flexibly in all directions and compensating for angular, parallel, and axial misalignments of connected machines. The intermediate resilient rings absorb torsional impacts and vibrations, are oil-resistant, and largely unaffected by temperature. The resilient materials used operate reliably within the temperature range of -30°C to +100°C.
– The Ringfeder TNS SV with a short flange design version allows dangerous torsional vibrations from the machine’s operating range to be transferred to a speed range without any negative effects. The intermediate rings can be replaced after shifting the shaft with the installed shaft.

See more: Specifications of Ringfeder Elastomer Rings TNS (TsChan S)

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Ringfeder TNS SV Coupling:

Elastomer Jaw Couplings Ringfeder TNS SV are optimally utilized in various applications, such as power transmission components in construction machinery, steel plant technology, mining and cement industries, as well as connecting components in high-rise crane assemblies, containers, and casting processes.

4. Technical of Elastomer Jaw Couplings TNS SV:

Catalogue Ringfeder TNS SV Coupling				Installation Ringfeder TNS SV Coupling

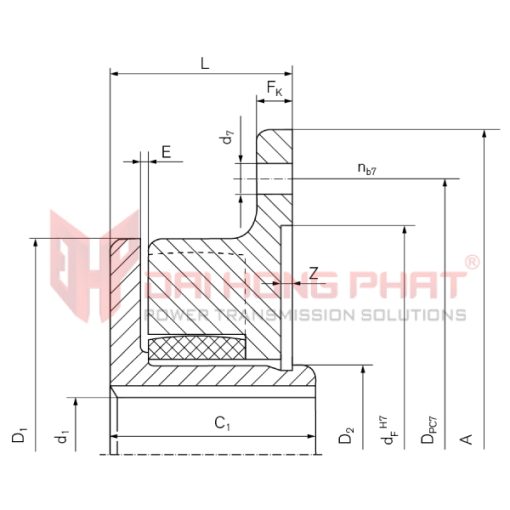

*Technical drawing of Elastomer Jaw Couplings TNS SV*

Ringfeder TNS SV coupling specifications:

Model	Identifier	T_KN	n_max	Dimensions [mm]				Gw_ub [kg]
Model	Identifier	Nm	1/min	d_1kmax	D1	D2	L	Gw_ub [kg]
SV-100	WS1410	70	7250	27	105	38	42	1.7
SV-125	WS1412	128	6000	34	126	48	47	2.8
SV-145	WS1414	220	5250	42	145	60	55	4.3
SV-170	WS1417	340	4500	58	170	82	60	6.8
SV-200	WS1420	590	3750	65	200	95	65	10.4
SV-230	WS1423	900	3250	70	230	102	70	13.4
SV-260	WS1426	1400	3000	90	260	130	85.5	22.8
SV-300	WS1430	2090	2500	105	300	147	100	36.2
SV-360	WS1436-0650	3450	2150	140	360	210	123	71.4
SV-360	WS1436-0750	3450	2150	140	360	210	125	75.4
SV-400	WS1440	4750	1900	160	400	230	125	94.4
SV-400	WS1440-0866	4750	1900	160	400	230	125	99.5
