2. Characteristics of Flexible Couplings TNR 2424.2:

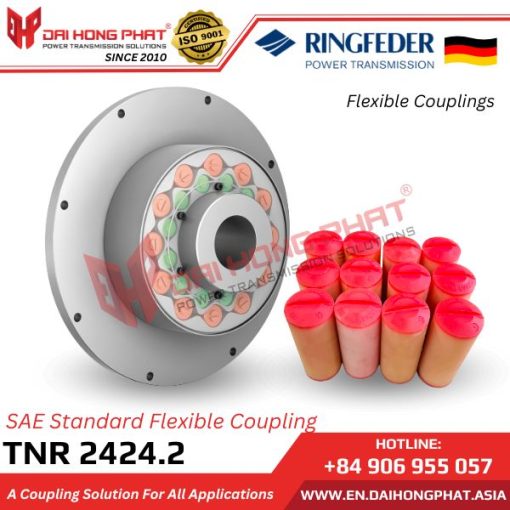

– Torsional Highflex Couplings TNR 2424.2 is manufactured by Ringfeder/Germany.
– Torsional flexibility: High torsional resilience.
– Torque [Nm]: 144 to 9600.
– Speed [rpm]: 1200 to 4750.
– Temperature range: -50°C to +230°C.
– The Ringfeder TNR 2424.2 coupling features two intertwined rubber rings connected to the flange coupling, allowing for easy replacement of the shock-absorbing rubber without the need to move other components along the shaft. It is specially designed and optimized for use primarily in internal combustion engines.
– This shaft coupling allows for flexible adjustment of the stiffness of the rubber element, promoting smoother operation and optimizing vibration control of the entire drive system.
– The stiffness of the coupling and shock-absorbing rubber is tailored to suit the corresponding drive conditions, achieved through specific selection and combination of suitable shock-absorbing rubber materials.
Reference: Ringfeder Elastomer Rings TNR Specifications
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of Ringfeder Flexible Couplings TNR 2424.2:
Torsional Highflex Couplings TNR 2424.2 is specially designed and optimized for use primarily in internal combustion engines. In such applications, dynamic disturbances arise from cyclic excitations and the utilization of a wide speed range. Therefore, it is necessary to mitigate unavoidable resonances by intentionally adjusting the stiffness.
4. Technical of Torsional Highflex Couplings TNR 2424.2:
| Catalogue Ringfeder TNR 2424.2 Coupling |
Installation Ringfeder TNR 2424.2 Coupling |
||||||
 |
|

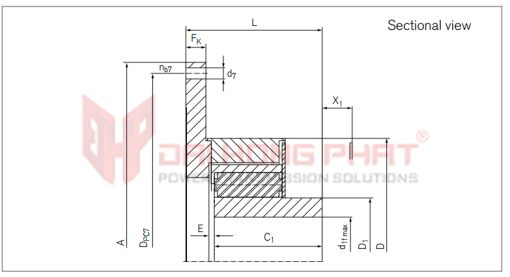

Technical specifications of TNR 2424.2 coupling:
| Couplings Model |
SAE size | d1f max | Dimensions [mm] | Gwub [kg] |
||||
| A | L | DPC7 | D | D1 | ||||
| 160.2 – 06.5 | 6.5 | 50 | 215.9 | 86 | 200 | 160 | 73 | 5 |
| 160.2 – 07.5 | 7.5 | 50 | 241.3 | 86 | 222.3 | 160 | 73 | 5.3 |
| 160.2 – 08.0 | 8 | 50 | 263.5 | 86 | 244.5 | 160 | 73 | 5.6 |
| 160.2 – 10.0 | 10 | 50 | 314.3 | 86 | 295.3 | 160 | 73 | 6.5 |
| 200.2 – 07.5 | 7.5 | 70 | 222.3 | 115 | 213.3 | 200 | 100 | 10.1 |
| 200.2 – 08.0 | 8 | 70 | 263.5 | 115 | 244.5 | 200 | 100 | 10.5 |
| 200.2 – 10.0 | 10 | 70 | 314.3 | 115 | 295.3 | 200 | 100 | 11.6 |
| 200.2 – 11.5 | 11.5 | 70 | 352.4 | 115 | 333.7 | 200 | 100 | 12.5 |
| 260.2 – 10.0 | 10 | 90 | 314.3 | 147 | 295.3 | 260 | 129 | 21.9 |
| 260.2 – 11.5 | 11.5 | 90 | 352.4 | 147 | 333.7 | 260 | 129 | 23.2 |
| 260.2 – 14.0 | 14 | 90 | 466.7 | 147 | 438.2 | 260 | 129 | 27.3 |
| 260.2 – 16.0 | 16 | 90 | 517.5 | 147 | 489 | 260 | 129 | 29.7 |
| 320.2 – 14.0 | 14 | 115 | 466.7 | 177 | 438.2 | 320 | 165 | 47.4 |
| 320.2 – 16.0 | 16 | 115 | 517.5 | 177 | 489 | 320 | 165 | 50.5 |
| 320.2 – 18.0 | 18 | 115 | 571.5 | 177 | 542.9 | 320 | 165 | 56.9 |
| 400.2 – 16.0 | 16 | 145 | 517.5 | 216 | 489 | 400 | 208 | 83.4 |
| 400.2 – 18.0 | 18 | 145 | 571.5 | 216 | 542.9 | 400 | 208 | 87.1 |
| 400.2 – 21.0 | 21 | 145 | 673.1 | 216 | 641.4 | 400 | 208 | 94.7 |
| 400.2 – 24.0 | 24 | 145 | 733.4 | 216 | 692.2 | 400 | 208 | 99.2 |
| 500.2 – 21.0 | 21 | 185 | 673.1 | 276 | 641.4 | 500 | 268 | 172 |
| 500.2 – 24.0 | 24 | 185 | 733.4 | 276 | 692.2 | 500 | 268 | 176 |
| 640.2 – 24.0 | 24 | 230 | 733.4 | 360 | 692.2 | 640 | 335 | 340 |
