RINGFEDER FLEXIBLE COUPLINGS TNM NOR-MEX LG

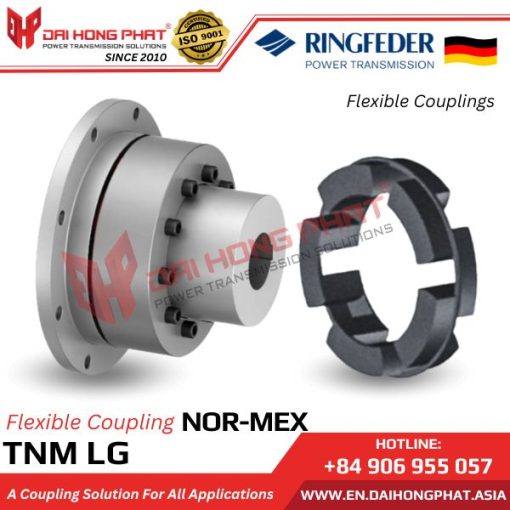

The Flexible Couplings TNM Nor-mex LG facilitate the replacement of intermediate rings without axial movement of the drive components using flange faces, externally centered. The coupling is capable of transmitting torque through resilient buffer sets.

Dai Hong Phat Shaft Coupling is the authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Description

5/5 - (1 vote)

Let’s learn about Ringfeder Flexible Couplings TNM Nor-mex LG with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings TNM LG products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See more: Other types of Ringfeder flexible shaft couplings

2. Characteristics of Ringfeder Flexible Couplings TNM Nor-mex LG:

– Flexible Couplings TNM Nor-mex LG are manufactured by Ringfeder/Germany.
– Torque [Nm]: 41,000 to 97,500.
– Speed [rpm]: 5,000.
– Temperature range: -30°C to +100°C.
– Maximum bore diameter: 260 mm.
– Twist flexibility, compensating for angular, radial, and axial misalignment.
– Intermediate rings are loaded during compression.
– Resilient material available in various shore hardness levels.
– Resilient rings can be replaced without the need to move the connected machinery.
– The Ringfeder TNM Nor-Mex LG coupling is a flexible, torsionally resilient coupling that compensates for defined angular, radial, and axial misalignments. Torque transmission occurs through resilient buffer sets loaded during compression.
These buffers are made of synthetic rubber (Pb) and are interconnected to form an intermediate ring. The buffers dampen vibrations and torsional oscillations, are oil-resistant, and conductive. One half of the coupling consists of two parts, allowing easy separation of the connected machinery. One half of the coupling can be removed radially. The buffers can be replaced without moving the machinery.
– With a 3-part design, the Ringfeder TNM LG coupling allows for intermediate ring replacement without axial movement of the drive components via flange faces, externally centered. It has the flexibility to rotate in any direction, compensating for angular, parallel, and axial misalignments of the connected machinery. The intermediate rings have different shore hardness levels: standard Pb72 and hard Pb82.
– Thanks to the coupling’s torsional recovery capability, dangerous torsional oscillations from the machinery’s operational threshold can be transitioned to the rotational speed threshold without any negative impact.

See article: What is a flexible shaft coupling? Common types of flexible shaft couplings

Reference: Ringfeder Rubber Elements TNM Nor-mex Specifications

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Elastomer Jaw Couplings TNM LG:

Elastomer Jaw Couplings TNM LG are used in various common applications including: construction, cement plants, steel mills, material handling, industrial pumps, air compressors, crane shafts, cable reels, in thermal power plants, hydroelectric plants, and more.

4. Technical of Elastomer Jaw Couplings TNM LG:

Catalogue Ringfeder TNM LG				Installation Ringfeder TNM LG

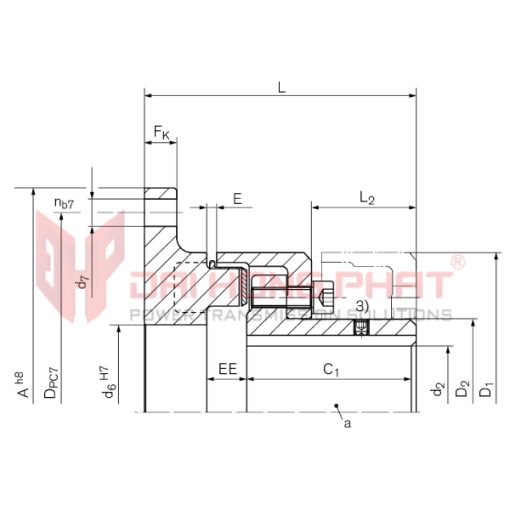

*Technical drawing of Elastomer jaw couplings TNM LG*

Ringfeder TNM Nor-mex LG coupling specifications:

Model	Identifier	Torque [Nm]		nmax 1/min	Dimensions [mm]					Gw (kg)
Model	Identifier	Pb72	Pb82	nmax 1/min	d1_max	D1	D2	L	L2	Gw (kg)
TNM LG 82	WN0908-120	48	75	5000	32	82	44.5	68	20	1.8
TNM LG 97	WN0909-144	96	150	5000	39	97	54.5	83	30.5	2.9
TNM LG 112	WN0911-158	150	230	5000	46	112	64.5	95	32.5	4.4
TNM LG 128	WN0912-180	250	380	5000	53	128	74.5	109	42	6.7
TNM LG 148	WN0914-200	390	600	4500	65	148	92.5	124	47	9.8
TNM LG 168	WN0916-220	630	980	4000	75	168	104.5	142	52.5	14
TNM LG 194	WN0919-248	1050	1650	3500	85	194	121.5	159	60	21
TNM LG 214	WN0921-274	1500	2400	3000	95	214	135.5	175	66.5	27.9
TNM LG 240	WN0924-314	2400	3700	2750	100	240	146	192	75.5	37.6
TNM LG 265	WN0926-344	3700	5800	2500	115	265	164	220	88	53.4
TNM LG 295	WN0929-380	4900	7550	2250	130	295	181	236	96	70.2
TNM LG 330	WN0933-430	6400	9900	2000	135	330	208	252	101.5	91.7
TNM LG 370	WN0937-480	8900	14000	1750	160	370	241	281	117	126
TNM LG 415	WN0941-575	13200	20500	1500	180	415	275	306	131	183.9
TNM LG 480	WN0948-615	1800	28000	1400	200	480	289	330	149	244.7
TNM LG 575	WN0957-692	27000	41000	1200	260	575	368	350	168	370.1
