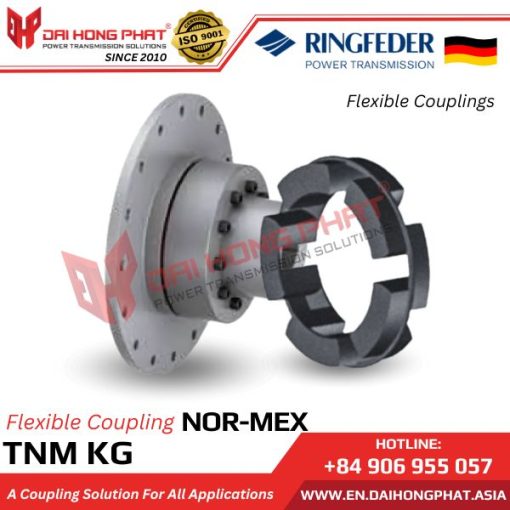

RINGFEDER FLEXIBLE COUPLINGS TNM NOR-MEX KG

Ringfeder Flexible Couplings TNM Nor-mex KG (Flexible Couplings TNM KG) are designed with 2 identical rings for elasticity when rotating, safety in case of failure, allowing compensation of shaft misalignment. There are couplings that transmit torque through elastic counters. The washers reduce shock and vibration. The shaft couplings are oil resistant and conductive.

Dai Hong Phat Shaft Coupling is the authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Category: Ringfeder Flexible Couplings Tags: Authorized Distributor, Ringfeder TNM Couplings, Ringfeder Gerrmany, TNM KG Elastomer Coupling, TNM Nor-mex KG Elastomer Coupling, TNM Nor-mex Couplings, Ringfeder Elastomer Couplings, Elastomer Couplings, Ringfeder Couplings, Couplings, Ringfeder Vietnam, Flexible couplings

Description

5/5 - (1 vote)

Let’s learn about Ringfeder Flexible Couplings TNM Nor-mex KG with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings TNM Nor-Mex KG products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See more: Other types of Ringfeder flexible shaft couplings

2. Characteristics of Ringfeder Flexible Couplings TNM Nor-mex KG:

– Manufacturer: Ringfeder/Germany
– Temperature range: -40°C to + 60°C
– Designed with two identical parts.
– Rubber shock absorber gaskets with different hardnesses: standard Pb75, high hardness Pb82.
– TNM Nor-Mex KG is a flexible, puncture-resistant torsion joint. Compensates for angular, radial and axial misalignments within defined limits. The shaft coupling transmits torque through elastic buffers during compression. The torsional vibration and shock absorbing washers provide good resistance to oil and electrical conductivity.
– Ringfeder TNM Nor-Mex KG couplings are resilient in rotation, fail-safe, and allow for compensation of shaft misalignments. Widely used to compensate for shaft misalignments in all directions and to transfer important torsional vibrations from the operating range of the machine to areas where they do not adversely affect the transmission system.

See article: What is a flexible shaft coupling? Common types of flexible shaft couplings

Reference: Ringfeder Rubber Elements TNM Nor-mex Specifications

FOR ANY QUESTIONS OR QUOTATION REQUESTS, PLEASE CONTACT US:
SALES DEPARTMENT
HOTLINE: 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Flexible Couplings TNM Nor-mex KG in operations:

Ringfeder TNM Nor-Mex KG (TNM KG) elastomer couplings are used in many common applications: Construction, cement plants, steel plants, Material handling, industrial pumps, air compressors, cranes, cable reels, in thermal power plants, hydropower plants,…

4. Technical specifications of Ringfeder TNM Nor-Mex KG shaft couplings:

Catalogue TNM Nor-Mex KG Elastomer Coupling				Installation Instruction TNM Nor-Mex KG Elastomer Coupling

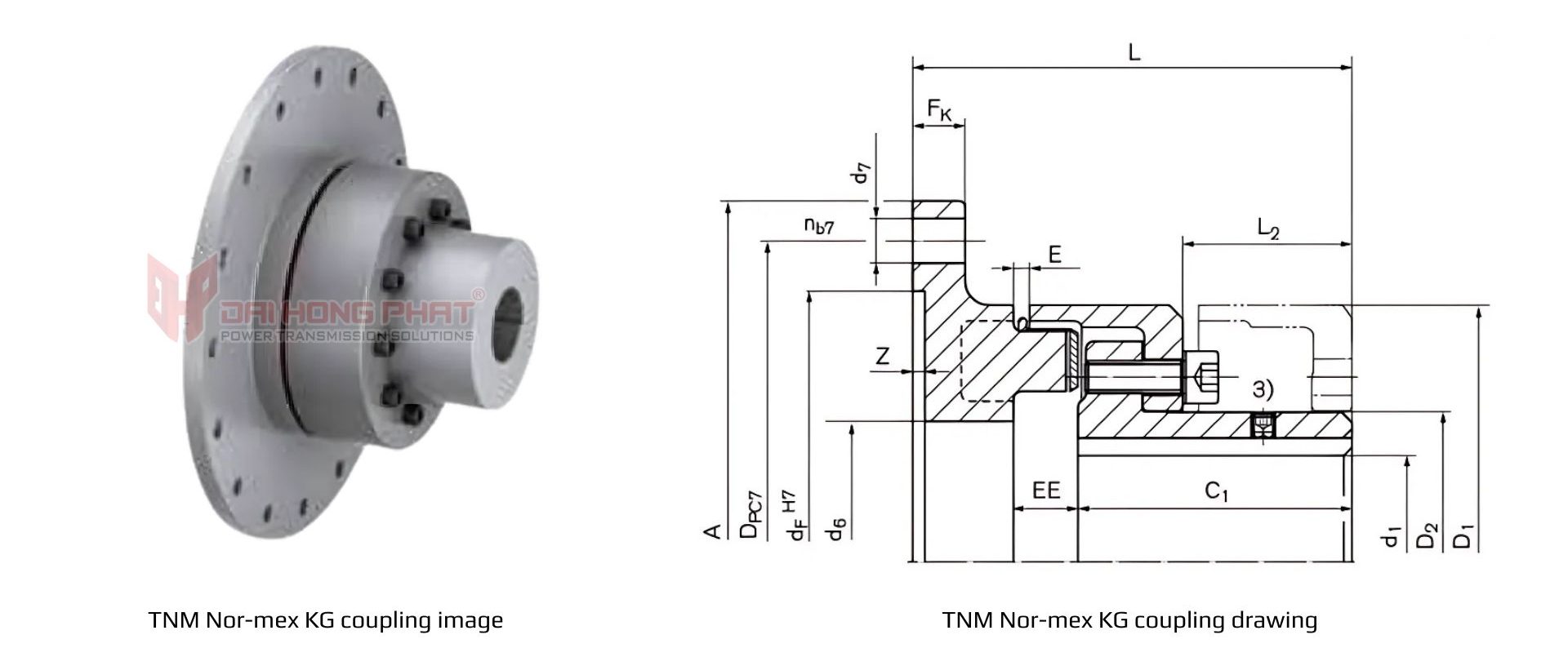

tnm-nor-mex-kg-coupling-drawing

Model	T_KN	n_max	Dimension [mm]	Dimensions [mm]					Gw [kg]
Model	Nm	1/min	d1_max	A	D1	D2	L	L2	Gw [kg]
TNM KG 168-254	980	4000	75	254	168	104.5	142	52.5	14.6
TNM KG 194-290	1650	3500	85	290	194	121.5	159	60	22.1
TNM KG 214-334	2400	3000	95	334	214	135.5	175	66.5	30.1
TNM KG 240-390	3700	2750	100	390	240	146	192	75.5	41.9
TNM KG 265-470	5800	2500	115	470	265	164	220	88	62.7

5. Why choose Dai Hong Phat Corp?

100% genuine products imported directly from Ringfeder Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.

—————-/—————–/—————–/—————–/—————–

With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
