Let’s learn about Ringfeder Flexible Couplings TNM LE with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings TNM LE products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

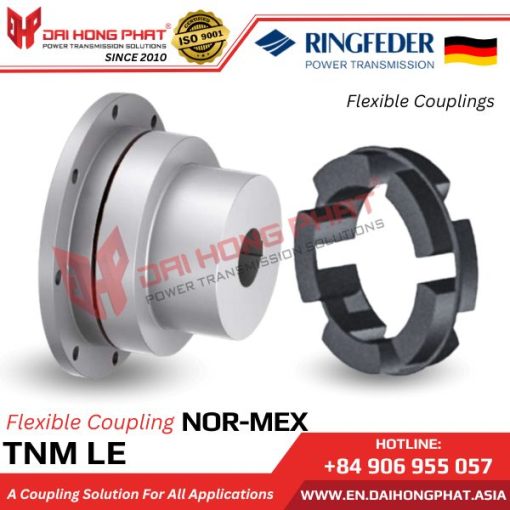

2. Characteristics of Flexible Couplings TNM LE:
– Flexible Couplings TNM LE are manufactured by Ringfeder/Germany.
– Torque [Nm]: 41,000 to 97,500.
– Speed [rpm]: 5,000.
– Temperature range: -30°C to +100°C.
– Fixed torsion, compensates for angular misalignment, parallel misalignment, and axial displacement.
– Individual pre-compressed buffers are connected to an intermediate ring.
– The intermediate ring’s resilience changes with the movement of the connected components.
– The Ringfeder TNM Nor-Mex LE helps balance angular misalignment, parallel misalignment, and axial displacement within a defined tolerance range. The coupling transmits torque through resilient buffers, compressed with synthetic rubber (Perbunan; Pb), interconnected to form an intermediate ring.
– The shaft coupling can be used as a drive and output coupling for gears, in pumps, and in the transmission of screw compressors as well as in combined heat and power plants.
– The intermediate resilient rubber buffers help reduce torsional impacts and vibrations while also providing electrical insulation. Thus, it prevents unwanted electrostatic buildup. The coupling can be used in all rotational directions and installation positions. Resilient material replacement is easy.
See article: What is a flexible shaft coupling? Common types of flexible shaft couplings
Reference: Ringfeder Rubber Elements TNM Nor-mex Specifications
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of Ringfeder TNM LE Coupling:
The Ringfeder TNM Nor-Mex LE coupling is widely used in various applications including: construction, cement plants, steel mills, material handling, industrial pump systems, air compressors, shafts, cable reels, thermal power plants, hydroelectric plants,…
4. Technical of Ringfeder Elastomer Jaw Couplings TNM LE:
| Catalogue Ringfeder Ringfeder TNM LE |
Installation Ringfeder Ringfeder TNM LE |
||||||
 |
|

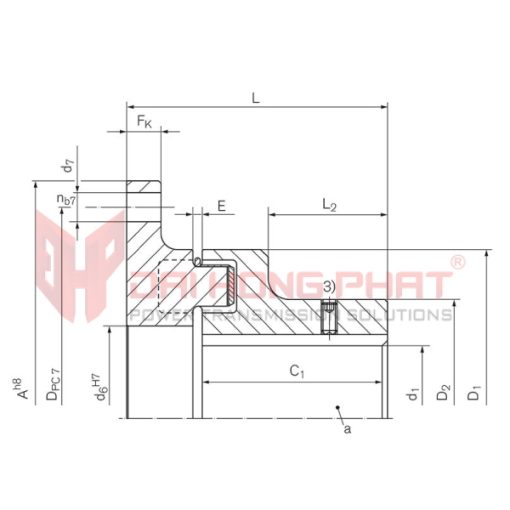

Ringfeder TNM LE coupling specifications:
| Coupling Model |
Identifier | TKN Pb72 | TKN Pb82 | nmax | Dimensions [mm] | Gwub [kg] |
|||
| Nm | Nm | 1/min | d1 | D1 | D2 | L | |||
| TNM LE-67 | WN0806-106 | 22 | 35 | 5000 | 28 | 67 | 46 | 47.5 | 1 |
| TNM LE-82 | WN0808-120 | 48 | 75 | 5000 | 32 | 82 | 53 | 59 | 2.6 |
| TNM LE-97 | WN0809-144 | 96 | 150 | 5000 | 45 | 97 | 69 | 73 | 2.9 |
| TNM LE-112 | WN0811-158 | 150 | 230 | 5000 | 48 | 112 | 79 | 85.5 | 4.2 |
| TNM LE-128 | WN0812-180 | 250 | 380 | 5000 | 55 | 128 | 90 | 98.5 | 6.6 |
| TNM LE-148 | WN0814-200 | 390 | 600 | 4500 | 65 | 148 | 107 | 111.5 | 9.4 |
| TNM LE-168 | WN0816-220 | 630 | 980 | 4000 | 75 | 168 | 124 | 127.5 | 13.9 |
| TNM LE-194 | WN0819-248 | 1050 | 1650 | 3500 | 85 | 194 | 140 | 141.5 | 20.3 |
| TNM LE-214 | WN0821-274 | 1500 | 2400 | 3000 | 95 | 214 | 157 | 156 | 27.9 |
| TNM LE-240 | WN0824-314 | 2400 | 3700 | 2750 | 110 | 240 | 179 | 169 | 38.5 |
| TNM LE-265 | WN0826-344 | 3700 | 5800 | 2500 | 120 | 265 | 198 | 195.5 | 53.1 |
| TNM LE-295 | WN0829-380 | 4900 | 7550 | 2250 | 130 | 295 | 214 | 210 | 68.6 |
| TNM LE-330 | WN0833-430 | 6400 | 9900 | 2000 | 150 | 330 | 248 | 224 | 94.6 |
| TNM LE-370 | WN0837-480 | 8900 | 14000 | 1750 | 170 | 370 | 278 | 250 | 103.1 |
| TNM LE-415 | WN0841-575 | 13200 | 20500 | 1500 | 190 | 415 | 315 | 273 | 185.1 |
| TNM LE-480 | WN0848-615 | 18000 | 28000 | 1400 | 210 | 480 | 315 | 293 | 226.8 |
| TNM LE-575 | WN0857-692 | 27000 | 41000 | 1200 | 230 | 575 | 350 | 313 | 308.2 |
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from Ringfeder Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
