RINGFEDER FLEXIBLE COUPLINGS TNM GTW1/GTW2

Ringfeder Flexible Couplings TNM GTW1/GTW2 are a flexible and shock-absorbing coupling with detachable brake discs. They compensate for angular misalignment as well as axial and radial displacement within a fixed tolerance range. Torque is transmitted through a resilient intermediate ring. This ring is made of Pb with nitrile rubber as the base material to dampen shocks and vibrations.

Dai Hong Phat Shaft Coupling is the authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Category: Ringfeder Flexible Couplings Tags: Dai Hong Phat, Ringfeder Germany, Ringfeder TNM, Ringfeder Vietnam, Ringfeder TNM GTW coupling, Elastomer Jaw Couplings TNM GTW

Description

5/5 - (1 vote)

Let’s learn about Ringfeder Flexible Couplings TNM GTW1/GTW2 with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings TNM GTW1/GTW2 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See more: Other types of Ringfeder flexible shaft couplings

2. Characteristics of Flexible Couplings TNM GTW1/GTW2:

– Flexible Couplings TNM GTW1/GTW2 are manufactured by Ringfeder/Germany.
– Torque [Nm]: 20,500 to 49,000.
– Speed [rpm]: 4,580.
– Temperature range: -30°C to +100°C.
– Maximum bore diameter: 180 mm.
– Torsional flexibility, compensating for angular, radial, and axial misalignment.
– Intermediate rings are loaded during compression.
– Resilient material available in various hardness levels.
– As a shock-resistant and flexible torsion coupling with brake discs, the detachable claw rings. The Ringfeder TNM GTW coupling helps compensate for angular, radial, and axial misalignment within fixed tolerances. Torque is transmitted through an over-torque resilient ring. The resilient intermediate ring is made of synthetic rubber for damping vibrations and torsional oscillations, and it is resistant to oil and electrically conductive, preventing unwanted static charges, among other things.
– The shaft coupling can be used for both directions of rotation and can be installed in any position. One coupling half consists of a hub and a bolt-on claw ring, making it easy to separate the coupled machines. With the claw rings opened up and slid back, the direction of rotation of the drive can be checked.

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Elastomer Jaw Couplings TNM GTW1/GTW2:

Ringfeder Elastomer Jaw Couplings TNM GTW are used in various common applications: construction, cement plants, steel mills, material handling, industrial pumps, air compressors, shaft hoists, cable winding drums, thermal power plants, hydroelectric plants, etc.

See article: What is a flexible shaft coupling? Common types of flexible shaft couplings
Reference: Ringfeder Rubber Elements TNM Nor-mex Specifications

4. Technical of Ringfeder TNM GTW1/GTW2 Coupling:

Catalogue Ringfeder TNM GTW Coupling				Installation Ringfeder TNM GTW Coupling

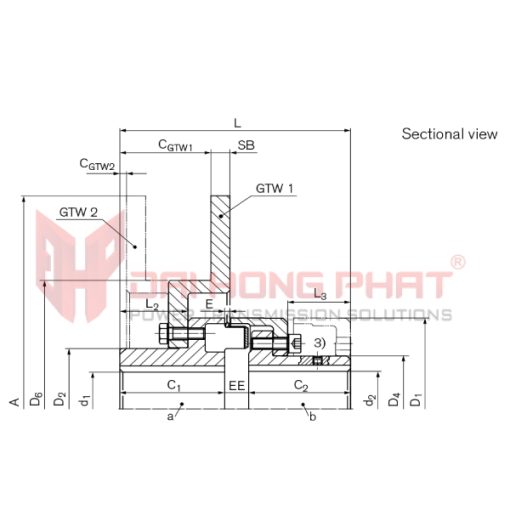

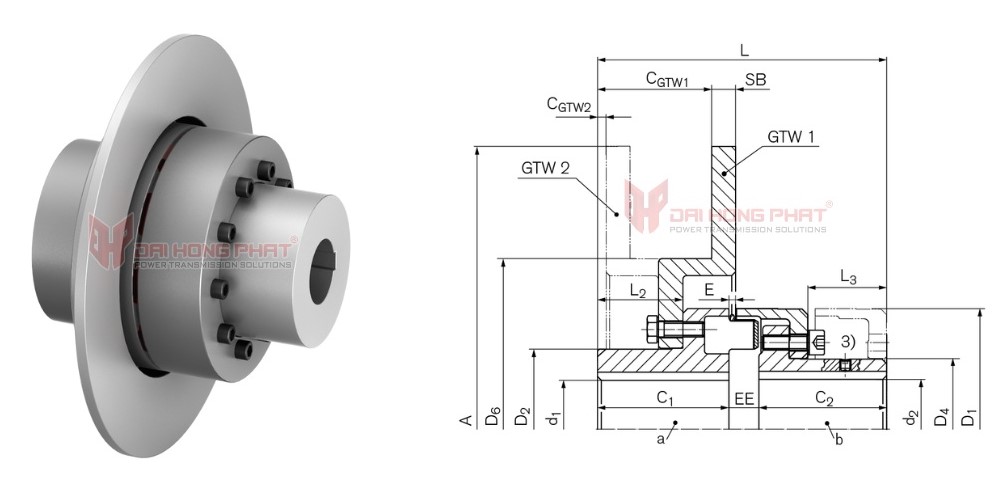

*Technical drawing of Elastomer Jaw Couplings TNM GTW*
