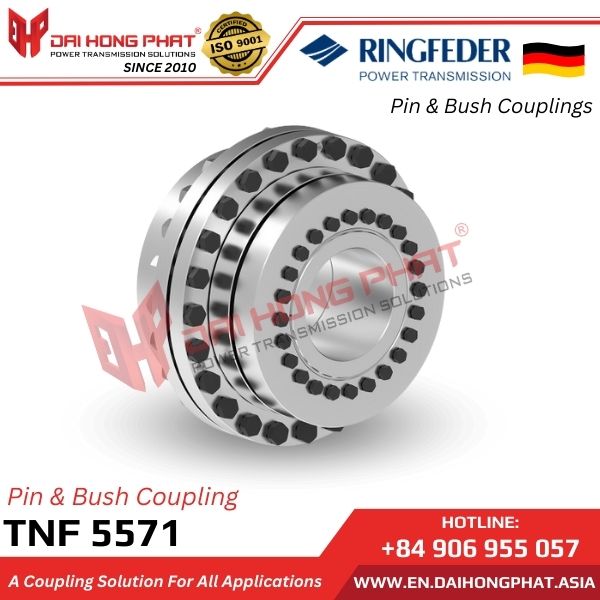

Let’s learn about Ringfeder Pin and Bush Coupling TNF 5571 with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Pin and Bush Coupling TNF 5571 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
2. Characteristics of the Pin And Bush Coupling TNF 5571 :
– Pin And Bush Coupling TNF 5571 are manufactured by Ringfeder/Germany.
– External or internal clamping.
– Shaft diameter dw: 70-540 mm.
– Outer diameter A: 240-1,200 mm.
– Total length L total: 150-750 mm.
– Torque T: 6,900-2.2 Mio. Nm.
Classification:
– Version A – Shink discs with hexagon head screws (HM = External centering; HF = Internal centering)
– Version B – Shink discs with hexagon head screws (HM = External centering; HF = Internal centering)
Advantages:
– No backlash, wear and maintenance
– Robust connection with high strength reserve
– Direct transmission of forces between shaft and flange
– Highest concentricity
– Easy installation and disassembly
The TNF 5571 coupling is ATEX-compliant according to Product Directive 2014/34/EU and DIN EN ISO 80079-36:2016.
View more product “Elastomer Jaw Couplings GWE 5512“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of Ringfeder TNF 5571:
The Flange Couplings TNF 5571 is widely used in various applications such as mining companies, plant manufacturers, gearbox manufacturers, etc.

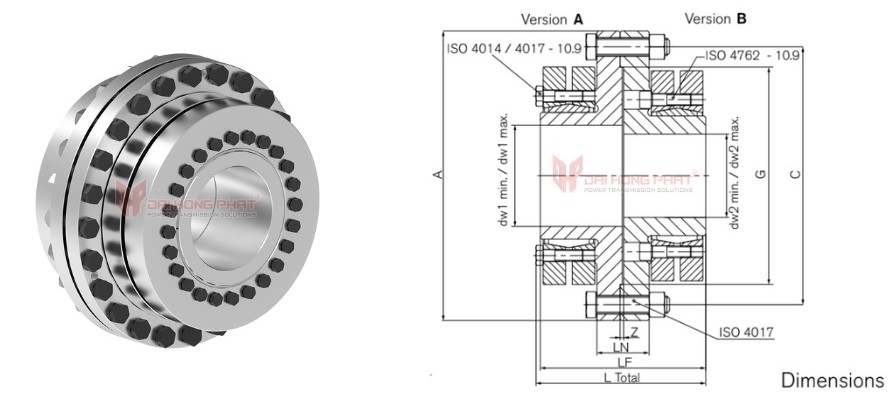

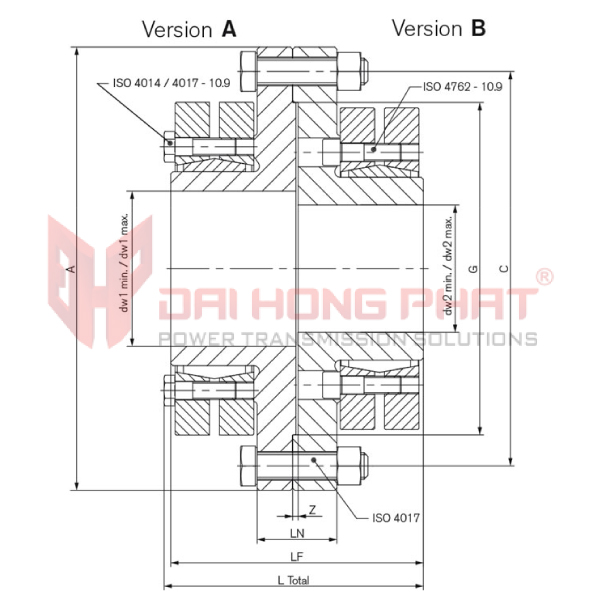

4. Technical drawing of the Flange Couplings TNF 5571:
| Catalogue Ringfeder TNF 5571 |
Installation Ringfeder TNF 5571 |
||||||
 |
|
| Coupling Model |
Dimensions [mm] | Shrink Discs | Gw | |||||||||
| dw1 | dw2 | A | C | G | LF | T | SDD | nSD | DSD | TA | [kg] | |
| TNF 75 | 70 | 70 | 240 | 210 | 170 | 136 | 6980 | 100×170 | 12 | 8 | 30 | 26 |
| 75 | 75 | 7600 | 100×170 | 12 | 8 | 30 | ||||||
| 80 | 80 | 9100 | 100×170 | 12 | 8 | 30 | ||||||
| TNF 90 | 70 | 70 | 305 | 265 | 215 | 160 | 6980 | 100×170 | 12 | 8 | 30 | 48 |
| 75 | 75 | 7600 | 100×170 | 12 | 8 | 30 | ||||||
| 80 | 80 | 9100 | 100×170 | 12 | 8 | 30 | ||||||
| >80 | >80 | 9250 | 125×215 | 12 | 10 | 59 | ||||||
| 90 | 90 | 13100 | 125×215 | 12 | 10 | 59 | ||||||
| 100 | 100 | 17850 | 125×215 | 12 | 10 | 59 | ||||||
| TNF 100 | 90 | 90 | 340 | 286 | 230 | 190 | 13700 | 130×215 | 12 | 10 | 59 | 63 |
| 95 | 95 | 15800 | 130×215 | 12 | 10 | 59 | ||||||
| 100 | 100 | 18200 | 130×215 | 12 | 10 | 59 | ||||||
| 140×230 | ||||||||||||
| >100 | >100 | 17550 | 140×230 | 10 | 12 | 100 | ||||||
| 110 | 110 | 22900 | 140×230 | 10 | 12 | 100 | ||||||
| 115 | 115 | 25830 | 140×230 | 10 | 12 | 100 | ||||||
| TNF 120 | 95 | 95 | 400 | 356 | 300 | 228 | 15100 | 140×230 | 10 | 12 | 100 | 120 |
| 105 | 105 | 20000 | 140×230 | 10 | 12 | 100 | ||||||
| 115 | 115 | 25850 | 140×230 | 10 | 12 | 100 | ||||||
| >115 | >115 | 31450 | 165×290 | 8 | 16 | 250 | ||||||
| 125 | 125 | 39400 | 165×290 | 8 | 16 | 250 | ||||||
| 135 | 135 | 49450 | 165×290 | 8 | 16 | 250 | ||||||
| TNF 130 | 115 | 115 | 400 | 356 | 300 | 228 | 31450 | 165×290 | 8 | 16 | 250 | 120 |
| 125 | 125 | 39400 | 165×290 | 8 | 16 | 250 | ||||||
| 135 | 135 | 49450 | 165×290 | 8 | 16 | 250 | ||||||
| >135 | >135 | 45500 | 175×300 | 8 | 16 | 250 | ||||||
| 137.5 | 137.5 | 47550 | 175×300 | 8 | 16 | 250 | ||||||
| 140 | 140 | 49700 | 175×300 | 8 | 16 | 250 | ||||||
| TNF 150 | 125 | 125 | 475 | 420 | 350 | 278 | 36650 | 175×300 | 8 | 16 | 250 | 215 |
| 130 | 130 | 41550 | 175×300 | 8 | 16 | 250 | ||||||
| 140 | 140 | 49700 | 175×300 | 8 | 16 | 250 | ||||||
| >140 | >140 | 65950 | 195×350 | 12 | 16 | 250 | ||||||
| 150 | 150 | 77600 | 195×350 | 12 | 16 | 250 | ||||||
| 165 | 165 | 96900 | 195×350 | 12 | 16 | 250 | ||||||
| TNF 165 | 140 | 140 | 510 | 440 | 370 | 314 | 65950 | 195×350 | 12 | 16 | 250 | 270 |
| 150 | 150 | 77600 | 195×350 | 12 | 16 | 250 | ||||||
| 165 | 165 | 96900 | 195×350 | 12 | 16 | 250 | ||||||
| >165 | >165 | 103200 | 220×370 | 15 | 16 | 250 | ||||||
| 170 | 170 | 110650 | 220×370 | 15 | 16 | 250 | ||||||
| 180 | 180 | 126450 | 220×370 | 15 | 16 | 250 | ||||||
| TNF 180 | 160 | 160 | 540 | 475 | 405 | 322 | 96000 | 220×370 | 15 | 16 | 250 | 310 |
| 170 | 170 | 110650 | 220×370 | 15 | 16 | 250 | ||||||
| 180 | 180 | 126450 | 220×370 | 15 | 16 | 250 | ||||||
| >180 | >180 | 141450 | 240×405 | 12 | 20 | 490 | ||||||
| 190 | 190 | 160350 | 240×405 | 12 | 20 | 490 | ||||||
| 200 | 200 | 180550 | 240×405 | 12 | 20 | 490 | ||||||
| TNF 200 | 170 | 170 | 560 | 500 | 430 | 368 | 123800 | 240×405 | 12 | 20 | 490 | 395 |
| 185 | 185 | 150750 | 240×405 | 12 | 20 | 490 | ||||||
| 200 | 200 | 180550 | 240×405 | 12 | 20 | 490 | ||||||
| >200 | >200 | 190250 | 260×430 | 14 | 20 | 490 | ||||||
| 210 | 210 | 212900 | 260×430 | 14 | 20 | 490 | ||||||
| 220 | 220 | 236850 | 260×430 | 14 | 20 | 490 | ||||||
| … | … | … | … | … | … | … | … | … | … | … | … | … |
