Let’s learn about Ringfeder Steel Disc Couplings TND XDX with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Steel Disc Couplings TND XDX products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
See also: Other types of Ringfeder elastic disc shaft couplings
2. Characteristics of the Steel Disc Couplings TND XDX:
2.1. Specifications
– The Steel Disc Couplings TND XDX are manufactured by Ringfeder/Germany.
– Available in 7 sizes.
– Bore diameter d: 38-160 mm.
– Maximum outer diameter D1: 116-345 mm.
– Center distance between shafts E: 100-300 mm.
– Total length L: 210-700 mm.
– Torque capacity T KN: 750-44,000 Nm.
2.2. Outstanding advantages
– Completely backlash-free and maintenance-free.
– Highly effective compensation for angular and axial shaft misalignment.
– High torsional stiffness.
– Low restoring forces in case of shaft misalignment due to optimized disc pack design.
– Large shaft spacing accommodated by special standard and freely adjustable length compensating discs.
View more product “Steel Disc Couplings TND QCQ“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Steel Disc Couplings TND XDX:
TND XDX Couplings are widely used in industry:
– Industrial pumps, fans
– Air compressors, generators, turbine drives
– Axial fans & centrifugal fans
– Paper making machines & industrial printers
– Mixers, agitators, plastic – food extruders
– Lifting equipment & moving transmissions
– Ship drives & water screw systems

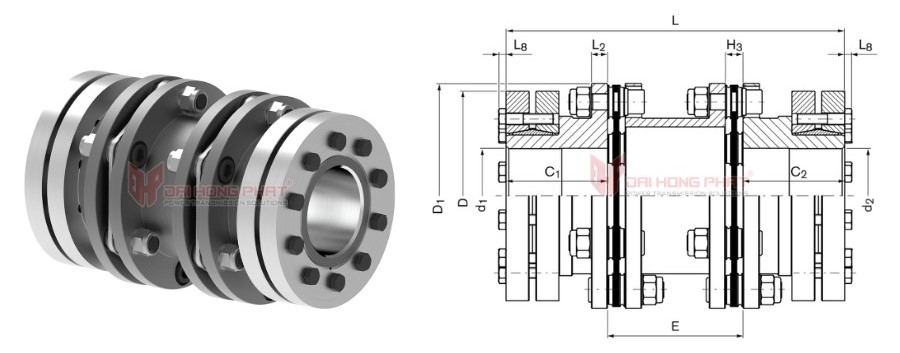

4. Technical drawing of the Steel Disc Coupling Ringfeder TND XDX:
| Catalogue Ringfeder TND XDX |
Installation Ringfeder TND XDX |
||||||
 |
|
| Size | TKNHD | TKNHT | nmax | d1;d2 min |
d1;d2 max |
C1 / C2 | E | H3 | D1 | L2 | L | nSc | L8 |
| XDX | Nm | Nm | 1/min | mm | mm | mm | mm | mm | mm | mm | mm | Quantity | mm |
| 82 | 750 | 1050 | 3600 | 38 | 60 | 55 | 100 | 10.5 | 116 | 10 | 210 | 6 | 4 |
| 140 | 250 | ||||||||||||
| 180 | 290 | ||||||||||||
| 98 | 1350 | 1750 | 3600 | 50 | 70 | 60 | 100 | 12 | 140.5 | 11 | 220 | 6 | 5.3 |
| 140 | 260 | ||||||||||||
| 180 | 300 | ||||||||||||
| 118 | 2400 | 3000 | 3600 | 50 | 75 | 75 | 100 | 13 | 166.5 | 12 | 250 | 6 | 5.3 |
| 140 | 290 | ||||||||||||
| 180 | 330 | ||||||||||||
| 141 | 4000 | 5200 | 3400 | 65 | 95 | 90 | 140 | 15 | 198.5 | 14 | 320 | 6 | 7.5 |
| 180 | 360 | ||||||||||||
| 169 | 6500 | 8500 | 3000 | 65 | 105 | 125 | 140 | 21 | 238 | 16 | 390 | 6 | 10 |
| 180 | 430 | ||||||||||||
| 250 | 500 | ||||||||||||
| 205 | 21000 | 26000 | 2500 | 95 | 145 | 160 | 200 | 28 | 295 | 22 | 520 | 8 | 10 |
| 250 | 570 | ||||||||||||
| 254 | 36000 | 44000 | 2100 | 94 | 160 | 200 | 224 | 32.5 | 345 | 26 | 624 | 8 | 10 |
| 250 | 650 | ||||||||||||
| 300 | 700 |
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from Ringfeder Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
