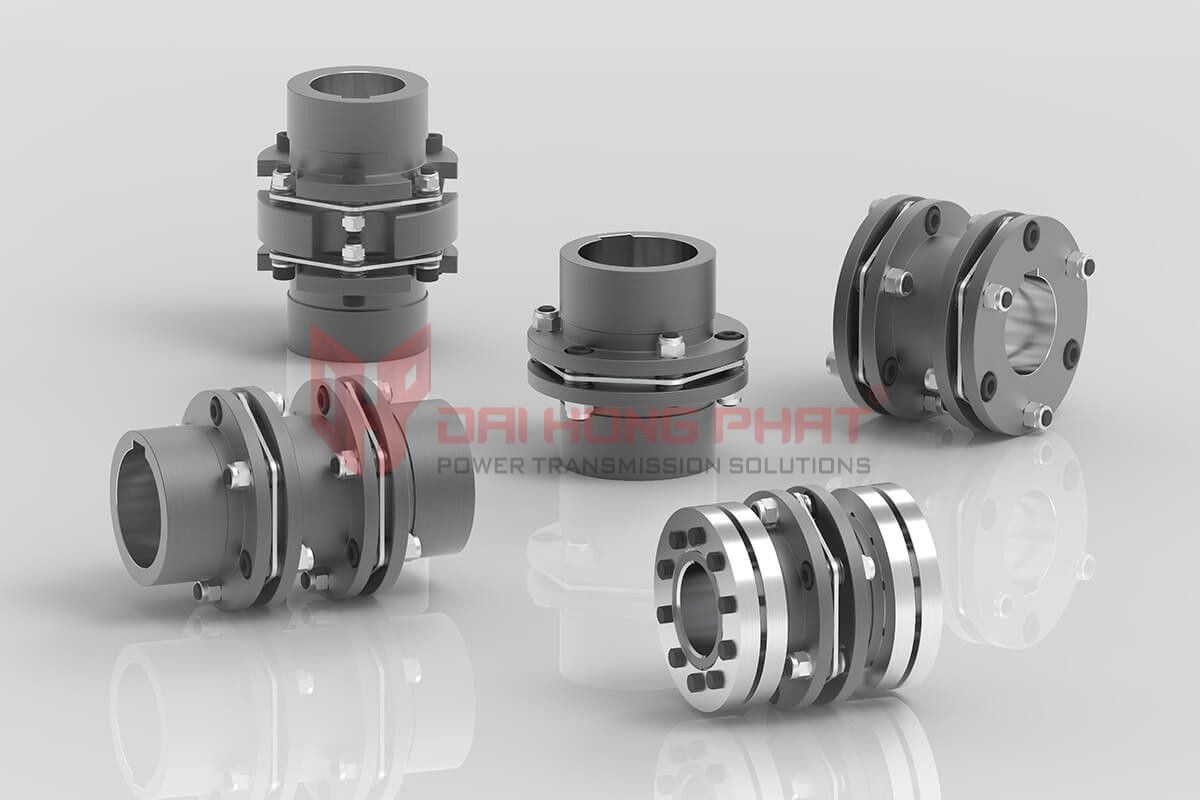

RINGFEDER STEEL DISC COUPLINGS TND VDV

The steel disc couplings Ringfeder TND VDV, also known as Steel Disc Couplings TND VDV, consist of two counter-rotating V-shaped shafts connected by a standard-length D cushion. These couplings have no torsional reaction and feature low restorative force in cases of shaft misalignment due to an optimized disc package design.

Dai Hong Phat Corp Shaft Coupling is an authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Description

5/5 - (1 vote)

Let’s learn about Ringfeder Steel Disc Couplings TND VDV with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Steel Disc Couplings TND VDV products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See also: Other types of Ringfeder elastic disc shaft couplings

2. Characteristics of the Steel Disc Couplings TND VDV:

2.1. Specifications

– The steel disc couplings TND VDV are manufactured by Ringfeder/Germany.
– Maximum bore diameter d: 25-120 mm.
– Maximum outside diameter D1: 70.5-345 mm.
– Center distance E: 60-300 mm.
– Total length L: 70-352 mm.
– Torque T: 170-44,000 Nm.

2.2. Outstanding advantages

– Completely backlash-free and maintenance-free.
– High efficiency in compensating angular, parallel, and axial misalignments.
– High torsional stiffness.
– Low restoring forces in case of shaft misalignment due to optimized disc pack design.
– Connection of large shaft spacings using cushion blocks of various standard lengths.
– Maximum radial offset at minimum shaft spacing.
– Efficient realization of customized solutions for customers with short delivery times thanks to modular design.

View more product “Steel Disc Couplings TND HDH“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the Steel Disc Couplings Ringfeder TND VDV:

The steel disc couplings Ringfeder TND VDV are commonly utilized in various industrial applications such as:
– Mining equipment
– Paper manufacturing machinery
– Gearbox production
– Conveyor systems
– Food processing industry
– Metal rolling mills
These couplings are suitable for environments requiring high torque transmission and efficient compensation of misalignments.

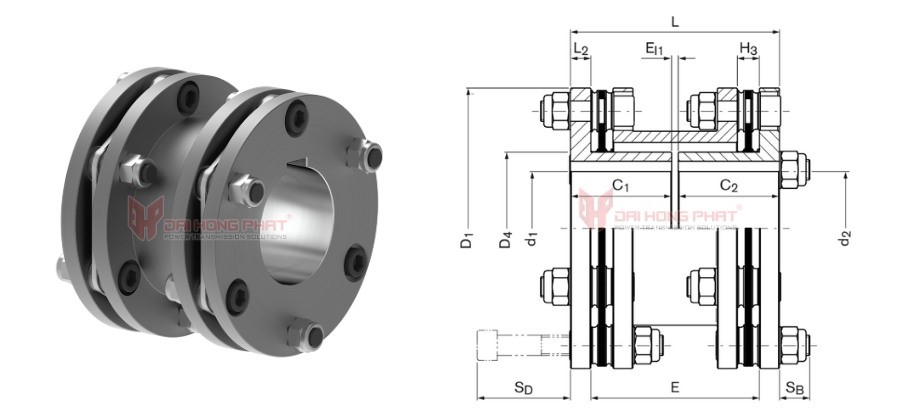

4. Technical drawing of the Steel Disc Couplings TND VDV:

Catalogue Ringfeder TND VDV				Installation Ringfeder TND VDV

Coupling Model	T_KNHD	T_KNHT	ⁿmax	Dimensions [mm]					Gw
	Nm	Nm	1/min	^d1k^;d2k max	C₁/ C₂	D₁	L₂	L	[kg]
TND VDV 47	170	230	12200	25	33	70.5	5	70	1.2
					39,5			110	1.4
TND VDV 63	320	420	9900	32	41	88	8	86	2.4
					45			96	2.5
TND VDV 82	750	1050	7500	44	55	116	10	120	5.7
					55			160	6
TND VDV 98	1350	1750	6200	50	59	140.5	11	122	8.8
					60			162	9.2
TND VDV 118	2400	3000	5250	60	60	166.5	12	124	13.1
					75			164	13.8
TND VDV 141	4000	5200	4400	75	81	198.5	14	168	22.6
					90			208	24.7
TND VDV 169	6500	8500	3650	90	103	238	16	212	43.5
					125			282	46.2
TND VDV 205	21000	26000	2950	115	142	295	22	294	93.4
TND VDV 254	36000	44000	2500	120	146	345	26	302	132.8
					171			352	136.6
