Let’s learn about Ringfeder Steel Disc Couplings TND QCQ with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Steel Disc Couplings TND QCQ products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
See also: Other types of Ringfeder elastic disc shaft couplings
2. Characteristics of the Steel Disc Couplings TND QCQ:
2.1. Specifications
– The Steel Disc Couplings TND QCQ are manufactured by Ringfeder/Germany.
– Available in 2 sizes.
– Bore diameter range d: 38-70 mm.
– Maximum outer diameter D1: 116-145 mm.
– Center distance E: 46.5-55 mm.
– Total length L: 156.5-175 mm.
– Torque T KN: 750-1,750 Nm.
2.2. Outstanding advantages
– Completely backlash-free and maintenance-free.
– High efficiency in compensating angular, axial, and radial misalignments.
– High torsional stiffness.
– Low restorative force in case of shaft misalignment due to optimized disc pack design.
– Minimum shaft center distance for standard hubs.
– Compact buffers for easy radial installation and removal.
View more product “Steel Disc Couplings TND OCO“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Ringfeder TND QCQ Disc Couplings:
TND QCQ Couplings are widely used in industry:
– Industrial pumps, fans
– Air compressors, generators, turbine drives
– Axial fans & centrifugal fans
– Paper making machines & industrial printers
– Mixers, agitators, plastic – food extruders
– Lifting equipment & moving transmissions
– Ship drives & water screw systems

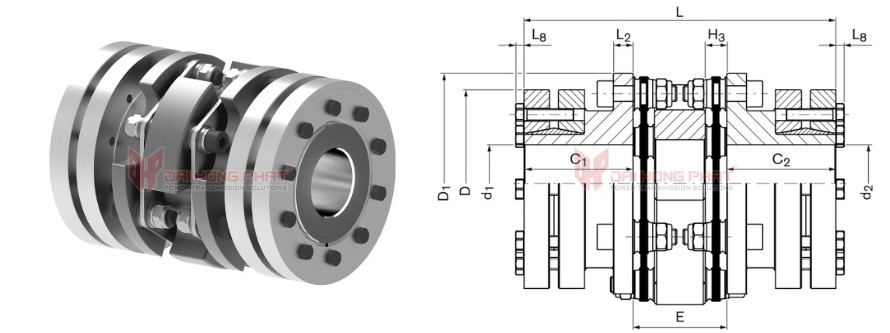

4. Technical drawing of the Steel Disc Couplings TND QCQ:
| Catalogue Ringfeder TND QCQ |
Installation Ringfeder TND QCQ |
||||||
 |
|
| Size | TKNHD | TKNHT | nmax | d1;d2 min |
d1;d2 max |
C1 / C2 | E | H3 | D1 | L2 | L | nSc | L8 |
| QCQ | Nm | Nm | 1/min | mm | mm | mm | mm | mm | mm | mm | mm | Quantity | mm |
| 82 | 750 | 1050 | 3600 | 38 | 65 | 55 | 46.5 | 10.5 | 116 | 10 | 156.5 | 6 | 5.3 |
| 98 | 1350 | 1750 | 3600 | 50 | 70 | 60 | 55 | 12 | 140.5 | 11 | 175 | 6 | 5.3 |
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from Ringfeder Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
