RINGFEDER STEEL DISC COUPLINGS TND OCO

The Ringfeder TND Series OCO steel disc couplings are robust, torsionally rigid couplings designed to provide reliable torque transmission without torsional backlash. They consist of two standard shafts with an open flange O and a compact cushion C that can be installed and removed in a radial direction. These couplings are ideal for applications requiring precise torque transmission and minimal maintenance, making them suitable for a wide range of industrial machinery and equipment.

Dai Hong Phat Corp Shaft Coupling is an authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Description

5/5 - (1 vote)

Let’s learn about Ringfeder Steel Disc Couplings TND OCO with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Steel Disc Couplings TND OCO products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See also: Other types of Ringfeder elastic disc shaft couplings

2. Characteristics of the Steel Disc Couplings TND OCO:

2.1. Specifications

– The Steel Disc Couplings TND OCO are manufactured by Ringfeder/Germany.
– Available in 4 sizes.
– Maximum bore diameter d: 32-65 mm.
– Maximum outer diameter D1: 70.5-140.5 mm.
– Center distance E: 31.2-55 mm.
– Total length L: 110-175 mm.
– Torque TKN: 170-1,750 Nm.

2.2. Outstanding advantages

– Completely backlash-free and maintenance-free.
– Highly efficient in compensating angular, axial, and radial misalignments.
– High torsional stiffness.
– Low restorative forces in case of shaft misalignment due to optimized disc pack design.
– Minimum shaft center distance for standard hubs.
– Compact buffer that can be installed and removed radially.
– Efficient realization of customized solutions for customers within short delivery times through modular design.

View more product “Steel Disc Couplings TND VDV“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the Steel Disc Couplings Ringfeder TND OCO:

The Ringfeder steel disc couplings TND OCO are widely utilized in various industrial applications such as:
– Paper and pulp manufacturing.
– Steel production facilities.
– Conveyor systems.
– Mining equipment.
– Marine and shipbuilding industries.
– Power generation plants.
– Food processing and packaging machinery.
– Material handling equipment.
– Chemical processing plants.
– Petrochemical refineries.
These couplings are specifically designed to provide reliable and efficient torque transmission while compensating for misalignments and ensuring smooth operation in demanding industrial environments.

Applications of the Ringfeder Steel Disc Couplings

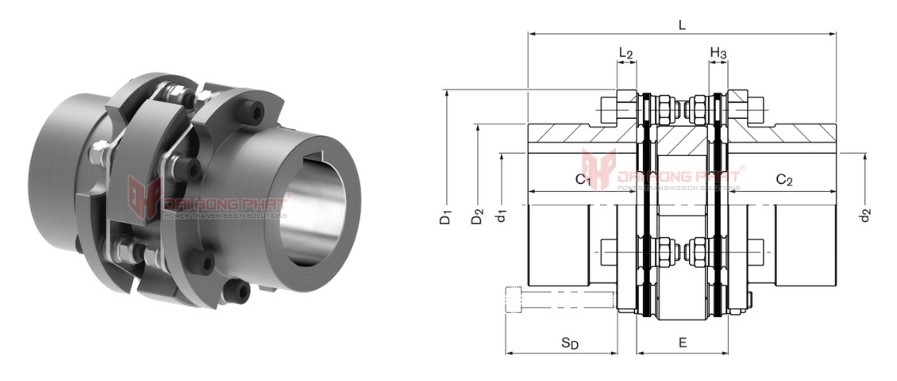

5. Technical drawing of the Steel Disc Couplings TND OCO:

Catalogue Ringfeder TND Series OCO				Installation Ringfeder TND Series OCO

Size	T_KNHD	T_KNHT	ⁿmax	^dpre	^d1k^;d2k max	C₁/ C₂	E	H₃	D₁	D₂	L₂	L	S_D	ⁿSc
OCO	Nm	Nm	1/min	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Quantity
47	170	230	8400	10	32	39.5	31.2	7.5	70.5	47	5	110	24	6
63	320	420	6800	14	42	45	38	9	88	62.5	8	128	32	6
82	750	1050	5400	15	55	55	46.5	10.5	116	82	10	156.5	40	6
98	1350	1750	4600	19	65	60	55	12	140.5	98	11	175	47	6
