Let’s learn about Ringfeder Flexible Couplings TNB BHD BS with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings TNB BHD BS products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

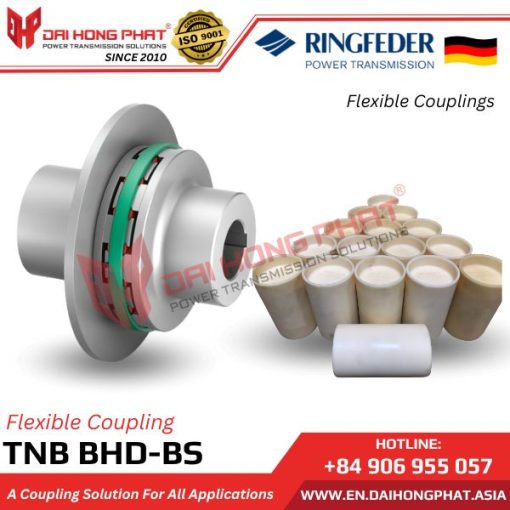

2. Characteristics of Flexible Couplings TNB BHD BS:
– Flexible Couplings TNB BHD BS are manufacturer by Ringfeder/Germany.
– Twist flexibility, compensating for angular, radial, and axial misalignments.
– Buffer is loaded in compression.
– Buffers can be replaced radially without the need to move the connected machines.
– Resilient material available in various hardness levels.
– Suitable for temperatures from -30°C to +100°C.
– Outer diameter up to 900 mm.
– Maximum bore diameter: 400 mm.
– Torque up to TKn = 260,000 Nm / TKmax = 780,000 Nm.
– Speed up to nmax = 4,100 rpm.
– The coupling is designed in three parts with brake disc and VkR buffer.
– Due to the coupling’s rotational recovery ability, dangerous torsional vibrations from the operating range of the plant machinery can be transferred to the speed range without any negative effects.
– The resilient buffers are capable of cushioning with high-quality materials, allowing the couplings to maintain improvements within limits when passing through dangerous speed ranges, thus protecting the connected machines from damage.
– The Ringfeder TNB BHD-BS couplings also minimize torque shocks and quickly dampen a vibration system excited by an impact due to the material’s damping quality. Noise transmission is prevented by the structure.**
– The buffers of the Ringfeder TNB BHD-BS couplings are made of butadiene-nitrile rubber (Pb82) or polyurethane (VkR, VkW). The black buffers (Pb82) are typically conductive, thus preventing unwanted static electric charges. The red (VkR) and white (VkW) buffers ensure insulation between the connected machines as long as there are no other conductive connections. The recovery ability of each resilient material is determined by its Shore hardness. From these values, an indirect conclusion can be drawn about the torques the coupling can transmit and its spring stiffness.
Reference: Ringfeder Rubber Elements TNB Specifications
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of Flexible Couplings TNB BHD BS:
The Ringfeder TNB BHD-BS coupling is used globally in heavy-duty industrial applications that demand high technical standards through durability and superior performance – providing maximum operation for machinery and plants. Elastomer Jaw Couplings TNB BHD-BS is preferred in steel mills, steel rolling mills, cement plants, mining, and construction machinery, such as excavators, shredders, and tunnel boring machines, as well as in offshore technology.
See article: Comparison of 5 types of mechanical shaft couplings in industry

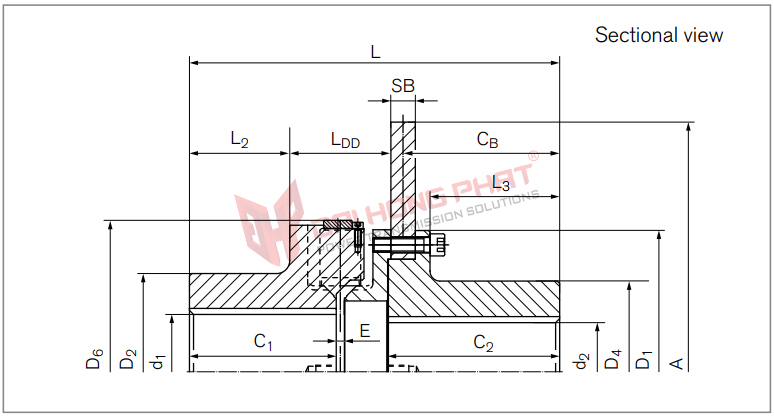

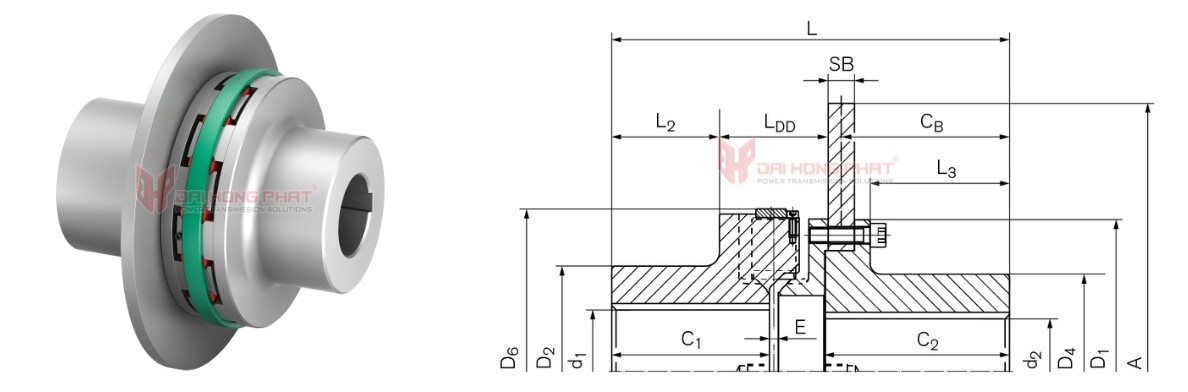

4. Technical of Ringfeder TNB BHD-BS:
| Catalogue Ringfeder TNB BHD-BS |
Installation Ringfeder TNB BHD-BS |
||||||
 |
|
| Model | Model | TKN | nmax | Dimenssions [mm] | Gwub [kg] |
||||
| Nm | 1/min | d1kmax | d2kmax | D1 | D2 | L | |||
| BHD-BS 300 | WB0730-0630 | 6000 | 2700 | 135 | 135 | 300 | 210 | 440 | 193 |
| BHD-BS 350 | WB0735-0710 | 10500 | 2400 | 160 | 170 | 350 | 240 | 505 | 284 |
| BHD-BS 400 | WB0740-0800 | 16000 | 2150 | 180 | 190 | 400 | 270 | 538 | 383 |
| BHD-BS 450 | WB0745-0800 | 21000 | 2150 | 200 | 205 | 450 | 300 | 558 | 440 |
| BHD-BS 500 | WB0750-0900 | 28500 | 1900 | 220 | 225 | 500 | 330 | 628.5 | 601 |
| BHD-BS 550 | WB0755-0900 | 45000 | 1800 | 240 | 240 | 550 | 350 | 648.5 | 684 |
| BHD-BS 600 | WB0760-1000 | 55000 | 1650 | 250 | 265 | 600 | 375 | 675 | 857 |
| BHD-BS 650 | WB0765-1000 | 65000 | 1500 | 260 | 265 | 650 | 400 | 708.5 | 951 |
| BHD-BS 700 | WB0770-1200 | 90000 | 1400 | 300 | 310 | 700 | 450 | 804 | 1370 |
| BHD-BS 800 | WB0780-1400 | 120000 | 1200 | 330 | 340 | 800 | 490 | 854 | 1788 |
| BHD-BS 900 | WB0790-1500 | 180000 | 1100 | 360 | 400 | 900 | 540 | 944 | 2458 |
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from Ringfeder Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
