1. Dai Hong Phat Corp. is the exclusive representative specialized in supplying all Taper Grid Couplings products throughout Vietnam:
– Westcar began manufacturing and marketing its range of flexible couplings in 1978. Westcar/Italy has continually improved product quality and manufacturing techniques to expand its production range to meet the needs of both domestic and international markets. Westcar’s products have been sold on five continents in over 30 countries.
– Dai Hong Phat Corp. is the importer and distributor of 100% genuine Westcar bolt couplings throughout Vietnam.
– Dai Hong Phat commits to over 10 years of reputation, ensuring customers to purchase 100% genuine Rotogrid TH Taper Grid Couplings with high quality and the best prices on the market.
2. Characteristics of the Rotogrid TH Taper Grid Couplings:
– Rotogrid TH Taper Grid Couplings are manufactured by Westcar/Italy.
– Available in various sizes and dimensions
– The internal springs in the coupling allow parallel misalignment and vibration damping.
– Lubricated springs in the coupling grooves enable shaft oscillation and sliding without electrical loss.
– Shaft movement maintains adjustable power transmission characteristics.
– Withstands starting torque equivalent to 2 times the torque.
– Rotation speed: 900 RPM – 4500 RPM.
– Torque: 52 Nm – 186000 Nm.
– Shaft bore: 28 mm – 360 mm.
View more product “Rotodis Lamellar Coupling Series Hn-HNS“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Rotogrid TH Taper Grid Couplings:
The Rotogrid TH Taper Grid Couplings find applications in a wide range of industries and machinery, including industrial machinery, mining equipment, material handling systems, conveyor systems, pumps, compressors, generators, and other rotating machinery. It is particularly effective in environments where vibration damping and parallel misalignment compensation are crucial for smooth and efficient operation.

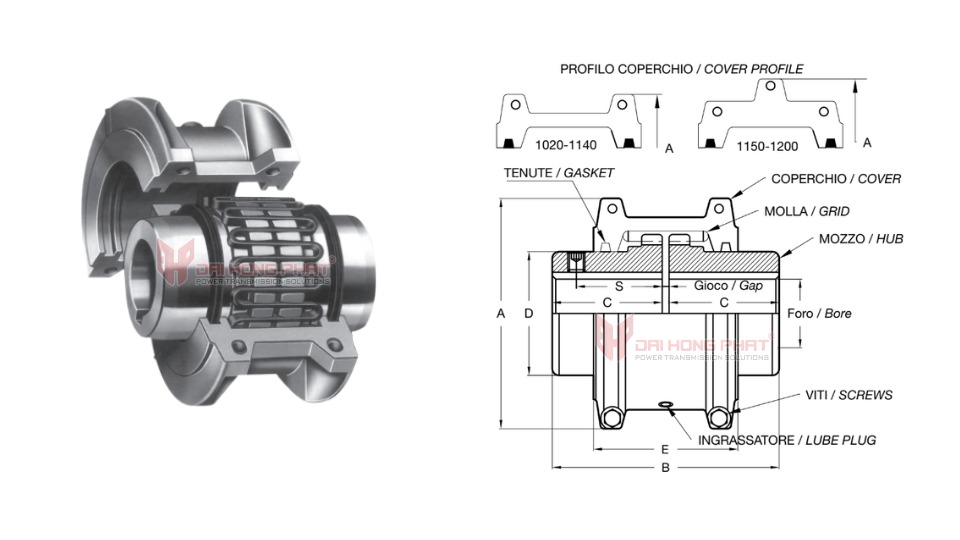

4. Technical of the Rotogrid TH Taper Grid Couplings:
| Catalogue Rotogrid TH Coupling |
Installation Rotogrid TH Coupling |
||||||
 |
|
| Model | Speed max. rpm | Torque nomin. Nm |
Bore | DIMENSIONS mm |
Gap mm | Weight Kg | Grease Qty Kg. | ||||||||||||||||||||||||||||||||||||||||||||
| Max. | Min. | A | B | C | D | E | S | ||||||||||||||||||||||||||||||||||||||||||||
| 1020 | 4,500 | 52 | 28 | 13 | 101.6 | 98 | 47.5 | 39.7 | 66.5 | 39.1 | 3 | 1.9 | 0.03 | ||||||||||||||||||||||||||||||||||||||
| 1030 | 4,500 | 149 | 35 | 13 | 110.0 | 98 | 47.5 | 49.2 | 71.8 | 39.1 | 3 | 2.6 | 0.03 | ||||||||||||||||||||||||||||||||||||||
| 1040 | 4,500 | 249 | 43 | 13 | 117.5 | 104.6 | 50.8 | 57.1 | 70 | 40.1 | 3 | 3.4 | 0.05 | ||||||||||||||||||||||||||||||||||||||
| 1050 | 4,500 | 435 | 50 | 13 | 138.0 | 123.6 | 60.3 | 66.7 | 79.5 | 44.7 | 3 | 5.4 | 0.05 | ||||||||||||||||||||||||||||||||||||||
| 1060 | 4,350 | 684 | 56 | 20 | 150.5 | 130 | 63.5 | 76.2 | 92 | 52.3 | 3 | 7.3 | 0.09 | ||||||||||||||||||||||||||||||||||||||
| 1070 | 4,125 | 994 | 67 | 20 | 161.9 | 155.4 | 76.2 | 87.3 | 96 | 53.8 | 3 | 10 | 0.11 | ||||||||||||||||||||||||||||||||||||||
| 1080 | 3,600 | 2050 | 80 | 27 | 194.0 | 180.8 | 88.9 | 104.8 | 116 | 64.5 | 3 | 18 | 0.17 | ||||||||||||||||||||||||||||||||||||||
| 1090 | 3,600 | 3730 | 95 | 27 | 213.0 | 199.8 | 98.4 | 123.8 | 122 | 71.6 | 3 | 25 | 0.25 | ||||||||||||||||||||||||||||||||||||||
| 1100 | 2,400 | 6280 | 110 | 42 | 250.,0 | 245.7 | 120.6 | 142 | 155.5 | 88.6 | 4.5 | 42 | 0.43 | ||||||||||||||||||||||||||||||||||||||
| 1110 | 2,250 | 9320 | 120 | 42 | 270.0 | 258.5 | 127 | 160.3 | 161.5 | 93 | 4.5 | 55 | 0.51 | ||||||||||||||||||||||||||||||||||||||
| 1120 | 2,025 | 13700 | 140 | 61 | 308.0 | 304.4 | 149.2 | 179.4 | 191.5 | 109.2 | 6 | 75 | 0.73 | ||||||||||||||||||||||||||||||||||||||
| 1130 | 1,800 | 19900 | 170 | 67 | 346.0 | 329.8 | 161.9 | 217.5 | 195 | 116.9 | 6 | 116 | 0.91 | ||||||||||||||||||||||||||||||||||||||
| 1140 | 1,650 | 28600 | 200 | 67 | 384.0 | 347.2 | 184.1 | 254 | 201 | 139.2 | 6 | 171 | 1.13 | ||||||||||||||||||||||||||||||||||||||
| 1150 | 1,500 | 39800 | 215 | 108 | 453.1 | 372 | 183 | 269 | 273 | 150.9 | 6 | 216 | 1.95 | ||||||||||||||||||||||||||||||||||||||
| 1160 | 1,350 | 55900 | 240 | 121 | 501.4 | 402 | 198 | 305 | 279 | – | 6 | 304 | 2.81 | ||||||||||||||||||||||||||||||||||||||
| 1170 | 1,225 | 74600 | 280 | 134 | 566.4 | 438 | 216 | 356 | 309 | – | 6 | 423 | 3.49 | ||||||||||||||||||||||||||||||||||||||
| 1180 | 1,100 | 103000 | 300 | 153 | 629.9 | 484 | 239 | 394 | 321 | – | 6 | 594 | 3.76 | ||||||||||||||||||||||||||||||||||||||
| 1190 | 1,050 | 137000 | 335 | 153 | 675.6 | 524 | 259 | 437 | 325 | – | 6 | 764 | 4.40 | ||||||||||||||||||||||||||||||||||||||
| 1200 | 900 | 186000 | 360 | 178 | 756.9 | 564 | 279 | 498 | 356 | – | 6 | 1042 | 5.62 | ||||||||||||||||||||||||||||||||||||||
5. Why choose Dai Hong Phat Corp. as the supplier for Westcar Taper Grid Coupling:
– You will be able to purchase 100% genuine bolted flange couplings directly imported by Dai Hong Phat Corp from the manufacturer.
– Customers can rest assured as Dai Hong Phat Corp will safeguard against risks, ensuring protection against counterfeit products of Rotogrid TH Taper Grid Couplings.
– Dai Hong Phat will provide complete CO/CQ documentation for the bolted flange couplings supplied.
– Westcar Taper Grid Coupling is always available in Dai Hong Phat’s warehouse, ensuring prompt delivery to customers.
– Dai Hong Phat Corp. will provide technical drawings of the purchased Rotogrid TH couplings upon request.
– Our dedicated team of highly skilled technical specialists is always available to provide comprehensive support and advice to customers.
– Dai Hong Phat offers free consultation on optimal solutions for customers’ factories regarding genuine Westcar Coupling from the Westcar brand.
– Customers will receive the authentic Westcar Catalogue from Dai Hong Phat Corp.
– We offer free customization of technical specifications and dimensions of Taper Grid Coupling according to customers’ requirements.
– Dai Hong Phat Corp. provides nationwide 24/7 delivery services, ensuring minimal downtime for customers’ machinery.
– We have a professional precision machining workshop to fulfill customers’ specific requests.
