1. Dai Hong Phat Corp. is the exclusive representative specialized in supplying all Westcar Gear Couplings throughout Vietnam:
– Westcar began manufacturing and marketing its range of flexible couplings in 1978. Westcar/Italy has continually improved product quality and manufacturing techniques to expand its production range to meet the needs of both domestic and international markets. Westcar’s products have been sold on five continents in over 30 countries.
– Dai Hong Phat Corp. is the importer and distributor of 100% genuine Westcar Gear Couplings throughout Vietnam.
– Dai Hong Phat commits to over 15 years of reputation, ensuring customers to purchase 100% genuine Rotogear AR Tooth Gear Couplings with high quality and the best prices on the market.
2. Characteristics of the Westcar Rotogear AR Gear Couplings:
– The Rotogear AR Gear Couplings are manufactured by Westcar/Italy.
– The coupling is made entirely of advanced steel to connect the drive unit to the cable drum for both crane systems and other applications.
– Designed to be compact.
– Reducer shaft diameter: 220mm.
– Transmission power: 45kW – 9 RPM.
– Pulling force: 10,000 daN.
– Drum weight: 1250 daN.
– Calculated torque MT max. = 45 / 9x2x955 = 9550 daN.
– The coupling is flexible and allows for compensation of angular misalignments.
View more product “Rotogear RE Tooth Gear Couplings“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Westcar Rotogear AR Gear Couplings:
Thanks to its various configurations, the coupling meets the most diverse installation needs. The Westcar Rotogear AR gear couplings are used as: motor coupling, pump coupling, and reducer coupling.
4. Technical of the Westcar Rotogear AR Gear Couplings:

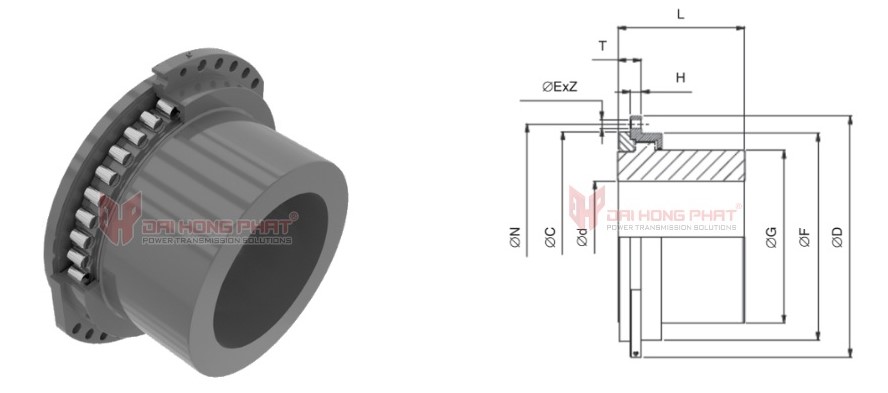

| Catalogue Westcar Rotogear AR |
Installation Westcar Rotogear AR |
||||||
 |
|
| Model | Foro Ø in mm | Hole Ø in mm | Dimensioni in mm | Weight | Axial offset | |||||
| min. | max. | Ø D | Ø N | Ø C | L | T | H | Kg. | ± mm | |
| AR 2.5 | 38 | 68 | 250 | 220 | 159 | 95 | 42 | 12 | 10 | 3 |
| AR 5 | 48 | 80 | 280 | 250 | 179 | 100 | 42 | 12 | 13 | 3 |
| AR 7.5 | 58 | 90 | 320 | 280 | 199 | 110 | 45 | 15 | 18 | 4 |
| AR 10 | 58 | 100 | 340 | 300 | 219 | 125 | 45 | 15 | 23 | 4 |
| AR 13 | 78 | 115 | 360 | 320 | 239 | 130 | 45 | 15 | 27 | 4 |
| AR 16 | 78 | 130 | 380 | 340 | 259 | 145 | 45 | 15 | 32 | 4 |
| AR 20 | 98 | 136 | 400 | 360 | 279 | 170 | 45 | 15 | 42 | 4 |
| AR 30 | 98 | 156 | 420 | 380 | 309 | 175 | 45 | 15 | 49 | 4 |
| AR 40 | 98 | 185 | 450 | 400 | 339 | 185 | 60 | 20 | 67 | 4 |
| AR 50 | 98 | 215 | 510 | 460 | 399 | 220 | 60 | 20 | 101 | 6 |
| AR 60 | 118 | 235 | 550 | 500 | 419 | 240 | 60 | 20 | 111 | 6 |
| AR 100 | 138 | 250 | 580 | 530 | 449 | 260 | 60 | 20 | 149 | 6 |
| AR 150 | 158 | 295 | 650 | 600 | 529 | 315 | 65 | 25 | 235 | 6 |
| AR 210 | 168 | 305 | 665 | 615 | 544 | 330 | 65 | 25 | 261 | 6 |
| AR 260 | 168 | 315 | 680 | 630 | 559 | 350 | 65 | 25 | 288 | 6 |
| AR 340 | 198 | 340 | 710 | 660 | 599 | 380 | 81 | 35 | 363 | 8 |
| AR 420 | 228 | 385 | 780 | 730 | 669 | 410 | 81 | 35 | 483 | 8 |
| AR 620 | 258 | 430 | 850 | 800 | 729 | 450 | 81 | 35 | 632 | 8 |
| AR 820 | 255 | 455 | 940 | 875 | 796 | 500 | 86 | 40 | 806 | 10 |
| AR 920 | 255 | 500 | 1025 | 945 | 856 | 500 | 86 | 40 | 944 | 10 |
| … | … | … | … | … | … | … | … | … | … | … |
5. Why choose Dai Hong Phat as your supplier for Westcar gear couplings?
– You will purchase 100% genuine gear couplings as Dai Hong Phat imports them directly from the manufacturer.
– You can rest assured that Dai Hong Phat will protect you from the risks associated with counterfeit Westcar Rotogear AR products.
– Dai Hong Phat will provide full CO/CQ documentation for the gear couplings supplied.
– Westcar Rotogear AR products are always in stock at Đại Hồng Phát, ensuring quick delivery to our customers.
– Dai Hong Phat will provide technical drawings of the gear couplings you purchase (upon request).
– Our company offers dedicated support and advice on Westcar Rotogear AR Gear Couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat is ready to offer free consultations on optimal solutions for your factory with genuine gear coupling products from the Westcar brand.
– You will receive the official Westcar catalogue from Dai Hong Phat.
– Free customization of technical specifications and dimensions of the gear coupling products to meet your requirements.
– We offer nationwide delivery 24/7, helping you minimize downtime for your machinery.
– Dai Hong Phat has a professional machining workshop for custom adjustments as per your specific needs.
