1. Why choose Dai Hong Phat Corp. as your supplier for Flexible Couplings KTR?
Dai Hong Phat is an authorized distributor for coupling KTR Germany in Vietnam. KTR is a famous brand from Germany, chosen by distributors in many countries around the world. Therefore, customers can be completely assured of product quality, find and choose products that suit their needs at Dai Hong Phat.
Outstanding benefits when you buy Roflex-SH Shaft Couplings from Dai Hong Phat:
– Buy genuine products imported directly from the manufacturer.
– Protect your risks, against counterfeit goods.
– Provide full CO/CQ documents for you.
– Available in stock, ready for fast delivery.
– Provide technical drawings for customers (upon request).
– A team of highly skilled technical experts for dedicated support.
– Free consultation on optimal solutions for your factory.
– Provide genuine Catalogues for products.
– Free conversion of technical parameters and dimensions upon request.
– Nationwide delivery 24/7, helping you minimize machine downtime.
– Have a professional processing workshop to customize according to your specific requirements.
2. Dai Hong Phat Corp. is the specialized representative for supplying all KTR products in Vietnam:
– Dai Hong Phat Corp. is the importer and distributor of 100% genuine Rotex Standard Flexible Jaw Couplings from the KTR brand in Vietnam (Authorized Distributor for KTR Products in Vietnam).
– With over 15 years of reputation, Dai Hong Phat ensures to provide customers with 100% genuine KTR products of the highest quality and the best prices on the market.
Mr. Arthur Low – Director of KTR Singapore visited Dai Hong Phat Company on a business trip
Certificate of Dai Hong Phat as Authorised Distributor of KTR Germany in Vietnam

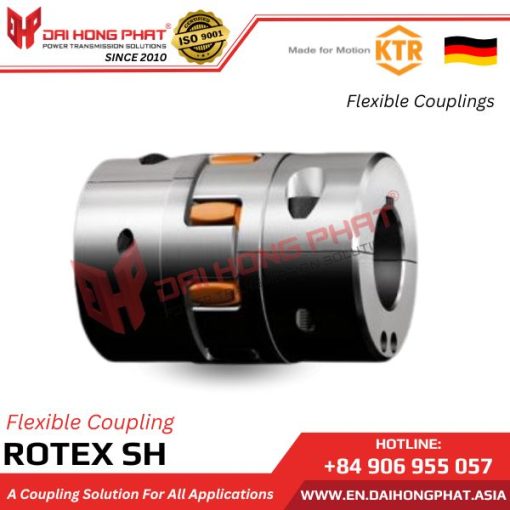

3. Characteristics of KTR Rotex SH Flexible Jaw Couplings:
– Manufacturer: KTR/Germany
– Made of durable cast iron material.
– Simple design for easy assembly and disassembly using a four-lobed screw.
– No need to replace power units for assembly.
– Replacement of the buffer ring without the need to shift the drive and driven side.
– Particularly suitable for tight mounting spaces.
– Centering of both halves through the open center.
– ATEX standard compliant (according to EU Directive 2014/34/EU).
View more product “Rotex Clamping Hubs Flexible Jaw Couplings“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
4. Applications of KTR Rotex SH Flexible Couplings:
The combination of KTR Rotex SH Flexible Couplings and brake discs is used wherever brake holding or maintenance brakes are required, such as on conveyors, power generators, turbine drive systems, industrial fans, winches, etc. Drive systems related to safety are better combined with Rotex centers made of GJS steel. Applications with moderate demands can be combined with GJL centers.

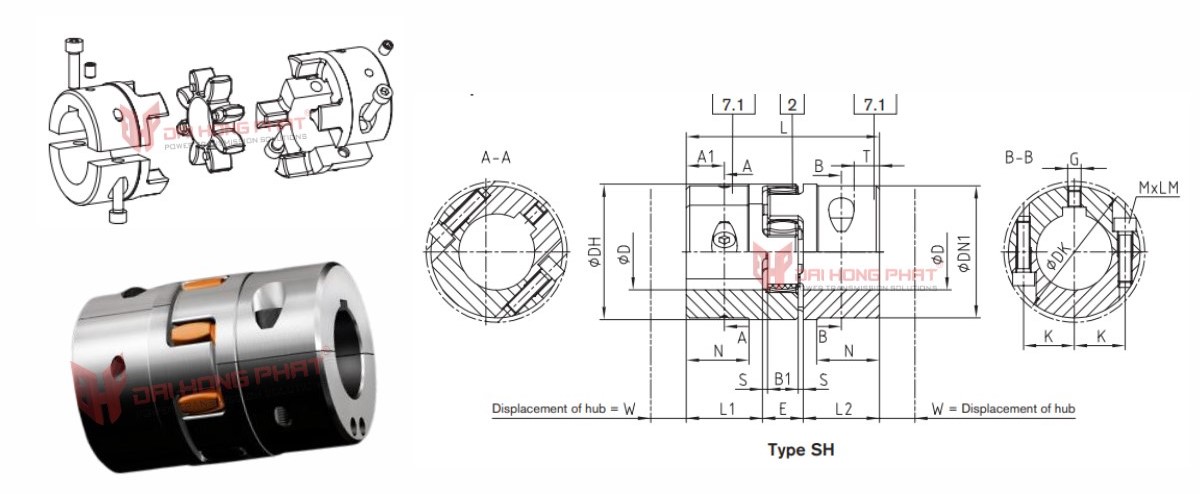

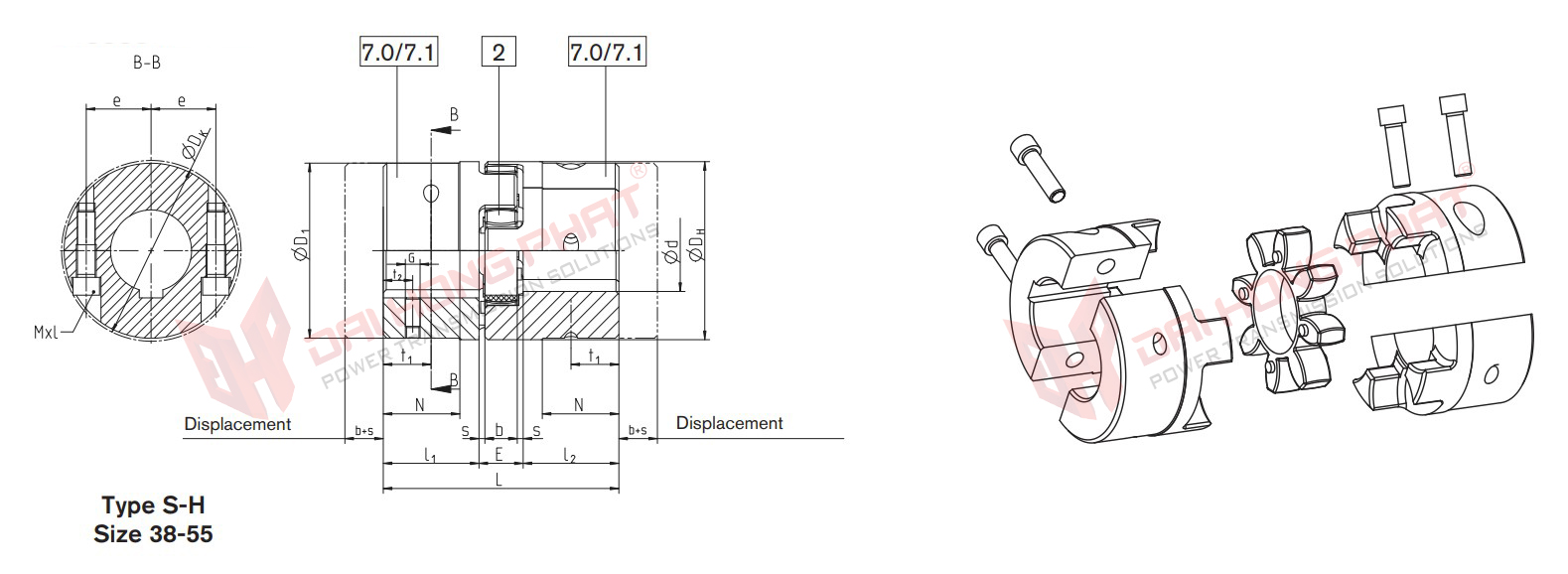

5. Technical of KTR Rotex SH Couplings:
| Catalogue KTR Rotex SH Couplings |
Installation KTR Rotex SH Couplings |
||||||
 |
|
| Size | TKN | TKmax | Max. speed [rpm] |
Dimensions [mm] | Weight [kg] |
||||
| [Nm] | [Nm] | D | D1 | L | N | N1 | |||
| SH-80 | 80 | 220 | 7500 | 35 | 38 | 63 | – | 20 | 1.3 |
| SH-95 | 125 | 345 | 6800 | 45 | 42 | 73 | 5 | 23 | 2 |
| SH-110 | 205 | 565 | 6500 | 50 | 48 | 83 | 6 | 26 | 3.1 |
| SH-125 | 315 | 865 | 5800 | 60 | 55 | 103 | 14 | 32 | 4.5 |
| SH-140 | 450 | 1240 | 5400 | 70 | 60 | 113 | 21 | 35 | 5.7 |
| SH-160 | 790 | 2170 | 4800 | 75 | 65 | 124 | 21 | 40 | 8.5 |
| SH-180 | 1150 | 3160 | 4350 | 85 | 75 | 144 | 28 | 50 | 11.6 |
| SH-200 | 1800 | 4950 | 3950 | 90 | 85 | 164 | 33 | 56 | 17.8 |
| SH-225 | 2100 | 5775 | 3600 | 100 | 90 | 184 | 38 | 73 | 20.4 |
| SH-250 | 3550 | 9765 | 3000 | 110 | 100 | 205.5 | 40 | 82 | 28.2 |
| SH-280 | 5000 | 13750 | 3000 | 120 | 120 | 225.5 | 45 | 90 | 38.1 |
Customers purschasing KTR Rotex SH Coupling at Dai Hong Phat.corp enjoy the following benefits?
– The KTR brand from Germany is a leading manufacturer of power transmission equipment worldwide. Since its establishment in 1950, KTR has consistently excelled in pioneering the design and innovation of various types of shaft couplings, hydraulic brakes, cooling systems, and hydraulic systems.
– We at Dai Hong Phat collaborate with KTR, a renowned manufacturer of power transmission equipment in Europe and worldwide.
– Dai Hong Phat Company commits to providing 100% genuine products of Rotex SH Flexible Couplings, with brand new quality, accompanied by certification and clear origin from the KTR brand.
– The core value of our collaboration is to bring significant benefits to customers in terms of genuine shaft coupling solutions distributed by Dai Hong Phat.
Contact Dai Hong Phat now for consultation!
