1. Why choose Dai Hong Phat as a supplier for KTR Rotex DKM flexible coupling?
– You will be able to buy 100% genuine KTR Rotex DKM flexible coupling imported by Dai Hong Phat company from KTR Germany.
– Dai Hong Phat will protect your risks against counterfeit products.
– Dai Hong Phat has full CO/CQ documents for Rotex DKM.
– Genuine products are available in stock, so delivery is very fast.
– We will provide technical drawings of the product (upon request).
– Dai Hong Phat always supports and consults customers wholeheartedly about the product.
– Free consultation on optimal solutions for your factory about shaft coupling products.
– Provide genuine catalogs of Rotex DKM shaft coupling products.
– Free conversion of technical parameters and dimensions of Rotex DKM upon request.
– Nationwide delivery 24/7, helping customers feel secure in minimizing machine downtime.
– Professional fine-tuning workshop according to individual requirements.
2. Dai Hong Phat Corp. is a representative specializing in providing all Rotex DKM shaft coupling products throughout Vietnam:
– Dai Hong Phat Company is an authorized representative of KTR Germany in Vietnam (Dai Hong Phat is an authorized distributor for coupling KTR Germany in Vietnam).
– Dai Hong Phat commits to more than 10 years of prestige, ensuring that customers buy 100% genuine Rotex DKM flexible jaw coupling products with high quality and the best price on the market.
Mr. Arthur Low – Director of KTR Singapore visited Dai Hong Phat Company on a business trip
Certificate of Dai Hong Phat as the Authorised Distributor of KTR Germany in Vietnam
3. Features of KTR Rotex DKM flexible coupling:
– Manufacturer: KTR/Germany.
– Structure: the coupling consists of 2 aluminum or steel shafts (hubs), 2 shock absorbers (spiders). Made of T-PUR material, in the middle there is an aluminum expansion jaw (spacer).
– Components have low restoring force.
– Good damping properties due to the double arrangement of the spiders.
– Very smooth running due to lower imbalance under severe displacement.
– Good vibration reduction and no need for regular maintenance.
– Coaxial, radial, angular compensation capabilities.
– Standard release center lengths available.
– ATEX standard (according to EU directive 2014/34 / EU).
– The function of the Rotex DKM is to ensure the transmission of torsional vibration and absorb shocks caused by uneven machine operation.
– KTR Rotex DKM coupling ensures smooth transmission of vibration. Vibration reduction due to the double arrangement of the double dampers. The coupling absorbs the shocks generated by the uneven, angularly offset machines.
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
4. Applications of KTR Rotex DKM coupling:
The combination of KTR Rotex DKM coupling and this brake disc is used wherever holding or maintenance braking is required, for example on conveyors, generators, turbine drives, industrial fans, cranes, hoists, etc. Drives with safety concerns are better combined with Rotex hubs made of steel/GJS. Moderately demanding applications can be combined with GJL hubs.

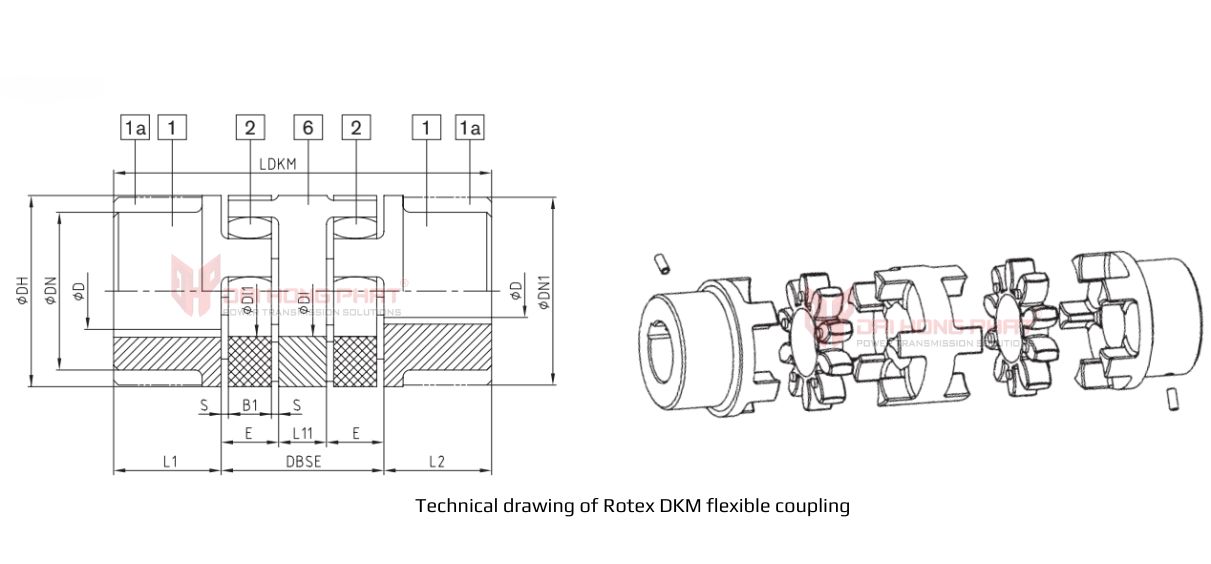

5. Technical specifications of KTR Rotex DKM coupling:
| Catalogue Rotex DKM Flexible Coupling |
Installation Instruction Rotex DKM Flexible Coupling |
||||||
 |
|
| Coupling Size |
Spider (part 2) Rated torque [Nm] |
Dimensions [mm] | ||||||||
| 92 Sh-A | 98 Sh-A | DH | Dl1 | L1; L2 | L11 | E | S | B1 | LDKM | |
| DKM-19 | 10 | 17 | 40 | 18 | 25 | 10 | 16 | 2.0 | 12 | 92 |
| DKM-24 | 35 | 60 | 55 | 27 | 30 | 16 | 18 | 2.0 | 14 | 112 |
| DKM-28 | 95 | 160 | 65 | 30 | 35 | 18 | 20 | 2.5 | 15 | 128 |
| DKM-38 | 190 | 325 | 80 | 38 | 45 | 20 | 24 | 3.0 | 18 | 158 |
| DKM-42 | 265 | 450 | 95 | 46 | 50 | 22 | 26 | 3.0 | 20 | 174 |
| DKM-48 | 310 | 525 | 105 | 51 | 56 | 24 | 28 | 3.5 | 21 | 192 |
| DKM-55 | 410 | 685 | 120 | 60 | 65 | 28 | 30 | 4.0 | 22 | 218 |
| DKM-65 | 625 | 940 | 135 | 68 | 75 | 32 | 35 | 4.5 | 26 | 252 |
| DKM-75 | 1280 | 1920 | 160 | 80 | 85 | 36 | 40 | 5.0 | 30 | 286 |
| DKM-90 | 2400 | 3600 | 200 | 100 | 100 | 40 | 45 | 5.5 | 34 | 330 |
What are your benefits when buying Rotex DKM flexible coupling at Dai Hong Phat Company?
– Established in 1950 and operating for many years, KTR has strongly developed coupling products for heavy industry.
– Dai Hong Phat has cooperated with partner KTR from Germany, a leading manufacturer of power transmission equipment in Europe and around the world.
– Dai Hong Phat commits that Rotex DKM coupling are 100% genuine coupling products, new quality, with certificates, clear origin of the product.
– The core value of cooperation is to bring great benefits to customers with optimized solutions for shaft coupling products, KTR Rotex DKM coupling products are exclusively distributed by Dai Hong Phat Company.
