ROFLEX SH FLEXIBLE COUPLING

Roflex-SH (Torsionally Flexible Coupling Roflex-SH) is a safe, flexible shaft coupling for transmitting torsional vibration damping forces. The coupling is designed with 3 parts made of high quality cast iron alloy. The coupling is easy to assemble/disassemble via four screws, quick replacement of shock-absorbing rubber.

Category: KTR Flexible Couplings Tags: KTR Germany, Authorized Distributor of KTR, Roflex SH Coupling, Roflex SH Flexible Coupling, KTR Flexible Couplings, Authorized Distributor, KTR Vietnam, Couplings, Flexible couplings, KTR Germany couplings, shaft couplings, ktr couplings

Description

5/5 - (1 vote)

1. Why choose Dai Hong Phat as a supplier of Roflex-SH couplings?

Dai Hong Phat is an authorized distributor for coupling KTR Germany in Vietnam. KTR is a famous brand from Germany, chosen by distributors in many countries around the world. Therefore, customers can be completely assured of product quality, find and choose products that suit their needs at Dai Hong Phat.

Outstanding benefits when you buy Roflex-SH flexible coupling from Dai Hong Phat:

– Buy genuine products imported directly from the manufacturer.
– Protect your risks, against counterfeit goods.
– Provide full CO/CQ documents for you.
– Goods in stock, ready for fast delivery.
– Provide technical drawings for customers (upon request).
– A team of highly skilled technical experts for dedicated support.
– Free consultation on optimal solutions for your factory.
– Provide genuine Catalogues for products.
– Free conversion of technical parameters and dimensions upon request.
– Nationwide delivery 24/7, helping you minimize machine downtime.
– Have a professional processing workshop according to your specific requirements.

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

2. Dai Hong Phat Corp. is a representative specializing in providing all KTR products throughout Vietnam:

Dai Hong Phat is a company specializing in providing equipment and components of good quality and reasonable cost to customers, so it is of interest to many customers. With the same goal of bringing benefits to customers, Dai Hong Phat has become an authorized representative of KTR Germany in Vietnam (KTR Distributor in Vietnam).

Mr. Arthur Low – Director of KTR Singapore visited Dai Hong Phat Company on a business trip

mr-arthur-low-director-of-ktr-singapore-visited-dai-hong-phat-company-on-a-business-trip

Certificate of Dai Hong Phat as official dealer of KTR Germany in Vietnam

ktr-goods-agent-certificate

3. Features of KTR Roflex-SH Flexible Coupling:

– Origin: KTR/Germany.
– Roflex-SH shaft coupling has torsional flexibility and safety with compact design.
– DIN 740 standard coupling is created through a crack.
– It is a short shaft coupling consisting of three parts used to transmit torsional vibration reduction force.
– The coupling is easy to assemble/disassemble through four screws.
– Torque: 80Nm – 5000Nm.
– Rotation speed: from 3000 – 7500 rpm.

4. Features of KTR Roflex SH Shaft Coupling:

KTR Roflex-SH flexible coupling is a torsional flexibility, safe shaft coupling consisting of three parts used to transmit torsional vibration reduction force. With a compact design and safe operation, it is a great advantage highly appreciated by users. Couplings meeting DIN 740 standards are widely used in general industries and especially the pump industry.

5. Technical specifications of Roflex-SH shaft couplings:

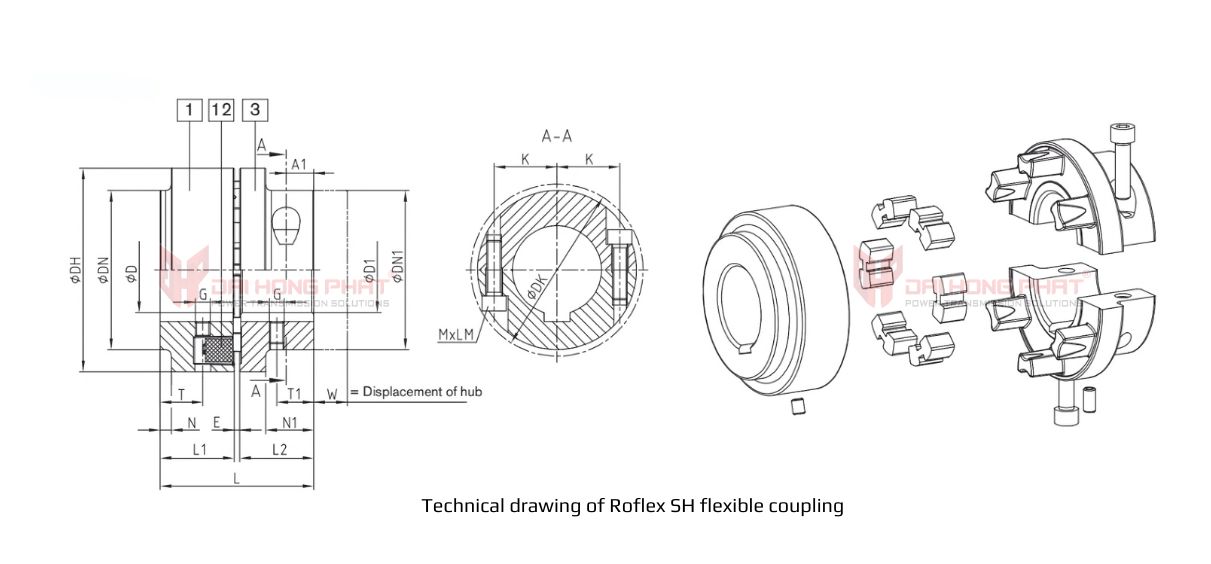

Catalogue KTR Roflex SH Coupling				Installation KTR Roflex SH Coupling

roflex-sh-flexible-coupling

Size	T_KN	T_Kmax	Max. speed [rpm]	Dimensions [mm]					Weight [kg]
Size	[Nm]	[Nm]	Max. speed [rpm]	D	D1	L	N	N1	Weight [kg]
SH-80	80	220	7500	35	38	63	–	20	1.3
SH-95	125	345	6800	45	42	73	5	23	2
SH-110	205	565	6500	50	48	83	6	26	3.1
SH-125	315	865	5800	60	55	103	14	32	4.5
SH-140	450	1240	5400	70	60	113	21	35	5.7
SH-160	790	2170	4800	75	65	124	21	40	8.5
SH-180	1150	3160	4350	85	75	144	28	50	11.6
SH-200	1800	4950	3950	90	85	164	33	56	17.8
SH-225	2100	5775	3600	100	90	184	38	73	20.4
SH-250	3550	9765	3000	110	100	205.5	40	82	28.2
SH-280	5000	13750	3000	120	120	225.5	45	90	38.1

Why should you choose KTR Roflex-SH shaft coupling products supplied by Dai Hong Phat?

– Established since 1950, KTR has grown strongly in Europe and around the world in coupling products for heavy industry.
– Dai Hong Phat cooperates with partner KTR from Germany, a leading manufacturer of power transmission equipment in Europe and around the world.
– The core value of cooperation is to bring great benefits to customers in shaft coupling solutions, not only in Vietnam but also in countries in the Southeast Asia region. Products are distributed by Dai Hong Phat.
