2. Characteristics of the Gear Couplings TNZ ZCHUU:
– The gear couplings TNZ ZCHUU is manufactured by Ringfeder/Germany.
– Sturdy high-quality steel torsionally rigid gear coupling
– Compact design leading to high energy density
– Compensation for angular, radial, and axial shaft misalignment
– Suitable for use at temperatures up to +120°C
– Bore diameter up to 270 mm
– Torque up to T Kn = 195,000 Nm / T Kmax = 390,000 Nm.
– Speed up to n max = 6,000 rpm
– Elastic O-ring can be replaced without moving connected machinery
– Available with split steel sleeves (ZCA/ZCB – ZCA machine type range also available in ZCB design) and one-piece steel sleeves (ZCH)
– The Ringfeder TNZ ZCHUU gear coupling is a flexible shaft connection, positively transmitting torque thanks to the toothed rotating shafts, also suitable for effectively compensating shaft misalignments, radial runout, and angular misalignment.
– Ringfeder TNZ ZCHUU, lubricated with high-quality grease with extremely high-pressure additives, achieves minimal restoring forces and thus ensures reliable, almost wear-free operation. The unique module system provides users with maximum flexibility in assembling precisely fitting coupling designs – matching components, such as brake discs or drums and torsion shafts, can be adjusted to meet specific requirements.
– The TNZ ZCHUU gear coupling bells have straight internal teeth while the hubs have external teeth with variable radii. As a result, the shafts can move within the housing space and thus compensate for the angular misalignment, radial runout, and axial misalignment of adjacent shaft ends within the specified tolerance. Depending on the type and size of the coupling, standard teeth allow angular misalignment of up to 0.5 degrees on each tooth plane and axial movement of several mm. Radial shaft displacement speed may occur depending on the distance between two tooth planes.
View more product “Gear Couplings TNZ ZCH“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Gear Couplings TNZ ZCHUU:
The Gear Couplings Ringfeder TNZ ZCHUU are widely used worldwide in all heavy industries where extremely high torque must be transmitted from one shaft to another. Ringfeder gear couplings are found in particularly heavy-duty applications, such as in the direct drive systems of conveyors, mixers, rolling mills, or table rollers.

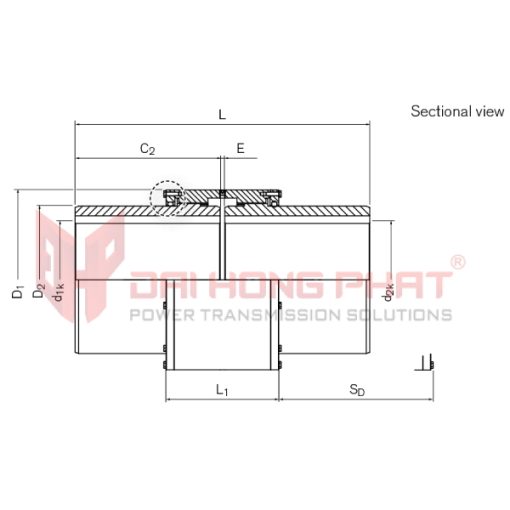

4. Technical drawing of the Gear Couplings TNZ ZCHUU:
| Catalogue Ringfeder TNZ ZCHUU |
Installation Ringfeder TNZ ZCHUU |
||||||
 |
|
| Coupling Model |
Torque [Nm] | nmax | Dimension [mm] | Gw | ||||
| TKN | TKmax | 1/min | d1k min – max |
D1 | D2 | L | [kg] | |
| ZCHUU 69 | 1750 | 3500 | 6000 | 12_50 | 98 | 69 | 209 | 8.2 |
| ZCHUU 85 | 2750 | 5500 | 4600 | 18 – 60 | 115 | 85 | 225 | 12.3 |
| ZCHUU 107 | 5500 | 11000 | 4200 | 28 – 75 | 145 | 107 | 241 | 20.9 |
| ZCHUU 133 | 8500 | 17000 | 4000 | 40 – 95 | 176 | 133 | 291 | 38.1 |
| ZCHUU 152 | 13500 | 27000 | 3850 | 50 – 110 | 196 | 152 | 307 | 49.6 |
| ZCHUU 179 | 22000 | 44000 | 3700 | 60 – 130 | 225 | 179 | 334 | 71.1 |
| ZCHUU 209 | 35000 | 70000 | 3200 | 70 – 155 | 256 | 209 | 384 | 109.4 |
| ZCHUU 234 | 43000 | 86000 | 2900 | 85 – 170 | 286 | 234 | 440 | 152.9 |
| ZCHUU 254 | 68000 | 136000 | 2600 | 95 – 190 | 310 | 254 | 514 | 203.2 |
| ZCHUU 279 | 82000 | 164000 | 2300 | 110 – 210 | 345 | 279 | 518 | 251.1 |
| ZCHUU 305 | 150000 | 300000 | 2100 | 120 – 230 | 375 | 305 | 518 | 300.4 |
| ZCHUU 355 | 195000 | 390000 | 1800 | 130 – 270 | 430 | 355 | 506 | 406 |
