Let’s learn about Ringfeder Gear Couplings TNZ ZCH with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Gear Couplings TNZ ZCH products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
See more: Other TNZ Ringfeder Gear Couplings

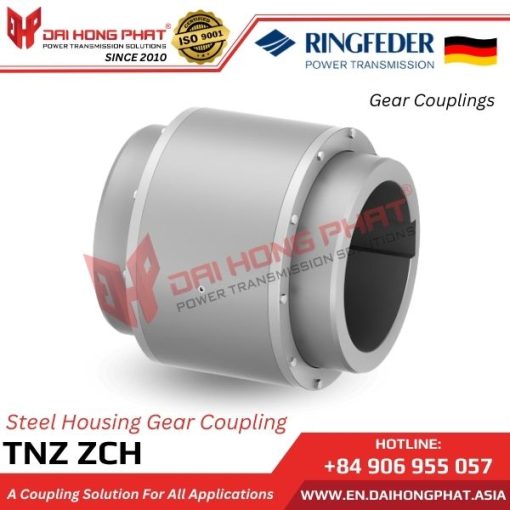

2. Characteristics of the Gear Couplings Ringfeder TNZ ZCH:
– The Gear Couplings TNZ ZCH are manufactured by Ringfeder/Germany.
– The gear coupling is robustly made of high-quality steel.
– Its compact design results in high energy density.
– It compensates for angular, radial, and axial misalignment.
– Suitable for use at temperatures up to +120°C.
– Bore diameters up to 270 mm.
– Torque up to T Kn = 195,000 Nm / T Kmax = 390,000 Nm.
– Maximum speed up to n max = 6,000 rpm.
– The elastomer O-ring can be replaced without the need to move the connected machinery.
– Available with split steel sleeves (ZCA / ZCB – ZCA machine type range also available in ZCB design) and one-piece steel sleeves (ZCH).
– The Ringfeder TNZ ZCH gear coupling is a flexible shaft connection, transmitting torque positively thanks to rotating spline shafts, also suitable for effectively compensating for shaft misalignments, radial deviations, and angular misalignments.
View more product “Gear Couplings TNZ ZCAV/ZCBV“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Gear Couplings TNZ ZCH:
The Gear Couplings TNZ ZCH is widely used worldwide across all heavy industries where there is a need to transmit extremely high torsional moments from one shaft to another. Ringfeder gear couplings are particularly suited for heavy-duty applications, such as in direct drive systems of conveyors, mixers, rolling mills, or table rolls.

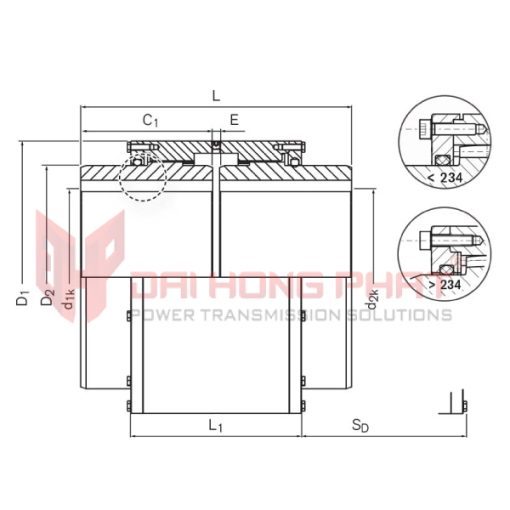

4. Technical drawing of the Gear Couplings TNZ ZCH:
| Catalogue Ringfeder TNZ ZCH |
Installation Ringfeder TNZ ZCH |
||||||
 |
|
| Coupling Model |
Torque [Nm] | nmax | Dimensions [mm] | Gw | ||||
| TKN | TKmax | 1/min | d1/d2 | D1 | D2 | L | [kg] | |
| ZCH 69 | 1750 | 3500 | 6000 | 12_50 | 98 | 69 | 89 | 4.6 |
| ZCH 85 | 2750 | 5500 | 4600 | 18 – 60 | 115 | 85 | 103 | 7 |
| ZCH 107 | 5500 | 11000 | 4200 | 28 – 75 | 145 | 107 | 127 | 13.3 |
| ZCH 133 | 8500 | 17000 | 4000 | 40 – 95 | 176 | 133 | 157 | 24.5 |
| ZCH 152 | 13500 | 27000 | 3850 | 50 – 110 | 196 | 152 | 185 | 33.8 |
| ZCH 179 | 22000 | 44000 | 3700 | 60 – 130 | 225 | 179 | 216 | 50.5 |
| ZCH 209 | 35000 | 70000 | 3200 | 70 – 155 | 256 | 209 | 246 | 75.9 |
| ZCH 234 | 43000 | 86000 | 2900 | 85 – 170 | 286 | 234 | 278 | 104.7 |
| ZCH 254 | 68000 | 136000 | 2600 | 95 – 190 | 310 | 254 | 308 | 131.7 |
| ZCH 279 | 82000 | 164000 | 2300 | 110 – 210 | 345 | 279 | 358 | 185.4 |
| ZCH 305 | 150000 | 300000 | 2100 | 120 – 230 | 375 | 305 | 388 | 236.6 |
| ZCH 355 | 195000 | 390000 | 1800 | 130 – 270 | 430 | 355 | 450 | 368 |
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from Ringfeder Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
