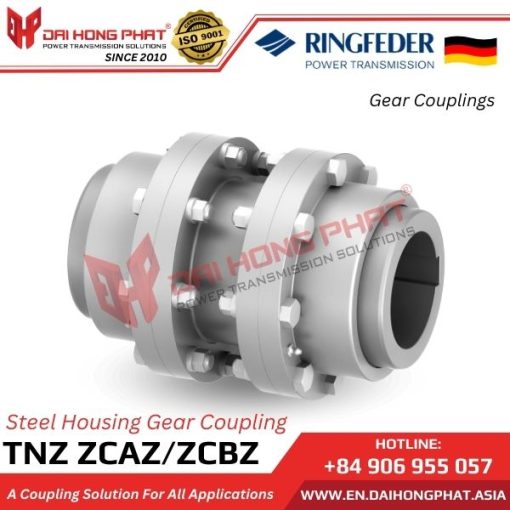

TNZ ZCAZ/ZCBZ GEAR COUPLING

1. Dai Hong Phat Corp. is the exclusive representative specialized in supplying all products of  Gear Couplings Ringfeder TNZ throughout Vietnam:

– Ringfeder, established in 1922, has nearly 100 years of professional experience in the power transmission and shock absorption industry. With unparalleled expertise and techniques, Ringfeder provides top-notch products and services to customers.
– Dai Hong Phat Company is an importer and distributor of 100% genuine flange couplings from the Ringferder brand across Vietnam and the Southeast Asia region. (Authorized Distributor for Ringfeder Products in Vietnam, Laos, Cambodia, Philippines, …).
– We, Dai Hong Phat, commit to over 10 years of reputation. Our company ensures customers to purchase 100% genuine Gear Couplings TNZ ZCAZ/ZCBZ with high quality and the best prices on the market.

2. Characteristics of the Gear Couplings TNZ ZCAZ/ZCBZ:

– The Gear Couplings TNZ ZCAZ/ZCBZ are manufactured by Ringfeder/Germany.
– Gear coupling made of high-quality steel.
– Compact design for high energy density.
– Allows compensation for angular misalignment, parallel misalignment, and axial displacement. Depending on the type and size of the standard gear coupling, angular misalignment of up to 0.5 degrees per gear face and axial movement of a few millimeters are permissible. The maximum axial displacement depends on the distance between two gear faces.
– Suitable for use at temperatures up to +130°C.
– Elastic O-ring can be replaced without moving the connected machinery.
– Bore diameter up to 270 mm.
– Torque up to T Kn = 195,000 Nm / T Kmax = 390,000 Nm.
– Maximum speed up to n max = 6,000 rpm.
– Ringfeder TNZ ZCAZ/ZCBZ gear couplings provide flexible shaft connections, transmitting torque efficiently through rotating shafts. They are also suitable for effectively compensating for shaft misalignment, parallel misalignment, and angular misalignment.

View more product “Gear Couplings TNZ ZCA/ZCB“

3. Applications of the Ringfeder Gear Couplings TNZ ZCAZ/ZCBZ:

The Ringfeder Gear Couplings TNZ ZCAZ/ZCBZ are widely used worldwide in all heavy industries where transferring extremely high torque from one shaft to another is necessary. This type of coupling finds extensive applications in heavy-duty direct drive systems such as conveyors, mixers, rolling mills, and table rolls.

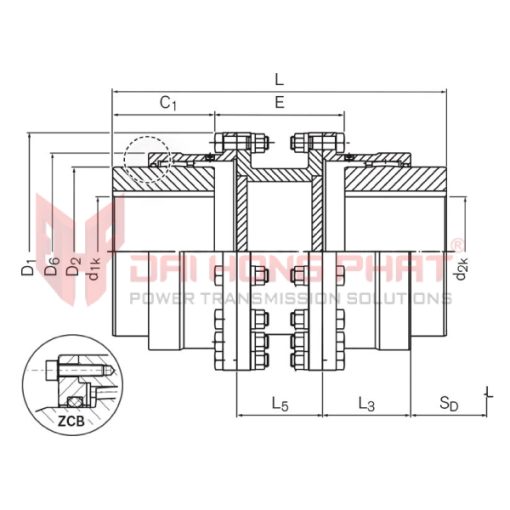

4. Technical drawing of the Gear Couplings Ringfeder TNZ ZCAZ/ZCBZ:

Catalogue Ringfeder TNZ ZCAZ/ZCBZ				Installation Ringfeder TNZ ZCAZ/ZCBZ

5. Why choose Dai Hong Phat Corp. as your supplier for Ringfeder Gear Couplings?

– Our customers will have the opportunity to purchase genuine Ringfeder flange couplings imported directly from Ringfeder Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine Ringfeder TNZ ZCAZ/ZCBZ products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Gear Couplings Ringfeder TNZ ZCAZ/ZCBZ will be provided to our customers.
– With a readily available stock of Ringfeder TNZ ZCAZ/ZCBZ, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine Ringfeder Gear Coupling products from the Ringfeder brand.
– Our customers will receive the official Ringfeder shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for Ringfeder Gear Couplings TNZ ZCAZ/ZCBZ products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.
