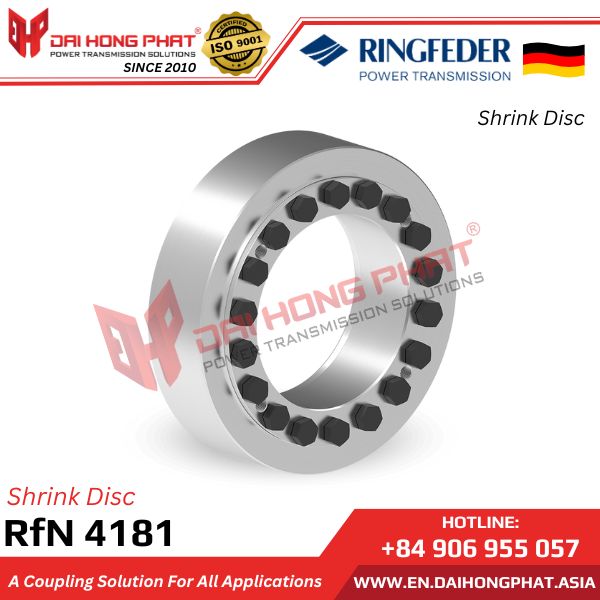

RfN 4181 SHRINK DISC

The Ringfeder Shrink Disc RfN 4181 features heavy-duty clamping with two sets of tightening elements, along with additional guiding mechanisms for the inner ring. This design enables the transmission of extremely high torque. The shrink disc can handle torques of up to 8 million Nm, with an outer diameter (D) of up to 1230mm and an inner diameter (d) of up to 800mm.

Category: Ringfeder Shrink Discs Tags: Ringfeder Philippines, Shrink disc wind turbine, Shrink disc, Shaft lock, Shaft clamping element, Ringfeder Cambodia, Authorized Distributor for Ringfeder Products in Cambodia, Authorized Distributor for Ringfeder Products in Philippines, Authorized Distributor for Ringfeder Products in Laos, Authorized Distributor for Ringfeder Products in Vietnam, Ringfeder Laos, Ringfeder distributors, Shrink Discs RfN 4181, RINGFEDER RFN 4181, Ringfeder Germany

Description

5/5 - (1 vote)

1. Why choose Dai Hong Phat Corp. as your supplier for Ringfeder RfN 4181?

– Genuine Ringfeder RfN 4181 shrink disc imported from Ringfeder Germany.
– Risk protection, against counterfeit Ringfeder RfN 4181.
– Full CO/CQ documentation for Ringfeder RfN 4181.
– Clamping elements always in stock, fast delivery.
– Provide technical drawings upon request.
– Dedicated support and consultation on Ringfeder RfN 4181.
– Free consultation for optimal factory solutions.
– Provide genuine Ringfeder RfN 4181 catalogues.
– Free technical specification conversion upon request.
– Nationwide delivery 24/7, minimizing downtime.
– Professional machining workshop for customization.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Ringfeder RfN 4181 in Vietnam:

– Dai Hong Phat Company is the exclusive importer and distributor of all 100% genuine Ringfeder products throughout Vietnam and the Southeast Asia region. (Authorized Distributor for Ringfeder Products in Vietnam, Laos, Cambodia, Philippines, …).
– With over 15 years of reputable service, Dai Hong Phat ensures customers acquire Shrink Disc RfN 4181 that are 100% authentic, high-quality, and competitively priced in the market.

3. Characteristics of Shrink Disc Ringfeder RfN 4181:

– Shrink Disc RfN 4181 is manufactured by Ringfeder/Germany.
– Inner diameter d: 220-800 mm.
– Outer diameter D: 370-1,230 mm.
– Total length L: 115-373 mm.
– Torque T: 160,000-8Mio Nm.
– The locking screws are tightened to ensure tight contact surfaces, preventing the ingress of dirt and moisture. It offers easy adjustment without requiring stop points, locking pins, or shaft grooves, allowing the hollow shaft to be positioned and locked at any point and angle on the shaft.
– The Ringfeder RfN 4181 shrink disc is a method for achieving proper clamping, featuring a two-part design consisting of a tightening ring with tapered holes and an inner conical ring. It is an expanded and functional version of the RfN 4161.
– The Ringfeder RfN 4181 is arranged around the center of gravity to provide concentric connection capability and suitable balance for high-speed applications. Traditional shrink disc devices require complex calculations, close machining tolerances, and good surface finishes, and they can also be difficult to install and remove.

View more product “Shrink Disc RfN 4091“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Shrink Disc RfN 4181:

The Ringfeder Shrink Disc RfN 4181 reduces surface tensile forces in the connected components. This shrink disc device is primarily used in cases of extremely thin-walled hollow shafts or hollow shafts with low yield limits, typically made of materials such as gray cast iron or aluminum, such as aluminum conveyor pulleys or thin-walled levers.

5. Technical of Shrink Disc RfN 4181:

Catalogue Ringfeder RfN 4181				Installation Ringfeder RfN 4181

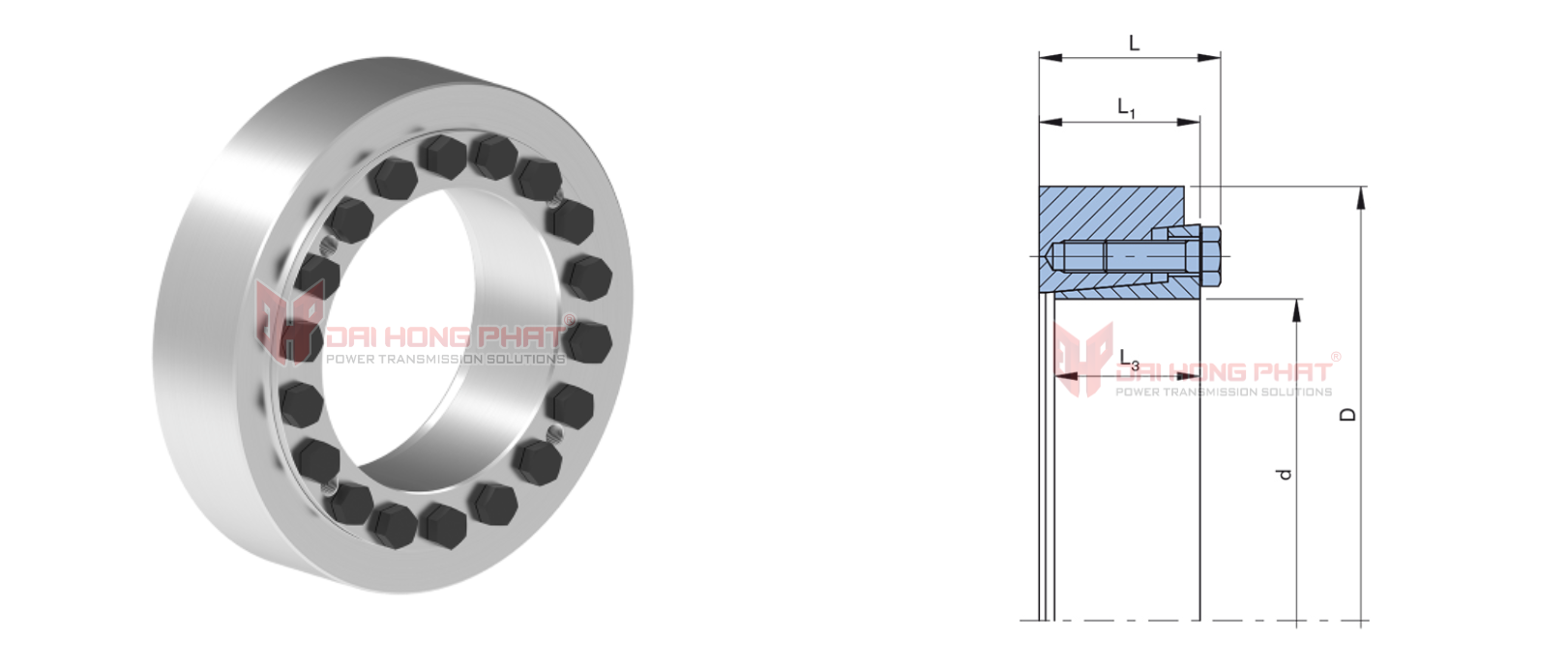

*Technical drawing of Shrink Disc RfN 4181*
