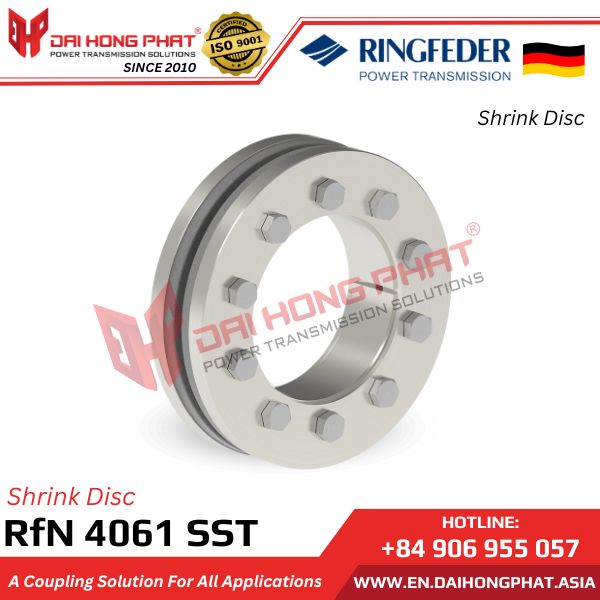

RfN 4061 SST SHRINK DISC

The Ringfeder Shrink Disc RfN 4061 SST consists of pressure-bearing rings forged from high-quality alloy steel and special high-strength stainless steel bolts. This combination ensures optimal stress distribution and utilizes materials that are ideal for corrosion resistance, thus providing resilience against external impacts.

Description

5/5 - (1 vote)

1. Why choose Dai Hong Phat Corp. as your supplier for Ringfeder RfN 4061 SST?

– Our customers will have the opportunity to purchase genuine Shrink Disc RfN 4061 SST imported directly from Ringfeder Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Shrink Disc Ringfeder products will be provided to our customers.
– With a readily available stock of Ringfeder RfN 4061 SST, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine products from the Ringfeder brand.
– Our customers will receive the official Ringfeder shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for Shrink Disc Ringfeder products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Shrink Disc Ringfeder in Vietnam:

– Dai Hong Phat Company is the exclusive importer and distributor of all 100% genuine Ringfeder products throughout Vietnam and the Southeast Asia region. (Authorized Distributor for Ringfeder Products in Vietnam, Laos, Cambodia, Philippines, …).
– With over 15 years of reputable service, Dai Hong Phat ensures customers acquire Shrink Disc RfN 4061 SST that are 100% authentic, high-quality, and competitively priced in the market.

3. Characteristics of Shrink Disc Ringfeder RfN 4061 SST:

– The RfN 4061 SST (Shrink Discs RfN 4061 Stainless Steel) is manufactured by Ringfeder/Germany.
– Ringfeder RfN 4061 SST is similar to Ringfeder RfN 4061 but it is made of high-quality stainless steel material.
– Inner diameter d: 14-200 mm.
– Outer diameter D: 37-350 mm.
– Total length L: 16-102 mm.
– Maximum torque T: 30-87,200 Nm.
– The Ringfeder RfN 4061 SST Shrink Discs can have high torque transmission values, allowing for adjustment of tightening torque values to suit the specific design requirements. They offer high reliability suitable for static or dynamic loads. They are easy to replace and install.
– Made of stainless steel, these Shrink Discs distribute stress effectively to resist corrosion and reduce external impacts, meeting various application requirements.
– Tightening the locking screws ensures that the contact surfaces are pressed together tightly, preventing the ingress of dirt and moisture. The inner ring has grooves to reduce pressure on the hollow shaft and shaft. After loosening the locking screws, the Ringfeder RfN 4061 SST will release and move freely on the shaft.

View more product “Shrink Disc RfN 4071“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Shrink Disc RfN 4061 SST:

Shrink Discs like Shrink Disc RfN 4061 SST minimize surface tension in connected components. These are primarily used in cases of extremely thin hollow shafts or hollow shafts with limited low-flow materials such as aluminum or thin lever shafts.
The Ringfeder RfN 4061 SST Shrink Disc, made entirely of stainless steel, are perfectly suited for applications with high requirements for safety and hygiene, such as:
– Food and beverage manufacturing and processing industries.
– Production of medical equipment and devices, …
These Shrink Discs not only reduce surface tension but also ensure compliance with stringent safety and hygiene standards, making them ideal for use in sensitive industries like food and medical equipment manufacturing.

5. Technical of Shrink Disc RfN 4061 SST:

Catalogue Ringfeder RfN 4061 SST				Installation Ringfeder RfN 4061 SST

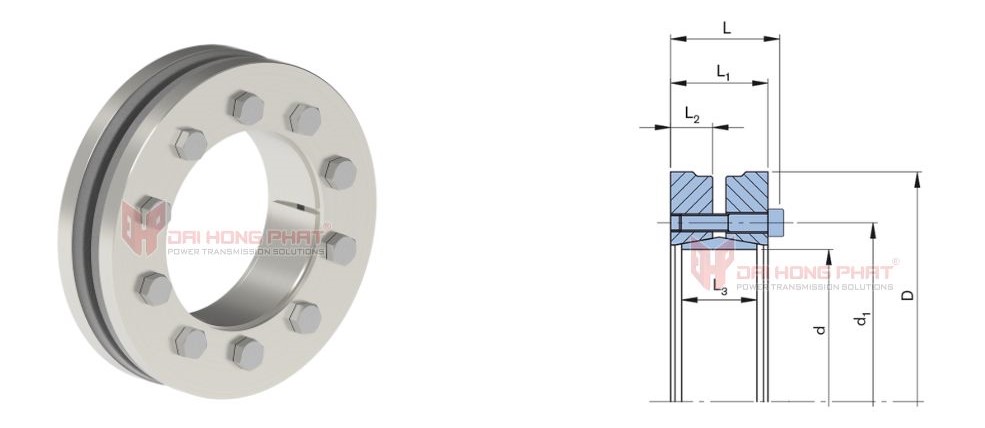

Technical drawing of Shrink Disc RfN 4061 SST

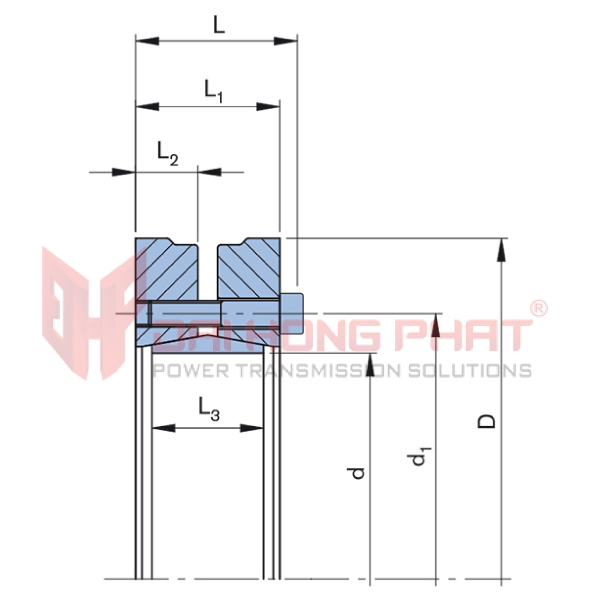

Technical drawing of Shrink Disc RfN 4061 SST

Shrink Discs dimensions							TA	Transmissible torques or axial forces		P	sv	High-strength special screws ISO 4762		Gw	Tmax
d x D	dw	d1	L	L1	L2	L3		T	Fax			nSc	DG
mm	mm	mm	mm	mm	mm	mm	Nm	Nm	kN	N/mm²	N/mm²		mm	kg	Nm
14 x 37	10	24	16	12	5	9	2.4	30	8	278	415	3	M4	0.1	37.5
	11							37	8		474				46
	12							48	10		557				60
16 x 41	12	27	20	15	6.25	12	4	70	15	336	509	4	M5	0.1	90
	13							90	18		575				110
	14							110	20		774				130
18 x 44	14	29	20	15	6.25	12	4	90	16	299	459	4	M5	0.2	110
	15							100	18		523				130
	16							120	20		705				160
20 x 46	15	32	22.5	17.5	7	12	4	110	20	336	462	5	M5	0.2	140
	16							140	22		497				170
	17							160	24		580				200
21 x 50	16	36	24	19	8	15	5	200	31	384	534	6	M5	0.2	250
	17							230	34		602				290
	18							260	37		746				330
24 x 50	19	36	24	19	8	15	5	240	32	336	495	6	M5	0.2	300
	20							270	35		554				340
	21							300	38		679				390
30 x 60	24	44	26.5	21.5	8.5	17	5	350	38	261	390	7	M5	0.2	450
	25							400	41		426				500
	26							440	43		492				560
36 x 72	28	52	29.5	23.5	10	18	12	590	53	303	390	5	M6	0.5	730
	30							690	58		438				860
	31							700	58		536				890
38 x 72	29	55	32	26	10	21	12	700	62	295	378	6	M6	0.5	890
	30							770	65		394				970
	31							780	63		474				980
40 x 72	30	57	30.5	24.5	10.5	19	12	720	61	310	375	6	M6	0.5	900
	31							730	59		450				910
	32							790	62		460				990
44 x 80	32	63	32	26	11	20	12	800	63	312	429	7	M6	0.5	1000
	35							1000	73		444				1250
	36							1050	76		458				1350
48 x 80	36	68	32	26	11	22	12	900	65	260	371	7	M6	0.6	1150
	38							1050	72		380				1350
	40							1200	78		403				1550
50 x 90	38	70	33.5	27.5	11.5	22.5	12	1350	89	314	418	9	M6	0.9	1650
	40							1500	96		433				1900
	42							1700	103		467				2150
55 x 100	42	75	36.5	30.5	12	23	12	1300	78	248	343	8	M6	1.1	1600
	45							1550	87		359				1950
	48							1800	96		410				2300
62 x 110	48	86	36.5	30.5	12.5	23	12	2400	126	330	407	12	M6	1.3	3000
	50							2650	133		419				3300
	52							2800	136		482				3500
68 x 115	50	86	36.5	30.5	12	23.5	12	1900	95	245	314	10	M6	1.4	2350
	55							2250	104		367				2850
	60							2850	121		411				3600
75 x 138	55	100	40.5	32.5	13	25	30	2650	121	277	377	7	M8	2.3	3300
	60							3300	139		382				4150
	65							4050	158		416				5100
80 x 145	60	100	40.5	32.5	13	25	30	3200	126	259	353	7	M8	2.5	4000
	65							3900	143		358				4900
	70							4600	160		392				5750
85 x 155	60	114	48.5	40.5	16	30	30	4850	189	325	404	11	M8	3.5	6050
	65							5800	212		407				7250
	70							6800	235		427				8500
90 x 155	65	114	47	39	16	30	30	4800	174	274	353	10	M8	3.3	6000
	70							6050	195		356				7550
	75							7300	215		372				9150
95 x 170		127	55.1	47.1	19	34	30	5350	195	275	349	12	M8	4.7	6700
	65							6750	217		349				8450
								8150	240		355				10200
100 x 170		127	55.1	47.1	19	34	30	6950	202	261	331	12	M8	4.5	8700
	70							7600	223		331				9500
								9100	245		338				11350
110 x 185		145	63	53	21.5	42	59	8150	259	254	316	10	M10	6.3	10150
	75							10100	285		316				12600
								12200	296		357				15250
115 x 185	80	145	66	56	21.5	42	59	9500	267	243	302	10	M10	6.1	11850
	90							12100	302		342				15100
	95							14050	329		353				17550
125 x 215	85	160	64	54	23	42	59	11050	300	269	354	12	M10	8.7	13800
	90							13100	327		352				16350
	95							15150	355		352				18950
140 x 230	95	175	72.5	60.5	26	46	100	15100	365	263	336	10	M12	10.6	18850
	100							17550	395		335				21900
	105							20000	424		335				25000
165 x 290	115	210	87	71	31	56	250	31400	601	280	334	8	M16	21.7	39300
	120							35500	637		335				44400
	125							39400	664		348				49250
185 x 330	135	236	102.4	86.4	38.2	71	250	52500	786	246	307	10	M16	36	65600
	140							57350	828		310				71650
	145							62400	870		314				78000
195 x 350	140	246	102	86	38.2	71	250	65950	943	280	332	12	M16	40	82450
	150							77600	1035		338				97000
	155							83750	1081		345				104700
200 x 350	150	246	102	86	38.2	71	250	75000	1000	273	326	12	M16	39	93750
	155							81000	1045		330				101200
	160							87200	1091		337				109000
