RfN 4061 SHRINK DISC

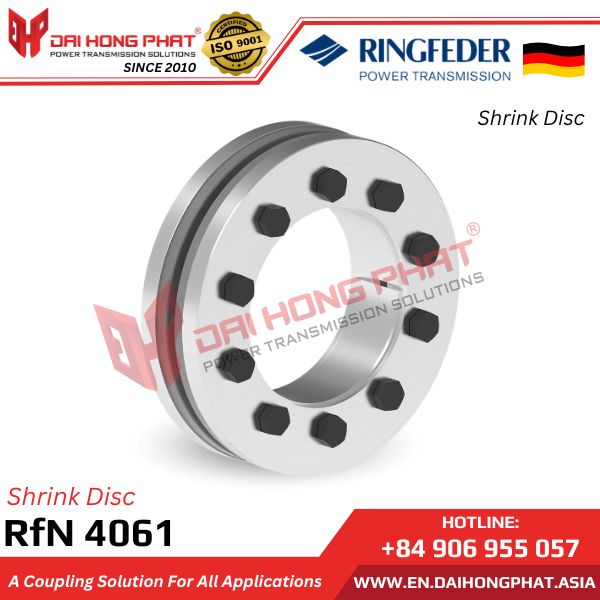

Shrink Disc RfN 4061 is directly derived from the RfN 4071 with a diameter of 200mm. This is the most popular type of shrink discs, offering high transmission values and adjustable tightening torque to suit specific technical requirements.

Category: Ringfeder Shrink Discs Tags: Ringfeder Laos, RfN 4061, Shrink disc wind turbine, Shrink disc, Shaft lock, Shaft clamping element, Ringfeder Cambodia, Authorized Distributor for Ringfeder Products in Cambodia, Authorized Distributor for Ringfeder Products in Philippines, Authorized Distributor for Ringfeder Products in Laos, Authorized Distributor for Ringfeder Products in Vietnam, Ringfeder Philippines, Ringfeder distributors, Shrink Discs RfN 4061, RINGFEDER RFN 4061, Ringfeder Shrink Discs, Ringfeder Germany, Dai Hong Phat

Description

5/5 - (1 vote)

1. Why choose Dai Hong Phat Corp. as your supplier for Shrink Disc Ringfeder?

– Our customers will have the opportunity to purchase genuine Shrink Disc RfN 4061 imported directly from Ringfeder Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Shrink Disc Ringfeder products will be provided to our customers.
– With a readily available stock of Shrink Disc, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine products from the Ringfeder brand.
– Our customers will receive the official Ringfeder shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for Shrink Disc Ringfeder products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Shrink Disc Ringfeder in Vietnam:

– Dai Hong Phat Company is the exclusive importer and distributor of all 100% genuine Ringfeder products throughout Vietnam and the Southeast Asia region. (Authorized Distributor for Ringfeder Products in Vietnam, Laos, Cambodia, Philippines, …).
– With over 15 years of reputable service, Dai Hong Phat ensures customers acquire Shrink Disc Rfn 4061 that are 100% authentic, high-quality, and competitively priced in the market.

3. Characteristics of Shrink Disc RfN 4061:

– Shrink Disc RfN 4061 is manufactured by Ringfeder/Germany.
– Inner diameter (d): 14-200 mm.
– Outer diameter (D): 37-350 mm.
– Total length (L): 15-96 mm.
– Torque (T): 30-87,200 Nm.
– The Ringfeder RfN 4061 Shrink Discs are designed based on the RfN 4071 model.
– It’s the most popular type of shrink discs, providing high torque transmission and adjustable tightening torque to suit specific technical requirements.
– The pressure rings are forged with high stability to distribute pressure effectively and resist cracking. They are suitable for a wide range of applications.
– By tightening the locking screws, the thrust rings are pulled together, compressing the inner ring and exerting pressure outwardly to clamp it onto the shaft.
– Placed around the hollow shaft, they have only one transmission interface, providing distinct advantages such as offering very concentric connections and suitable balance for high-speed applications.

View more product “Shrink Disc RfN 4071“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Shrink Disc RfN 4061:

The shrink discs minimize surface pressure on the connected parts. The shrink disc RfN 4061 is primarily used in cases where the wall thickness of the hollow shaft is extremely thin or the hollow shaft has limited low yield strength due to materials such as gray cast iron or aluminum, for instance in aluminum conveyor rollers or thin lever arms.

5. Technical of Shrink Disc RfN 4061:

Catalogue Ringfeder RFN 4061				Installation Ringfeder RFN 4061

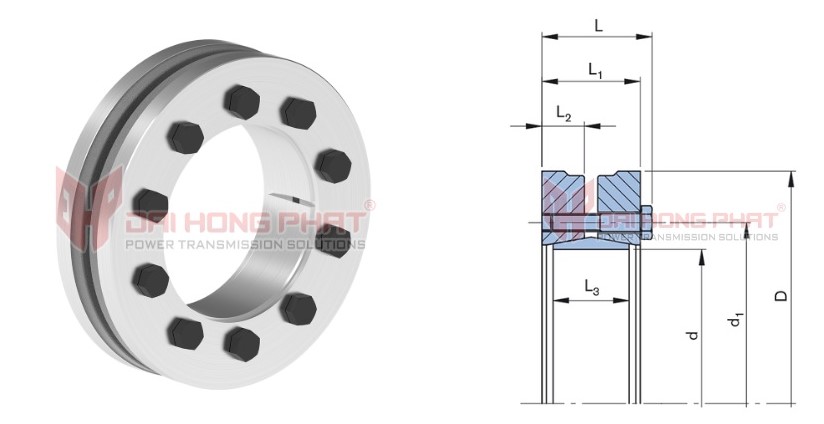

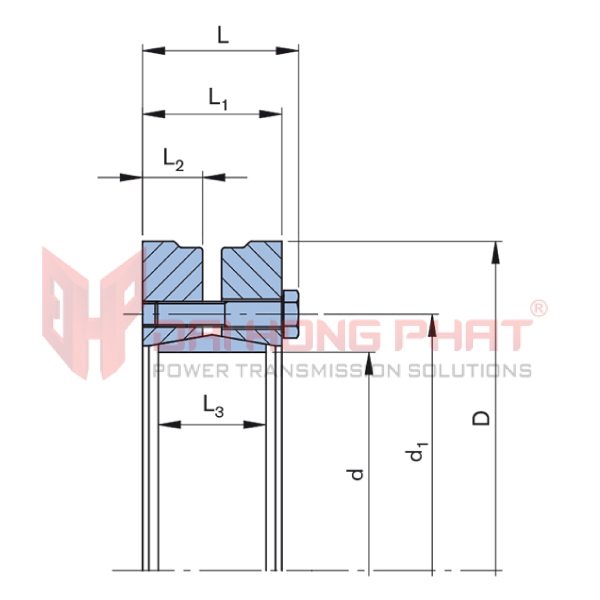

*Technical drawing of Shrink Disc RfN 4061*
