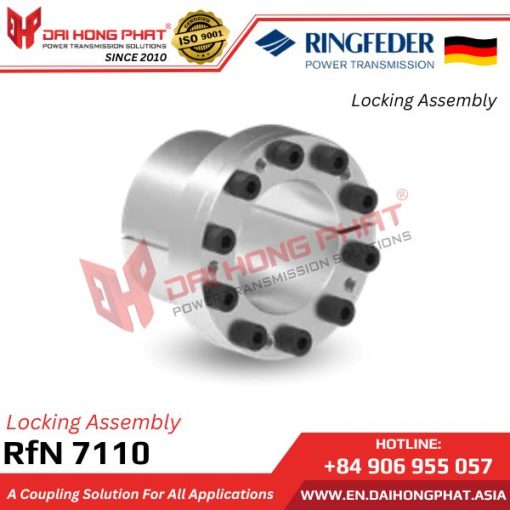

RfN 7110 LOCKING ASSEMBLY

The Locking Assemblies RfN 7110, with its compact size, offers economic savings and is suitable for applications with limited space. Its excellent self-centering capability ensures precise alignment, while the absence of axial movement during installation enhances stability.

Category: Ringfeder Locking Assemblies Tags: Ringfeder Việt Nam, Power transmission components, Ringfeder Cambodia, Authorized Distributor for Ringfeder Products in Cambodia, Authorized Distributor for Ringfeder Products in Philippines, Authorized Distributor for Ringfeder Products in Laos, Authorized Distributor for Ringfeder Products in Vietnam, Ringfeder Philippines, Ringfeder Laos, Ringfeder distributors, LOCKING ELEMENTS, power lock, Ringfeder locking assemblies, RFN 7110, RINGFEDER RFN 7110, Ringfeder

Description

5/5 - (5 votes)

1. Why choose Dai Hong Phat Corp. as the supplier for Ringfeder RfN 7110?

In the current Vietnamese market, there are numerous renowned brands in the field of manufacturing transmission equipment. Among them is Ringfeder, a well-known German brand specializing in high-quality transmission equipment. Therefore, Đại Hồng Phát has become the authorized representative for genuine Ringfeder products in Vietnam.

The outstanding benefits when purchasing Ringfeder products from Dai Hong Phat Corp. include:

– Procuring genuine Ringfeder locking assemblies RfN 7110 directly imported from the manufacturer.
– Safeguarding against risks and counterfeit products.
– Providing complete CO/CQ documentation for customers.
– Having readily available stock for quick delivery.
– Supplying technical drawings upon request.
– Dedicated and experienced technical support team.
– Offering free consultation for optimal solutions tailored to customers’ factories.
– Providing authentic product catalogues.
– Offering free customization of technical specifications and dimensions.
– Nationwide 24/7 delivery service to minimize downtime.
– Operating a professional machining workshop for custom requirements.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Ringfeder products throughout Vietnam:

Dai Hong Phat is a company specializing in providing high-quality genuine transmission equipment for factories, including shaft locking devices, locking assemblies, taper lock bushings, shaft couplings, heavy-duty chains, motors, and gearboxes, sourced from renowned global brands. Ringfeder is one of the brands that Dai Hong Phat Corp. has partnered with to offer a diverse range of products and provide customers with various options.

3. Characteristics of Locking Assemblies Ringfeder RfN 7110:

– The Locking Assemblies RfN 7110 are manufactured by Ringfeder/Germany.
– Ringfeder locking assemblies are self-centering.
– There is no axial movement.
– They exhibit low surface pressure.
– Inner diameter range (d): 8-130 mm.
– Outer diameter (D): 15-165 mm.
– Total length (L): 28-139 mm.
– Torque (T): 30-23,700 Nm.
– They offer excellent self-centering capabilities and no axial movement during installation. Low surface pressure makes them suitable for thin-walled hub shafts with low expansion limits.

*Locking Assemblies RfN 7110 at Dai Hong Phat*

View more product “Locking Assemblies RfN 7012“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Locking Assemblies RfN 7110:

The Locking Assemblies RfN 7110 is utilized to connect shafts together, chain wheels, gear assemblies, pulleys, and belt pulleys in various applications. This locking assembly employs a different approach to transmit torque. It features dual thrust rings, which, when tightened or expanded to generate compressive force between its shafts and contacting parts, lock tightly together unlike keyways.

5. Technical of Locking Assemblies RfN 7110:

With its compact dimensions, the Ringfeder locking assemblies RfN 7110 offer economic benefits, ideal for applications with limited space. It provides excellent self-centering capabilities and ensures no axial movement during installation. The device’s design facilitates easy maintenance, saving time and extending machinery lifespan by safeguarding components.

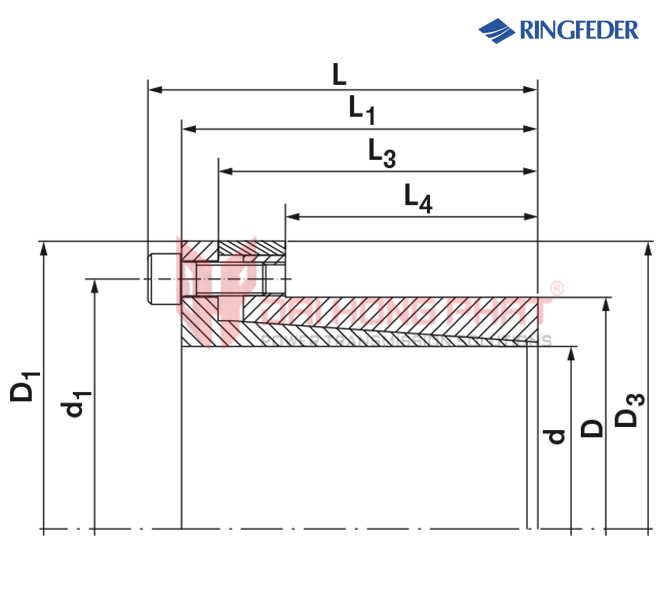

Technical of Locking Assemblies Ringfeder RfN 7110:

Catalogue Ringfeder RfN 7110				Installation Ringfeder RfN 7110

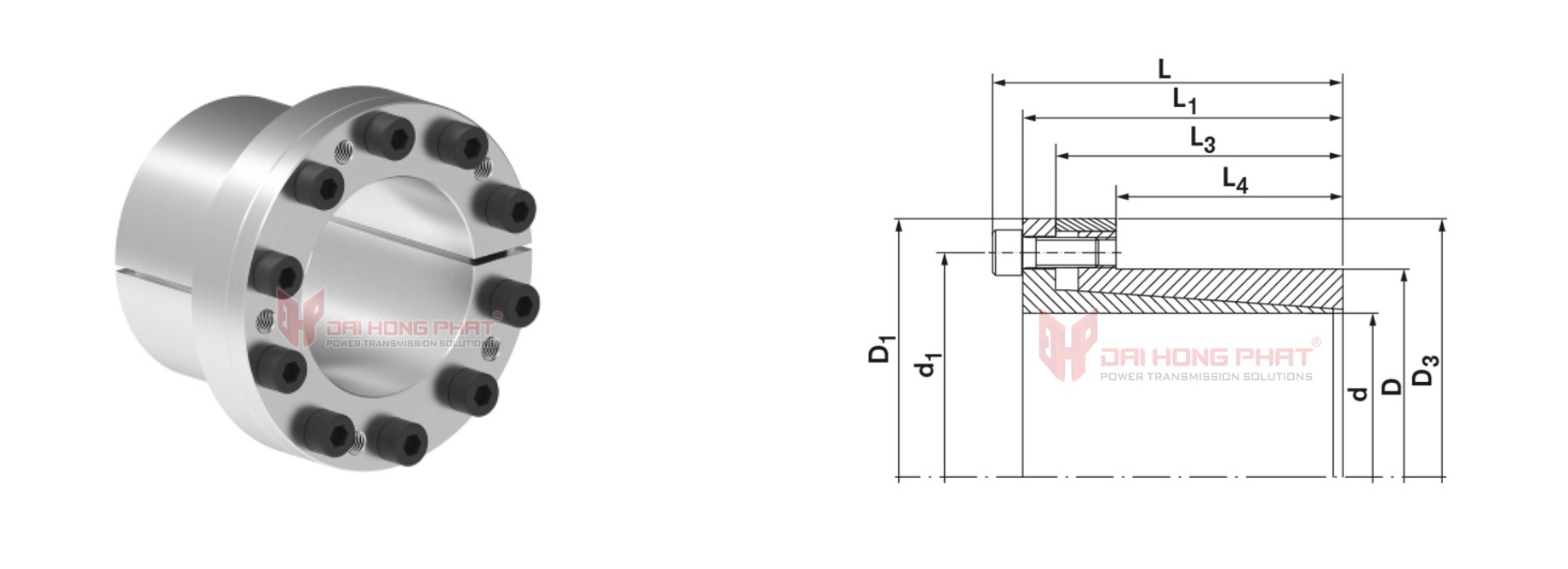

*Technical drawing of Locking Assemblies RfN 7110*

Dimensions [mm]					T	TA	Gw [kg]
dxD	D1	L	L1	d1	[Nm]		Gw [kg]
8×15	27	30	28	19	30	4	0.06
9×16	28	31	27	20	34	4	0.07
10×16	28	31	27	20	37	4	0.06
11×18	32	31	27	23	51	5	0.07
12×18	32	31	27	23	56	5	0.07
13×23	38	31	27	28	61	5	0.12
14×23	38	31	27	28	65	5	0.12
15×24	44	42	36	31	110	17	0.21
16×24	44	42	36	31	120	17	0.2
17×26	47	44	38	33	165	17	0.22
18×26	47	44	38	33	180	17	0.24
19×27	48	44	38	34	190	17	0.25
20×28	49	44	38	35	200	17	0.25
22×32	53	51	45	39.5	230	17	0.34
24×34	55	51	45	41.5	255	17	0.36
25×34	55	51	45	41.5	255	17	0.35
28×39	60	51	45	46	370	17	0.43
30×41	62	51	45	48	475	17	0.43
32×43	64	56	50	50.5	505	17	0.46
35×47	68	56	50	54	740	17	0.52
38×50	71	56	50	57	800	17	0.61
40×53	74	58	52	60	950	17	0.67
42×55	77	58	52	62	995	17	0.74
45×59	85	72	64	68.5	1750	41	1.12
48×62	87	72	64	71.5	1870	41	1.14
50×65	91	82	74	74.5	2430	41	1.3
55×71	98	82	74	80	2670	41	1.99
60×77	103	82	74	86	2920	41	2.22
65×84	110	82	74	93	3160	41	2.6
70×90	119	101	91	101	4330	83	3.76
75×95	126	101	91	106	5310	83	4.08
80×100	131	106	96	111	7580	83	4.41
85×106	137	106	96	117	7990	83	4.83
90×112	143	106	96	123	9960	83	5.26
95×120	153	106	96	131	10500	83	6.26
100×125	162	114	102	138	13600	145	7.66
110×140	177	119	107	153	15000	145	9.89
120×155	195	139	127	168	21800	145	13.64
130×165	205	139	127	178	23700	145	14.58

Customers purchasing the Ringfeder RfN 7110 locking assembly from Dai Hong Phat enjoy the following benefits:

– Dai Hong Phat corp. is the official authorized distributor of Ringfeder in Vietnam and the Southeast Asia region.
– The company prioritizes “quality” as its business objective and customer service focus.
– Đại Hồng Phát commits that all Locking Assemblies RfN 7110 are 100% genuine, brand new, certified, and clearly labeled with their origin.
