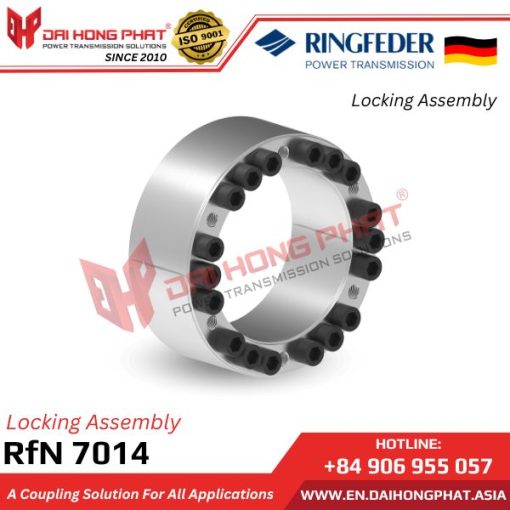

RINGFEDER LOCKING ASSEMBLIES RfN 7014

Locking Assemblies RfN 7014, This locking device, dual tapered similar the 7012 type, is designed to transmit extremely high torques. Unlike the 7012 style, the 7014 device offers good centering ability due to it’s relatively long design, making a pre-centering hub section unnecessary. It’s design also provides for a different inside diameter to outside diameter ration, thereby not interchangeable with the other Ringfeder types. Available in sizes from 70 to 300 mm.

Dai Hong Phat Corp Shaft Coupling is an authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Category: Ringfeder Locking Assemblies Tags: Ringfeder distributors, Power transmission components, Locking devices, Shrink disc, Ringfeder Cambodia, Authorized Distributor for Ringfeder Products in Cambodia, Authorized Distributor for Ringfeder Products in Philippines, Authorized Distributor for Ringfeder Products in Laos, Authorized Distributor for Ringfeder Products in Vietnam, Ringfeder Philippines, Ringfeder Laos, Locking Assemblies RfN 7014, LOCKING ELEMENTS, RFN 7014, RINGFEDER RFN 7014, power lock, LOCKING ASSEMBLY

Description

5/5 - (1 vote)

Let’s learn about Ringfeder Locking Assemblies RfN 7014 with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Locking Assemblies RfN 7014 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See more: Other Ringfeder Locking Assemblies

2. Characteristics of Locking Assemblies Ringfeder RfN 7014:

– The Locking Assemblies RfN 7014 is manufactured by Ringfeder/Germany.
– Self-centering.
– No axial movement.
– Inner diameter d: 60-300 mm.
– Outer diameter D: 100-390 mm.
– Total length L: 60-156 mm.
– Torque T: 4,130-245,000 Nm.
– The Ringfeder RfN 7014 is designed to transmit extremely high torques similar to the RfN 7012. The conical locking assembly provides better self-centering capabilities.
– Due to its long, flat taper, it can transmit maximum torque and axial force.

View more product “Locking Assemblies RfN 7013.0“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Locking Assemblies RfN 7014:

The Ringfeder Locking Assemblies RfN 7014 is suitable for accurately tightening all types of shafts, such as gears, wheels, chains, levers, brake discs, gear racks, couplings, flanges, and shafts of couplings.
This high-quality locking assembly requires no maintenance, making installation and removal quick and efficient. This helps save time and costs associated with maintenance and warranty.

See article: Applications of Ringfeder RfN Mini Locking Assemblies

4. Technical of Locking Assemblies Locking Assemblies RfN 7014:

Catalogue Ringfeder RFN 7014				Installation Ringfeder RFN 7014

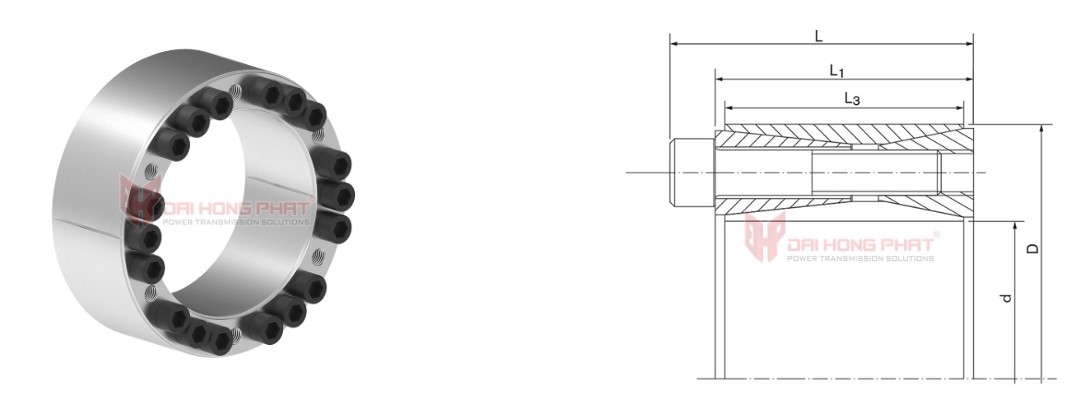

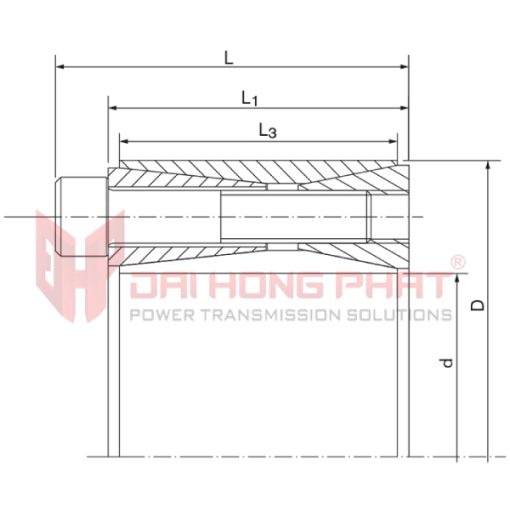

Technical drawing of Locking Assemblies RfN 7014

Technical drawing of Locking Assemblies RfN 7014

Ringfeder RfN 7014 locking assembly specifications:

Dimensions [mm]				T [Nm]	T_A [Nm]	Gw [kg]	Tmax [Nm]
d x D	L	L1	L3	T [Nm]	T_A [Nm]	Gw [kg]	Tmax [Nm]
60 x 100	60	50	44	4130	84	1.8	5120
70 x 120	74	62	56	6850	145	3.3	8068
80 x 130	74	62	56	11650	145	3.7	13813
90 x 140	74	62	56	13000	145	4	15505
100 x 160	94	80	74	19700	230	7.2	23620
110 x 170	94	80	74	26600	230	7.7	32045
120 x 180	94	80	74	28900	230	8.3	39468
130 x 190	94	80	74	31200	230	8.8	37903
140 x 200	94	80	74	40200	230	9.3	49017
150 x 210	94	80	74	42900	230	10	52489
160 x 230	110	94	88	64000	355	14.9	78558
170 x 240	110	94	88	67800	355	15.7	83477
180 x 250	110	94	88	83000	355	16.4	102483
190 x 260	110	94	88	88000	355	17.2	108947
200 x 270	110	94	88	105000	355	18.8	130330
220 x 300	134	116	110	123000	485	27.7	153404
240 x 320	134	116	110	153000	485	29.8	191651
260 x 340	134	116	110	186000	485	32	233920
280 x 370	156	136	130	230000	690	46	290328
300 x 390	156	136	130	245000	690	49	310335
