RfN 7012 LOCKING ASSEMBLY

The Locking Assemblies RfN 7012 are a frictional locking device at the hub-shaft connection, making it extremely easy to install, adjust, or remove. It can withstand bending loads, has a compact design, and is particularly suitable for applications where space is limited, with small assembly clearances, easy disassembly, and allowing for shaft misalignment compensation.

Category: Ringfeder Locking Assemblies Tags: LOCKING ELEMENTS, Power transmission components, Ringfeder Cambodia, Authorized Distributor for Ringfeder Products in Cambodia, Authorized Distributor for Ringfeder Products in Philippines, Authorized Distributor for Ringfeder Products in Laos, Authorized Distributor for Ringfeder Products in Vietnam, Ringfeder Philippines, Ringfeder Laos, Ringfeder distributors, power lock, Ringfeder locking assemblies, RFN 7012, RINGFEDER RFN 7012, Ringfeder

Description

5/5 - (11 votes)

1. Ringfeder RfN 7012 High-Quality Locking Assembly at Dai Hong Phat Corp.?

Ringfeder is a renowned brand in Europe and worldwide, known for manufacturing high-quality power transmission equipment and shock absorption technology. Therefore, Đại Hồng Phát has partnered with Ringfeder to provide genuine power transmission products to customers. This ensures customers can confidently select and purchase products quickly.

The outstanding benefits when customers purchase Ringfeder products from Dai Hong Phat Corp. include:

– Purchasing genuine Ringfeder locking assemblies RfN 7012 directly imported from the manufacturer.
– Protecting customers from counterfeit products and associated risks.
– Providing complete CO/CQ documents for customers.
– Ready stock available for quick delivery.
– Offering technical drawings upon request.
– Dedicated team of highly skilled technical specialists providing comprehensive support.
– Free consultation on optimal solutions for customers’ plants.
– Supplying genuine product catalogues.
– Free customization of technical specifications and dimensions upon request.
– Nationwide 24/7 delivery service, minimizing downtime for customers.
– Professional workshop for customized machining according to customers’ requirements.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Ringfeder RfN 7012 products throughout Vietnam:

Dai Hong Phat is a company specializing in providing high-quality genuine transmission equipment for factories, including shaft locking devices, locking assemblies, taper lock bushings, shaft couplings, heavy-duty chains, motors, and gearboxes, sourced from renowned global brands. Ringfeder is one of the brands that Dai Hong Phat Corp. has partnered with to offer a diverse range of products and provide customers with various options.

3. Characteristics of Shrink Disc Ringfeder RfN 7012:

– The Locking Assemblies RfN 7012 are manufactured by Ringfeder/Germany.
– Inner diameter d: 19 – 1,000 mm.
– Outer diameter D: 47 – 1,100 mm.
– Total length L: 28 – 130 mm.
– Torque T: 304 – 1.4 million Nm.

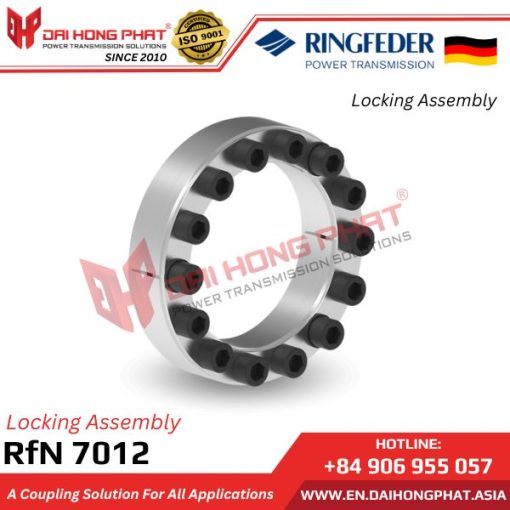

*Locking Assemblies RfN 7012 at Dai Hong Phat*

View more product “Locking Assemblies RfN 7515“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Locking Assemblies RfN 7012:

The Locking Assemblies RfN 7012 are capable of withstanding high radial loads, making it suitable for applications such as wheels, levers, ensuring support components in thin design applications with high frictional forces. It is easy to install and remove, capable of bearing bending loads. The Locking Assemblies RfN 7012 is suitable for space-restricted applications and allows for axial misalignment.

5. Technical of Locking Assemblies RfN 7012:

Catalogue Ringfeder RfN 7012				Installation Ringfeder RfN 7012

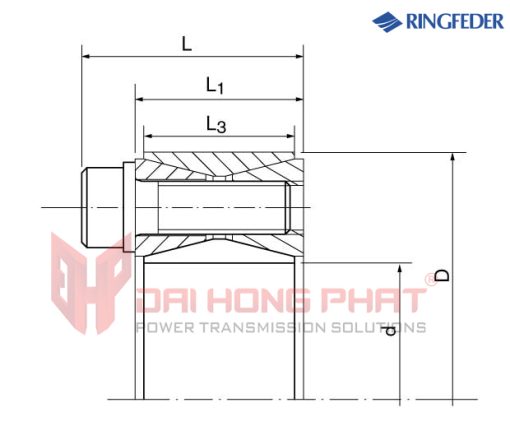

*Technical drawing of Locking Assemblies RfN 7012*

Dimensions [mm]			T	Fax	Shaft Pw	Hub PN	Gw [kg]
dxD	L	L1	[Nm]	[kN]	[N/mm2]		Gw [kg]
19 x 47	27,5	20	306	32	265	107	0.24
20 x 47	27,5	20	321	32	251	107	0.24
22 x 47	27,5	20	351	32	227	106	0.23
24 x 50	27,5	20	429	36	232	112	0.26
25 x 50	27,5	20	446	36	223	111	0.25
28 x 55	27,5	20	496	35	197	100	0.3
30 x 55	27,5	20	529	35	183	100	0.29
32 x 60	27,5	20	749	47	228	122	0.34
35 x 60	27,5	20	815	47	208	121	0.32
38 x 65	27,5	20	1101	58	238	139	0.36
40 x 65	27,5	20	1154	58	225	139	0.34
42 x 75	33,5	24	1768	84	266	149	0.6
45 x 75	33,5	24	1886	84	247	148	0.57
48 x 80	33,5	24	2004	83	231	138	0.62
50 x 80	33,5	24	2082	83	221	138	0.6
55 x 85	33,5	24	2656	97	233	151	0.63
60 x 90	33,5	24	2881	96	212	142	0.69
65 x 95	33,5	24	3550	109	223	153	0.73
70 x 110	39,5	28	5432	155	245	156	1.26
75 x 115	39,5	28	5795	155	228	149	1.33
80 x 120	39,5	28	6156	154	213	142	1.4
85 x 125	39,5	28	7447	175	228	155	1.49
90 x 130	39,5	28	7857	175	214	148	1.53
95 x 135	39,5	28	7857	175	214	148	1.62
100 x 145	47	33	11126	223	227	157	2.01
110 x 155	47	33	12166	221	205	146	2.15
120 x 165	47	33	15085	251	214	155	2.35
130 x 180	52	38	20326	313	188	136	3.51
140 x 190	52	38	23967	342	191	141	3.85
150 x 200	52	38	27893	372	193	145	4.07
160 x 210	52	38	32102	401	196	149	4.3
170 x 225	60	44	39326	463	190	144	5.78
180 x 235	60	44	45262	503	195	149	6.05
190 x 250	68	52	55552	585	177	135	8.25
200 x 260	68	52	62452	625	175	135	8.65
220 x 285	74	56	79874	726	175	135	11.22
240 x 305	74	56	99995	833	184	145	12.2
260 x 325	74	56	122159	940	192	153	13.2
280 x 355	86.5	66	148773	1063	168	132	19.2
300 x 375	86.5	66	178553	1190	175	140	20.5
320 x 405	100.5	78	246382	1540	177	140	29.6
340 x 425	100.5	78	260791	1534	166	133	31.1
360 x 455	116	90	336729	1871	164	130	42.2
380 x 475	116	90	371687	1858	147	119	44
400 x 495	116	90	371687	1858	147	119	46
…	…	…	…	…	…	…	…

Customers purchasing the Ringfeder RfN 7012 locking assembly from Dai Hong Phat enjoy the following benefits:

– Dai Hong Phat corp. is the official authorized distributor of Ringfeder in Vietnam and the Southeast Asia region.
– The company prioritizes “quality” as its business objective and customer service focus.
– Dai Hong Phat Corp commits that all Locking Assemblies RfN 7012 are 100% genuine, brand new, certified, and clearly labeled with their origin.
