RfN 7005 LOCKING ASSEMBLY

The Ringfeder RfN 7005 locking assemblies are essential components for heavy-duty transmission equipment such as crushers, cranes, lifting machinery, and more. With their long shaft dimensions, high torque capacity, frictional locking mechanism, they securely lock and connect shafts and components together, ensuring robust and reliable operation under heavy loads.

Description

5/5 - (6 votes)

1. Why choose Dai Hong Phat Corp. as your supplier for Ringfeder RfN 7005?

– Our customers will have the opportunity to purchase genuine Locking Assemblies RfN 7005 imported directly from Ringfeder Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Locking Assemblies Ringfder products will be provided to our customers.
– With a readily available stock of Locking Assembly, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine products from the Ringfeder brand.
– Our customers will receive the official Ringfeder shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for Ringfeder RfN 7005 products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Locking Assemblies Ringfeder in Vietnam:

– Dai Hong Phat Company is the exclusive importer and distributor of all 100% genuine Ringfeder products throughout Vietnam and the Southeast Asia region. (Authorized Distributor for Ringfeder Products in Vietnam, Laos, Cambodia, Philippines, …).
– With over 15 years of reputable service, Dai Hong Phat ensures customers acquire Locking Assemblies RfN 7005 that are 100% authentic, high-quality, and competitively priced in the market.

3. Characteristics of Locking Assemblies RfN 7005:

– The locking assemblies RfN 7005 are manufactured by Ringfeder/Germany.
– Inner diameter d: 9-400 mm.
– Outer diameter D: 47-495 mm.
– Total length L: 34-138 mm.
– Torque T: 270-375,945 Nm.
– Self-centering capability
– No axial displacement.

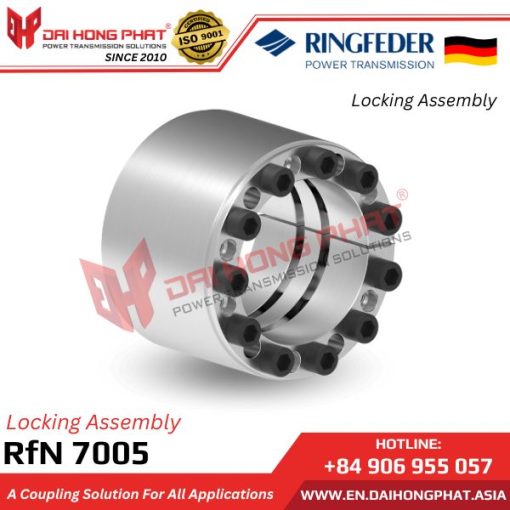

Locking Assemblies RfN 7005 at Dai Hong Phat Corp.

View more product “Locking Assemblies RfN 7003“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Locking Assemblies RfN 7005:

The locking assemblies RfN 7005 allow for high torque operation, transmitting axial and radial loads as well as bending moments steadily. It serves as an excellent replacement for rigid and flexible couplings, providing high concentricity and torsional resistance. With features that tighten clamp screws, inner and outer rings self-press onto the mating surfaces of connected components, creating suitable frictional connections.

The high-quality RfN 7005 locking assemblies are trusted by customers and widely used in various industrial plants, including steel manufacturing plants, cement plants, and bottling facilities for food and beverage processing.

5. Technical of Locking Assemblies RfN 7005:

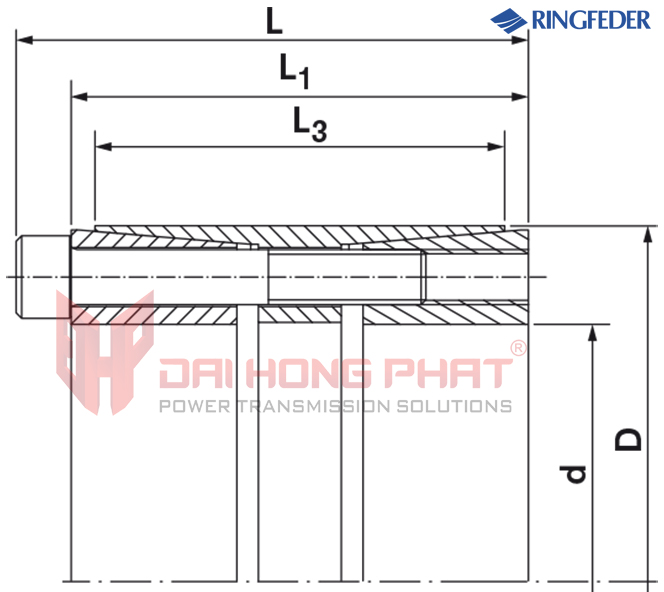

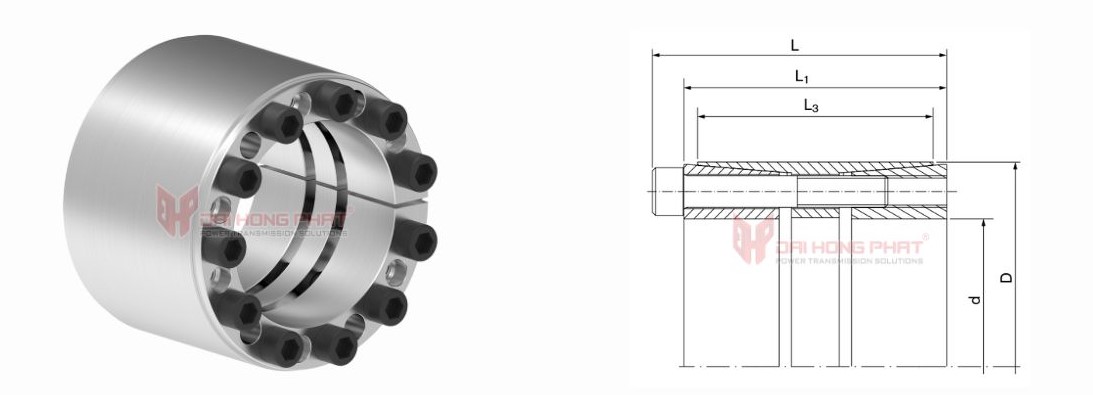

Catalogue Ringfeder RfN 7005				Installation Ringfeder RfN 7005

Dimensions [mm]			T	TA	Fax	pW	pN
dxD	L	L1	[Nm]		[KN]	[N/mm2]
25×55	46	40	649	17	64	155	80
28×55	46	40	875	17	64	250	95
30×55	46	40	950	17	64	235	95
35×60	60	54	1300	17	74	165	75
38×75	60	54	1600	17	84	165	95
40×75	60	54	1680	17	84	155	95
42×75	62	54	2800	41	135	250	110
45×75	62	54	3050	41	135	235	110
48×80	74	66	3700	41	155	195	90
50×80	74	66	3950	41	155	185	90
55×85	74	66	4900	41	174	190	100
60×90	74	66	5900	41	193	195	100
65×95	74	66	6450	41	193	180	95
70×110	90	80	10950	83	313	210	110
75×115	90	80	11700	83	313	200	105
80×120	90	80	13750	83	344	205	110
85×125	90	80	16000	83	375	210	115
90×130	90	80	16900	83	375	200	110
95×135	90	80	17820	83	375	185	105
100×145	114	102	25725	145	514	195	105
110×155	114	102	30850	145	561	195	110
120×165	114	102	39275	145	655	210	115
130×180	130	116	50300	230	774	190	110
140×190	130	116	63200	230	903	205	120
150×200	130	116	72550	230	967	205	125
160×210	130	116	82550	230	1032	205	125
170×225	165	149	103800	360	1221	170	110
180×235	165	149	117800	360	1308	175	110
190×250	165	149	132600	360	1395	180	110
200×260	165	149	140000	360	1400	170	110
220×285	166	150	173000	360	1570	170	110
240×305	162	146	218000	360	1820	185	120
260×325	162	146	250000	360	1920	180	120
280×355	197	177	360000	690	2550	185	120
300×375	197	177	428000	690	2850	190	125
320×405	197	177	480000	690	3000	190	120
340×425	197	177	534000	690	3140	185	120
360×455	224	202	670000	930	3730	175	115
380×475	224	202	742000	930	3900	175	115
400×495	224	202	852000	930	4260	180	120
420×515	224	202	894000	930	4260	175	115
440×535	224	202	937000	930	4260	165	110
460×555	224	202	980000	930	4260	160	110
480×575	224	202	1200000	930	5000	175	120
500×595	224	202	1240000	930	5000	170	120
520×615	224	202	1390000	930	5330	175	120
540×635	224	202	1440000	930	5330	170	120
560×655	224	202	1590000	930	5680	170	120
580×675	224	202	1705000	930	5680	170	120
600×695	224	202	1760000	930	5680	170	120

Customers purschasing Locking Assemblies Ringfeder at Dai Hong Phat.corp enjoy the following benefits?

– Established since 1922 and with nearly 100 years of professional manufacturing experience in the transmission and shock absorption industry, Ringfeder has acquired invaluable expertise and superior techniques in providing top-notch products and services to customers.
– Dai Hong Phat corp. has partnered with Ringfeder from Germany, a manufacturer of high-quality transmission equipment and shock absorption technology.
– Our company, Đại Hồng Phát, commits to offering Ringfeder products that are 100% genuine, brand new, with certification papers, and clear origin.
– The core value of our cooperation aims to bring significant benefits to customers regarding shaft coupling solutions, not only in Vietnam but also in countries across the Southeast Asian region. The Locking Assemblies Ringfeder RfN 7005 distributed by Dai Hong Phat are genuine and authentic.
