RfN 7004 LOCKING ASSEMBLY

Locking Assemblies RfN 7004, Extended version of the Locking Assembly RfN 7003 allowing for use with smaller hub diameters due to the reduced shaft and hub pressures.

Description

5/5 - (11 votes)

1. Why choose Dai Hong Phat Corp. as the supplier for Locking Assemblies Ringfeder RfN 7004?

In the current Vietnamese market, there are numerous renowned brands in the field of manufacturing transmission equipment. Among them is Ringfeder, a well-known German brand specializing in high-quality transmission equipment. Therefore, Đại Hồng Phát has become the authorized representative for genuine Ringfeder products in Vietnam.

The outstanding benefits when purchasing Ringfeder products from Dai Hong Phat Corp. include:

– Procuring genuine Ringfeder locking assemblies RfN 7004 directly imported from the manufacturer.
– Safeguarding against risks and counterfeit products.
– Providing complete CO/CQ documentation for customers.
– Having readily available stock for quick delivery.
– Supplying technical drawings upon request.
– Dedicated and experienced technical support team.
– Offering free consultation for optimal solutions tailored to customers’ factories.
– Providing authentic product catalogues.
– Offering free customization of technical specifications and dimensions.
– Nationwide 24/7 delivery service to minimize downtime.
– Operating a professional machining workshop for custom requirements.

2. Dai Hong Phat Corp is the authorized representative specializing in supplying all Ringfeder RfN 7004 products throughout Vietnam:

Established in 2010, Dai Hong Phat Corp. provides transmission equipment from major brands such as KTR, Westcar, JAC, and others. In addition, Dai Hong Phat Corp. collaborates with Ringfeder to become the authorized distributor of 100% genuine products in Vietnam and the Southeast Asia region (Authorized Distributor for Ringfeder Products in Vietnam, Laos, Cambodia, Philippines, …).

3. Characteristics of Locking Assemblies RfN 7004:

– The Locking Assemblies RfN 7004 are manufactured by Ringfeder/Germany.
– Inner diameter d: 19-180mm.
– Outer diameter D: 47-253mm.
– Total length L: 45-98mm.
– Torque T: 530-63,903Nm.

Locking Assemblies RfN 7004 at Dai Hong Phat Corp.

View more products “Locking Assemblies RfN 7005“

MỌI THẮC MẮC HOẶC YÊU CẦU BÁO GIÁ, QUÝ KHÁCH VUI LÒNG LIÊN HỆ:
PHÒNG KINH DOANH
HOTLINE: 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Locking Assemblies Ringfeder RfN 7004:

The flange is reinforced at the limit point to prevent bending and lifting of the ring during installation. The Ringfeder locking assemblies RfN 7004 are designed to reduce the connection pressure between the shaft and hub effectively, withstand high torque, and allow for easy assembly and disassembly. This self-centering locking assembly provides excellent concentricity. It is suitable for connecting motor-gearbox-shaft assemblies with other drive components.

5. Technical of Locking Assemblies RfN 7004:

Catalogue Ringfeder RfN 7004				Installation Ringfeder RfN 7004

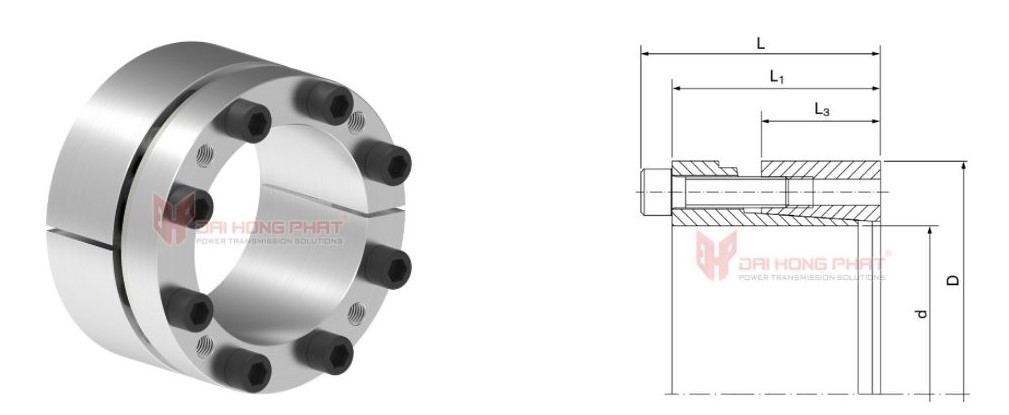

*Technical drawing of Locking Assemblies RfN 7004*

Dimensions [mm]			T	TA	Fax	pW	pN
dxD	L	L1	[Nm]		[KN]	[N/mm2]
19×47	45	39	530	17	56	298	120
20×47	45	39	550	17	56	283	120
22×47	45	39	610	17	56	257	120
24×50	45	39	660	17	56	236	115
25×50	45	39	690	17	56	227	115
28×55	45	39	770	17	56	202	105
30×55	45	39	830	17	56	190	105
32×60	45	39	1180	17	74	235	125
35×60	45	39	1295	17	74	216	126
38×65	45	39	1400	17	74	200	116
40×65	45	39	1480	17	74	190	116
42×75	55	47	2120	41	101	212	120
45×75	55	47	2270	41	101	198	120
48×80	55	47	3230	41	135	250	150
50×80	55	47	3365	41	135	240	150
55×85	55	47	3700	41	135	216	140
60×90	55	47	4035	41	135	200	135
65×95	55	47	4370	41	135	183	125
70×110	67	62	7615	83	218	206	131
75×115	72	62	8160	83	218	192	126
80×120	72	62	8700	83	218	180	120
85×125	72	62	11560	83	272	212	145
90×130	72	62	12240	83	272	200	140
95×135	72	62	12920	83	272	190	135
100×145	89	77	16270	145	325	190	130
110×155	89	77	17900	145	325	171	121
120×165	89	77	24410	145	405	196	142
130×180	89	77	31735	145	488	220	160
140×190	98	84	35502	210	507	188	139
150×200	98	84	45645	210	609	211	158
160×210	98	84	48688	210	609	198	151
170×225	98	84	60353	210	710	217	164
180×235	98	84	63903	210	710	205	157

Customers purschasing Ringfeder RfN 7004 at Dai Hong Phat.corp enjoy the following benefits?

– Established since 1922 and with nearly 100 years of professional manufacturing experience in the transmission and shock absorption industry, Ringfeder has acquired invaluable expertise and superior techniques in providing top-notch products and services to customers.
– Dai Hong Phat corp. has partnered with Ringfeder from Germany, a manufacturer of high-quality transmission equipment and shock absorption technology.
– Our company, commits to offering Locking Assemblies RfN 7004 products that are 100% genuine, brand new, with certification papers, and clear origin.
– The core value of our cooperation aims to bring significant benefits to customers regarding shaft coupling solutions, not only in Vietnam but also in countries across the Southeast Asian region. The Locking Assemblies RfN 7004 distributed by Dai Hong Phat are genuine and authentic.
