RfN 4161 SST SHRINK DISC

Shrink Disc RfN 4161 SST is made of stainless steel material. They are widely used in industries such as medical machinery, and the food industry due to their corrosion-resistant properties.

Category: Ringfeder Shrink Discs Tags: Ringfeder distributors, Shrink disc wind turbine, Shrink disc, Shaft lock, Shaft clamping element, Authorized Distributor for Ringfeder Products in Cambodia, Authorized Distributor for Ringfeder Products in Philippines, Authorized Distributor for Ringfeder Products in Laos, Authorized Distributor for Ringfeder Products in Vietnam, Ringfeder Philippines, Ringfeder Laos, Công ty Đại Hồng Phát, Shrink Discs RfN 4161 Stainless Steel, RINGFEDER RFN 4161 SST, Ringfeder Germany, Dai Hong Phat

Description

5/5 - (1 vote)

1. Why choose Dai Hong Phat Corp. as your supplier for Shrink Disc Ringfeder?

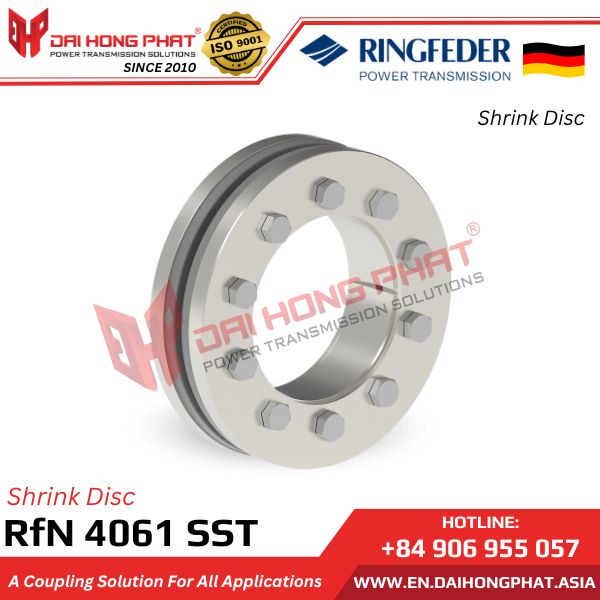

– Genuine Ringfeder RfN 4061 SST shrink disc imported directly from Ringfeder Germany.
– Risk protection, against counterfeit Ringfeder RfN 4061 SST.
– Full CO/CQ documentation for Ringfeder RfN 4061 SST.
– Clamping elements always in stock, fast delivery.
– Provide technical drawings upon request.
– Dedicated support and consultation on Ringfeder RfN 4061 SST.
– Free consultation for optimal factory solutions.
– Provide genuine Ringfeder RfN 4061 SST catalogues.
– Free technical specification conversion upon request.
– Nationwide delivery 24/7, minimizing downtime.
– Professional machining workshop for customization.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Shrink Disc Ringfeder in Vietnam:

– Dai Hong Phat Company is the exclusive importer and distributor of all 100% genuine Ringfeder products throughout Vietnam and the Southeast Asia region. (Authorized Distributor for Ringfeder Products in Vietnam, Laos, Cambodia, Philippines, …).
– With over 15 years of reputable service, Dai Hong Phat ensures customers acquire Shrink Disc RfN 4161 SST that are 100% authentic, high-quality, and competitively priced in the market.

3. Characteristics of Shrink Disc RfN 4161 SST:

– Shrink Disc RfN 4161 SST is manufactured by Ringfeder/Germany.
– Inner diameter range (d): 18-200 mm.
– Outer diameter (D): 44-340 mm.
– Overall length (L): 19-95.5 mm.
– Torque range (T): 80-124,000 Mio Nm.
– By tightening the locking screws, the clamping segments are drawn together, compressing the inner ring and exerting pressure on the outside of the shaft.
– The RfN 4161 SST Shrink Disc is arranged around the hollow shaft, providing concentric connection and suitable balancing for high-speed applications. It’s suitable for securing all types of hollow shafts onto shafts such as gears and sprockets, levers, lifting gears, cam discs, ratchets, or brake discs.
– Tightening the locking screws ensures that the contact surfaces are tightly pressed together, preventing the ingress of dirt and moisture. The inner ring has grooves to create low force and pressure on the hub and shaft.
– After loosening the locking screws, the RfN 4161 SST will automatically release and move freely along the shaft. It’s suitable for both static and dynamic loads.

View more product “Shrink Disc RfN 4061“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Shrink Disc Ringfeder RfN 4161 SST:

The Shrink Disc RfN 4161 SST is arranged around the hollow shaft, providing concentric connection and suitable balancing for high-speed applications. It’s suitable for securing all types of hollow shafts onto shafts such as gears and sprockets, levers, lifting gears, cam discs, ratchets, or brake discs. Ringfeder RfN 4161 SST is widely used in industries such as machinery, medical equipment, food processing, and corrosive environments.

5. Technical of Shrink Disc RfN 4161 SST:

Catalogue Ringfeder RFN 4161 SST				Installation Ringfeder RFN 4161 SST

*Technical drawing of Shrink Disc RfN 4161 SST*

Shrink Discs dimensions [mm]				T_A [Nm]	T [Nm]	Gw [kg]	^Tmax [Nm]
d x D	d_w	d₁	L
14 x 37	10	24	16	2.4	30	0.1	37.5
	11				37		46
	12				48		60
16 x 41	12	27	20	4	70	0.1	90
	13				90		110
	14				110		130
18 x 44	14	29	20	4	90	0.2	110
	15				100		130
	16				120		160
20 x 46	15	32	22.5	4	110	0.2	140
	16				140		170
	17				160		200
21 x 50	16	36	24	5	200	0.2	250
	17				230		290
	18				260		330
24 x 50	19	36	24	5	240	0.2	300
	20				270		340
	21				300		390
30 x 60	24	44	26.5	5	350	0.2	450
	25				400		500
	26				440		560
36 x 72	28	52	29.5	12	590	0.5	730
	30				690		860
	31				700		890
38 x 72	29	55	32	12	700	0.5	890
	30				770		970
	31				780		980
40 x 72	30	57	30.5	12	720	0.5	900
	31				730		910
	32				790		990
44 x 80	32	63	32	12	800	0.5	1000
	35				1000		1250
	36				1050		1350
48 x 80	36	68	32	12	900	0.6	1150
	38				1050		1350
	40				1200		1550
50 x 90	38	70	33.5	12	1350	0.9	1650
	40				1500		1900
	42				1700		2150
55 x 100	42	75	36.5	12	1300	1.1	1600
	45				1550		1950
	48				1800		2300
62 x 110	48	86	36.5	12	2400	1.3	3000
	50				2650		3300
	52				2800		3500
68 x 115	50	86	36.5	12	1900	1.4	2350
	55				2250		2850
	60				2850		3600
75 x 138	55	100	40.5	30	2650	2.3	3300
	60				3300		4150
	65				4050		5100
80 x 145	60	100	40.5	30	3200	2.5	4000
	65				3900		4900
	70				4600		5750
85 x 155	60	114	48.5	30	4850	3.5	6050
	65				5800		7250
	70				6800		8500
90 x 155	65	114	47	30	4800	3.3	6000
	70				6050		7550
	75				7300		9150
95 x 170		127	55.1	30	5350	4.7	6700
	65				6750		8450
					8150		10200
100 x 170		127	55.1	30	6950	4.5	8700
	70				7600		9500
					9100		11350
110 x 185		145	63	59	8150	6.3	10150
	75				10100		12600
					12200		15250
115 x 185	80	145	66	59	9500	6.1	11850
	90				12100		15100
	95				14050		17550
125 x 215	85	160	64	59	11050	8.7	13800
	90				13100		16350
	95				15150		18950
140 x 230	95	175	72.5	100	15100	10.6	18850
	100				17550		21900
	105				20000		25000
165 x 290	115	210	87	250	31400	21.7	39300
	120				35500		44400
	125				39400		49250
185 x 330	135	236	102.4	250	52500	36	65600
	140				57350		71650
	145				62400		78000
195 x 350	140	246	102	250	65950	40	82450
	150				77600		97000
	155				83750		104700
200 x 350	150	246	102	250	75000	39	93750
	155				81000		101200
	160				87200		109000
