1. Why choose Dai Hong Phat Corp. as your supplier for KTR Poly Flexible Couplings?
– You will be able to purchase 100% genuine KTR Poly PKZ Flexible Couplings directly imported by Dai Hong Phat from the manufacturer.
– You can trust Dai Hong Phat to protect you from risks and counterfeit products of Fenner.
– Dai Hong Phat provides complete CO/CQ documents for Poly Flexible Couplings.
– KTR products are always available in Dai Hong Phat’s warehouse, ensuring fast delivery to customers.
– Dai Hong Phat will provide technical drawings of the KTR products you purchase upon request.
– Dai Hong Phat offers dedicated support and consultation to customers regarding bolted flexible couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat provides free consultation on optimal solutions for your plant regarding genuine Poly-Norm Couplings.
– Dai Hong Phat provides customers with genuine KTR Poly PKZ catalogues.
– Dai Hong Phat offers free technical parameter conversion and customization of KTR Poly PKZ according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat has a professional workshop for custom machining according to customers’ specific requirements.
2. Dai Hong Phat Corp. is the specialized representative for supplying all KTR products in Vietnam:
– Dai Hong Phat Corp. is the importer and distributor of 100% genuine KTR Poly PKZ Flexible Couplings from the KTR brand in Vietnam (Authorized Distributor for KTR Products in Vietnam).
– With over 15 years of reputation, Dai Hong Phat ensures to provide customers with 100% genuine KTR products of the highest quality and the best prices on the market.
Mr. Arthur Low – Director of KTR Singapore visited Dai Hong Phat Company on a business trip
Certificate of Dai Hong Phat as Authorised Distributor of KTR Germany in Vietnam
3. Technical of KTR Poly PKZ Flexible Couplings:
– Poly PKZ Flexible Couplings are manufactured by KTR/Germany.
– Torsionally flexible shaft coupling.
– Particularly compact, suitable for short shaft distances.
– Available with larger resilient buffers to compensate for torsional play as required.
– Can be plug-in mounted onto the shaft and is characterized by excellent vibration damping capabilities.
– Coaxial, parallel, and angular misalignment compensation.
– Torque transmission up to 3950Nm.
– Speeds up to 5000 rpm.
– Shaft bore diameter up to 110mm.
View more product “Poly PKD Flexible Couplings“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
4. Applications of KTR Poly PKZ:
The KTR Poly PKZ Flexible Couplings are widely used in various machinery applications. They exhibit excellent shock absorption characteristics, with a unique feature being the flexible elastic elements placed in both halves of the coupling. The KTR Poly PKZ is specifically employed in the pump and air compressor industries.
5. Technical of KTR Poly PKZ Flexible Couplings:

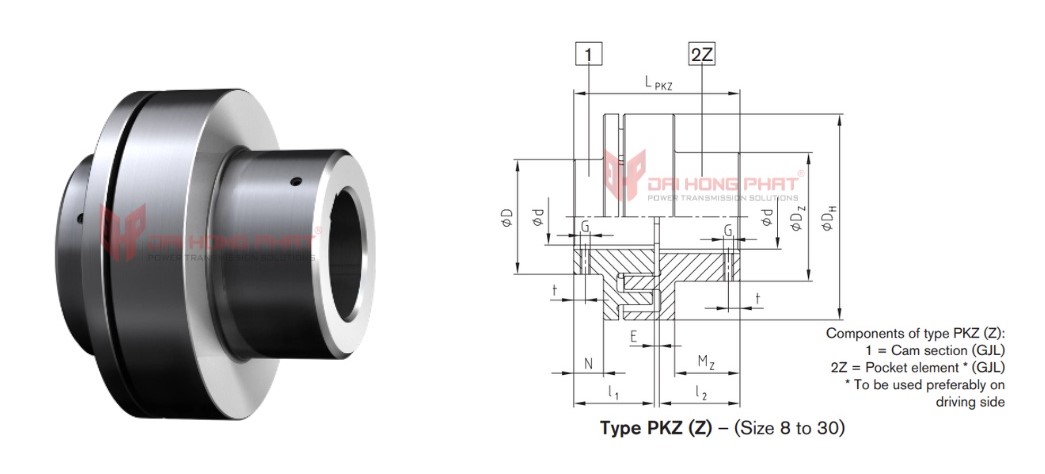

| Catalogue KTR Poly PKZ |
Installation KTR Poly PKZ |
||||||
 |
|

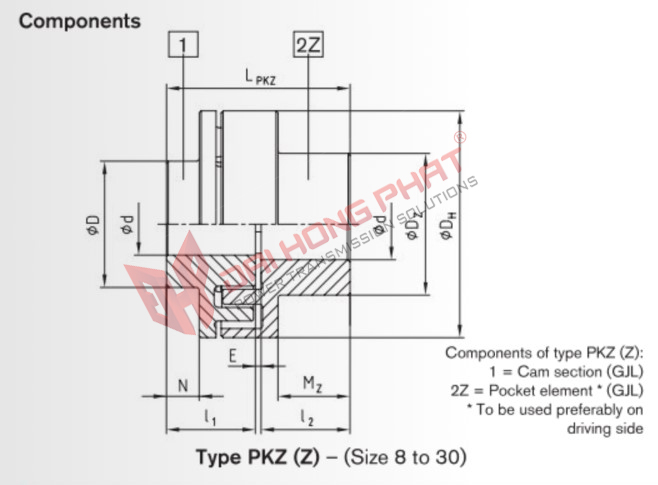

| Coupling Model |
torque TKN [Nm] | Max. speed n [rpm] | Max. finish bore | Dimensions [mm] | TA [Nm] | Weight [kg] |
||||||
| part 1 | part 2Z | part 2D | DH | D | DZ | DD | L | |||||
| PKZ-8 | 42 | 5000 | 20 | 28 | — | 86 | 43 | 50 | — | 73 | 2 | 1.7 |
| PKZ-9 | 72 | 5000 | 28 | 38 | — | 97 | 55 | 65 | — | 85 | 10 | 2.7 |
| PKZ-10 | 100 | 5000 | 32 | 42 | — | 107 | 60 | 70 | — | 94 | 10 | 3.5 |
| PKZ-12 | 170 | 5000 | 38 | 48 | — | 131 | 70 | 80 | — | 114 | 10 | 5.4 |
| PKZ-14 | 210 | 4800 | 45 | 55 | — | 142 | 80 | 93 | — | 124 | 10 | 7.6 |
| PKZ-15 | 320 | 4300 | 50 | 60 | 50 | 157 | 90 | 100 | 74.5 | 134 | 10 | 8.6 |
| PKZ-17 | 400 | 3800 | 60 | 65 | 60 | 176 | 100 | 110 | 87 | 144 | 10 | 12 |
| PKZ-20 | 820 | 3300 | 65 | 75 | 70 | 205 | 115 | 127 | 98 | 164 | 10 | 20 |
| PKZ-22 | 1100 | 3000 | 85 | 85 | — | 224 | 140 | 140 | — | 184 | 17 | 25 |
| PKZ-25 | 1600 | 2700 | 90 | 90 | 95 | 257 | 150 | 150 | 138 | 205 | 40 | 35 |
| PKZ-28 | 2500 | 2350 | 100 | 100 | 100 | 288 | 165 | 165 | 154 | 225 | 40 | 53 |
| PKZ-30 | 3950 | 2200 | 110 | 110 | 110 | 308 | 180 | 180 | 165 | 265 | 80 | 66 |
| PKZ-35 | 6100 | 1850 | 130 | — | 140 | 373 | 210 | — | 209 | 325 | 80 | 125 |
Customers purschasing KTR Poly PKZ at Dai Hong Phat.corp enjoy the following benefits?
– The KTR brand from Germany is a leading manufacturer of power transmission equipment worldwide. Since its establishment in 1950, KTR has consistently excelled in pioneering the design and innovation of various types of shaft couplings, hydraulic brakes, cooling systems, and hydraulic systems.
– We at Dai Hong Phat collaborate with KTR, a renowned manufacturer of power transmission equipment in Europe and worldwide.
– Dai Hong Phat Company commits to providing 100% genuine products of Poly PKZ Flexible Couplings, with brand new quality, accompanied by certification and clear origin from the KTR brand.
– The core value of our collaboration is to bring significant benefits to customers in terms of genuine shaft coupling solutions distributed by Dai Hong Phat.
