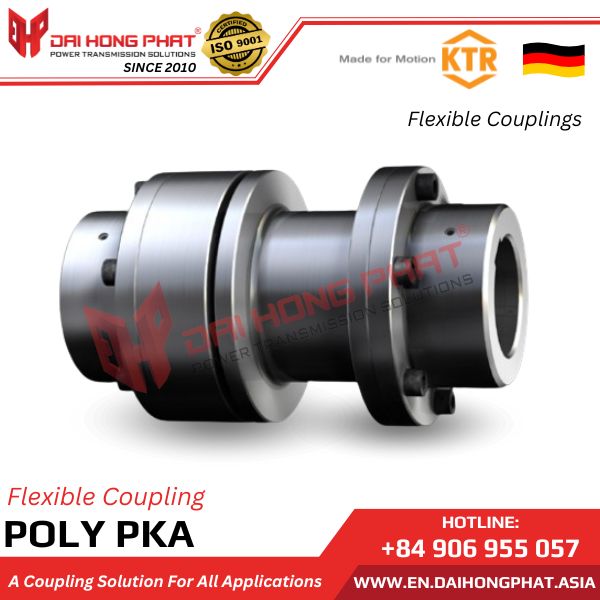

POLY PKA FLEXIBLE COUPLING

The KTR Poly PKA Flexible Couplings are designed as a torsionally flexible coupling with a flange center to connect large shaft distances. The coupling consists of three parts, allowing for separation, with two sides having hollow shafts and one side being driven without the need to displace the shaft.

Description

5/5 - (1 vote)

1. Why choose Dai Hong Phat Corp. as your supplier for KTR Poly Flexible Couplings?

– You will purchase 100% genuine KTR Poly PKA Flexible Coupling imported by Đại Hồng Phát.
– Protects you from counterfeit risks.
– Complete CO/CQ documentation for KTR Poly PKA.
– Products always in stock, fast delivery.
– Provide technical drawings of products (upon request).
– Dedicated consultation on products.
– Free consultation for optimal factory solutions.
– Provide official Catalogue of KTR Poly PKA.
– Free conversion of product specifications upon request.
– Nationwide delivery 24/7, minimizing machine downtime.
– Professional machining workshop tailored to your needs.

2. Dai Hong Phat Corp. is the specialized representative for supplying all KTR products in Vietnam:

– Dai Hong Phat Corp. is the importer and distributor of 100% genuine KTR Poly PKA Flexible Couplings from the KTR brand in Vietnam (Authorized Distributor for KTR Products in Vietnam).
– With over 15 years of reputation, Dai Hong Phat ensures to provide customers with 100% genuine KTR products of the highest quality and the best prices on the market.

Mr. Arthur Low – Director of KTR Singapore visited Dai Hong Phat Company on a business trip

mr-arthur-low-director-of-ktr-singapore-visited-dai-hong-phat-company-on-a-business-trip

Certificate of Dai Hong Phat as Authorised Distributor of KTR Germany in Vietnam

ktr-goods-agent-certificate

3. Characteristics of KTR Poly PKA Flexible Couplings:

– KTR Poly PKA Flexible Couplings are manufactured by KTR/Germany.
– Spiral flexible coupling for flange connection.
– Flexible distance with standard length for easy installation.
– Easy replacement of resilient damping rings during assembly.
– Cross-centerline assembly and disassembly.
– Vibration damping, compact size.
– Available with larger resilient elements to compensate for torsional play as needed.
– Suitable for coaxial, eccentric, and angular misalignments.
– Torque transmission up to 820Nm.
– Operating speed up to 5000 revolutions per minute.
– Bore diameter up to 110mm.

View more product “Poly PKZ Flexible Couplings“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of KTR Poly PKA:

The KTR Poly PKA Flexible Couplings are widely used in various machinery applications. They exhibit excellent damping characteristics, with a unique feature being the flexible resilient elements placed in both halves of the coupling. The KTR Poly PKA specifically finds applications in the pump and air compressor industries.

5. Technical of KTR Poly PKA Flexible Couplings:

Catalogue KTR Poly PKA				Installation KTR Poly PKA

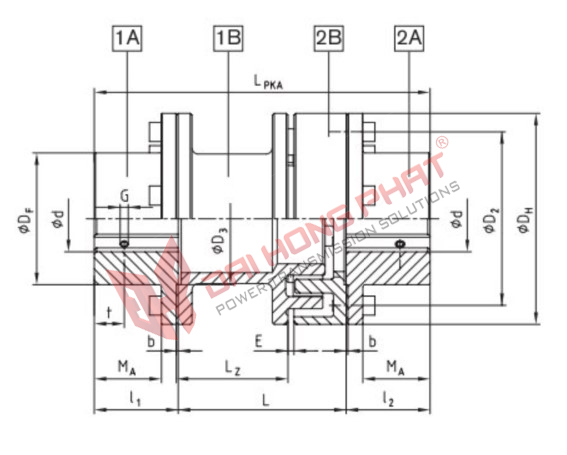

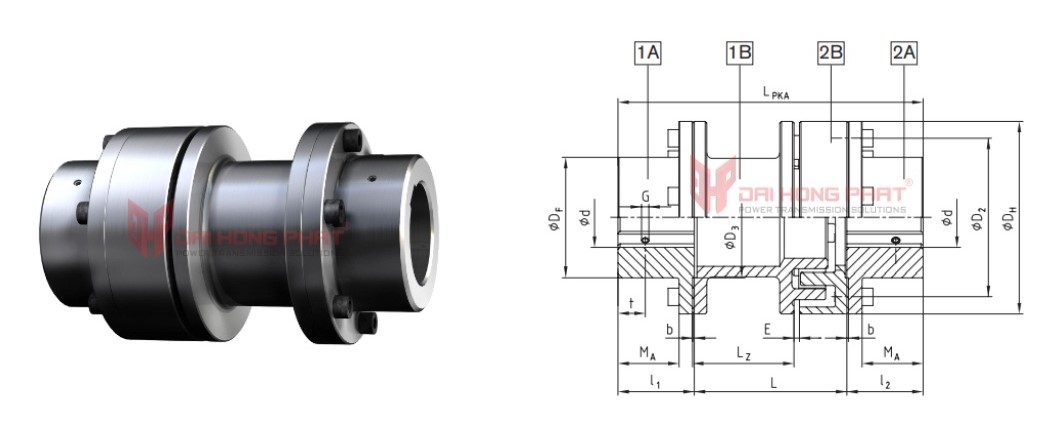

*Technical drawing of Poly PKA Flexible Couplings*

Coupling Model	Torque T_KN [Nm]	Max. speed	Max finish bore d	Dimensions [mm]							Weight [kg]
		[rpm]		D_H	D_F	D₂	L	L_PKA	L_Z	T_A [Nm]
PKA-8	42	5000	40	86	55	70	100	170	66	2	3.04
PKA-9	72	5000	50	97	70	85	100	182	63	10	4.26
							140	222	103	10	4.66
PKA-10	100	5000	55	107	78	93	100	192	61	10	5.42
							140	232	101	10	5.88
PKA-12	170	5000	70	131	95	113	100	210	55	10	9.49
							140	250	95	10	10.15
PKA-14	210	4800	75	142	105	125	100	220	54	10	11.46
							140	260	94	10	12.23
PKA-15	320	4300	80	157	110	135	140	270	93	10	15.63
							180	310	133	10	16.5
PKA-20	820	3300	110	205	150	175	180	340	121	10	32.18
							140	340	81	10	54.73
