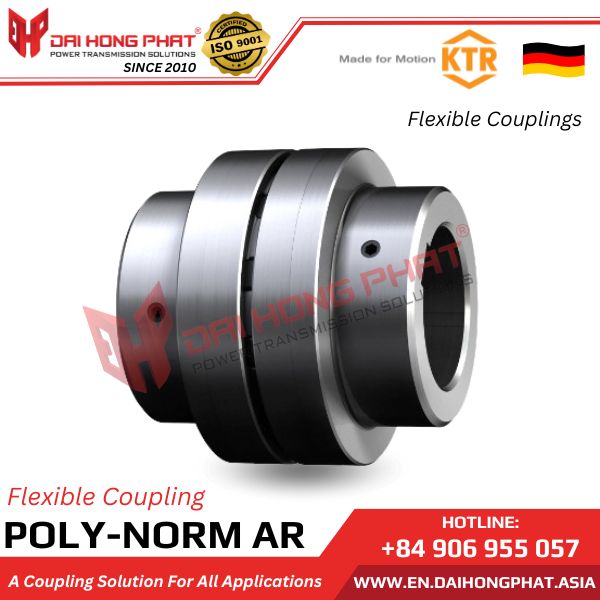

POLY-NORM AR FLEXIBLE COUPLING

The KTR Poly-Norm AR Flexible Jaw Couplings are characterized by its compact design. Torque is transmitted through the resilient elements between the hubs, which also serve to compensate for displacement and reduce shock and torsional vibrations. It’s a flexible and robust coupling that ensures safety without susceptibility to damage. Additionally, it is available in a standard version at an affordable price.

Description

5/5 - (2 votes)

1. Why choose Dai Hong Phat Corp. as your supplier for KTR Poly-Norm Flexible Couplings?

– Genuine Poly-Norm AR Flexible coupling from KTR Germany, imported by Đại Hồng Phát.
– Protects you from counterfeit risks.
– Complete CO/CQ documentation for KTR Poly-Norm AR products.
– Products always in stock, fast delivery.
– Provide technical drawings of products (upon request).
– Dedicated consultation on products.
– Free consultation for optimal factory solutions.
– Provide official Catalogue of Poly-Norm AR KTR.
– Free conversion of product specifications upon request.
– Nationwide delivery 24/7, minimizing machine downtime.
– Professional machining workshop tailored to your needs.

2. Dai Hong Phat Corp. is the specialized representative for supplying all KTR products in Vietnam:

– Dai Hong Phat Corp. is the importer and distributor of 100% genuine Poly Norm AR Flexible Jaw Couplings from the KTR brand in Vietnam (Authorized Distributor for KTR Products in Vietnam).
– With over 15 years of reputation, Dai Hong Phat ensures to provide customers with 100% genuine KTR products of the highest quality and the best prices on the market.

Mr. Arthur Low – Director of KTR Singapore visited Dai Hong Phat Company on a business trip

mr-arthur-low-director-of-ktr-singapore-visited-dai-hong-phat-company-on-a-business-trip

Certificate of Dai Hong Phat as Authorised Distributor of KTR Germany in Vietnam

ktr-goods-agent-certificate

3. Characteristics of Poly-Norm AR Flexible Jaw Coupling:

– Poly-Norm AR Flexible Jaw Couplings are manufactured by KTR/Germany.
– Transmits high torsional moments and reduces the shock of torsional vibrations.
– Torsional moment up to 67,000 Nm.
– Bore diameter up to 280 mm.
– Short assembly distance – suitable for small shaft spacing.
– Temperature range from -30°C to +80°C. Maximum temperature up to +120°C.
– The Poly-Norm AR consists of two compact parts for transmitting reduced vibration torsion forces.
– The centers made of cast iron have identical designs, making the standard version of the KTR Poly Norm AR particularly cost-effective.

View more product “Poly-Norm AZR Flexible Jaw Couplings“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of KTR Poly-Norm AR:

The KTR Poly-Norm AR Flexible Jaw Couplings are highly suitable for use in hazardous areas and is utilized in most engineering fields, primarily in the pump industry (pump couplings).

5. Technical of KTR Poly-Norm AR Flexible Jaw Coupling:

Catalogue KTR Poly-Norm AR				Installation KTR Poly-Norm AR

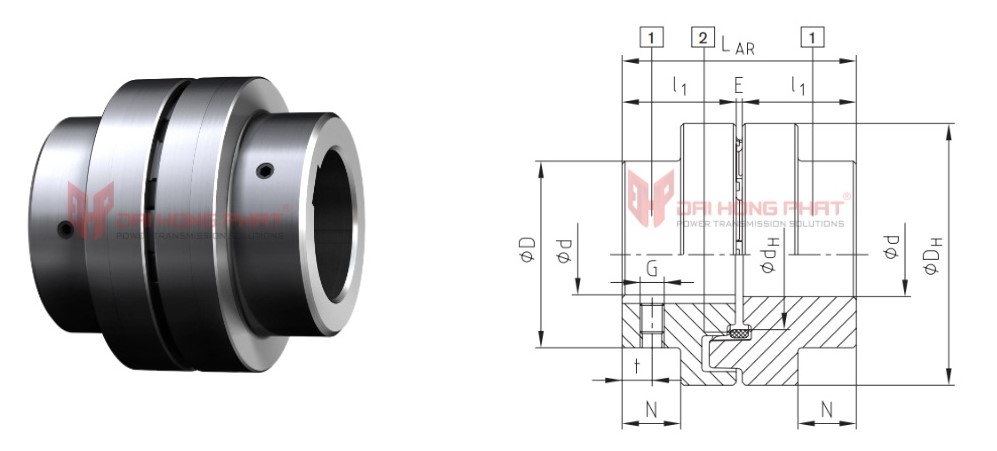

Technical drawing of Poly-norm AR flexible jaw couplings

Technical drawing of Poly-norm AR flexible jaw couplings

Coupling Model	Torque [Nm]		Max. finish bore Ød	Dimensions [mm]			Weight [kg]
Coupling Model	^TKN	T_{K max.}	Max. finish bore Ød	L_AR	D_H	D	Weight [kg]
AR-28	40	80	30	59	69	46	0.9
AR-32	60	120	35	68	78	53	1.4
AR-38	90	180	40	80	87	62	2
AR-42	150	300	45	88	96	69	2.7
AR-48	220	440	50	101	106	78	3.7
AR-55	300	600	60	115	118	90	5.5
AR-60	410	820	65	125	129	97	6.9
AR-65	550	1100	70	135	140	105	8.8
AR-75	850	1700	80	155	158	123	13.5
AR-85	1350	2700	90	175	182	139	19.5
AR-90	2000	4000	95	185	200	148	23.2
AR-100	2900	5800	110	206	224	165	31.9
AR-110	3900	7800	50-120	226	250	185	38
AR-125	5500	11000	55-140	256	280	210	55.2
AR-140	7200	14400	65-155	286	315	235	92.6
AR-160	10000	20000	75-175	326	350	265	126.9
AR-180	13400	26800	75-200	366	400	300	181.8
AR-200	19000	38000	85-200	408	450	335	263.7
AR-220	30000	60000	95-220	448	500	370	355.9
AR-240	43000	86000	105-240	488	550	405	466.3
AR-260	55000	110000	115-260	530	650	440	672.2
AR-280	67000	134000	125-280	570	700	475	836.6
