1. Dai Hong Phat Corp. is the specialized representative for supplying all KTR Poly-Norm in Vietnam:
– The KTR brand from Germany is a leading manufacturer of power transmission equipment worldwide. Since its establishment in 1950, KTR has consistently excelled in pioneering the design and innovation of various types of shaft couplings, hydraulic brakes, cooling systems, and hydraulic systems.
– We at Dai Hong Phat collaborate with KTR, a renowned manufacturer of power transmission equipment in Europe and worldwide.
– Dai Hong Phat Corp. is the importer and distributor of 100% genuine Poly-Norm ADR-SBA Flexible Couplings from the KTR brand in Vietnam (Authorized Distributor for KTR Products in Vietnam).
– With over 15 years of reputation, Dai Hong Phat ensures to provide customers with 100% genuine KTR products of the highest quality and the best prices on the market.
Mr. Arthur Low – Director of KTR Singapore visited Dai Hong Phat Company on a business trip
Certificate of Dai Hong Phat as Authorised Distributor of KTR Germany in Vietnam

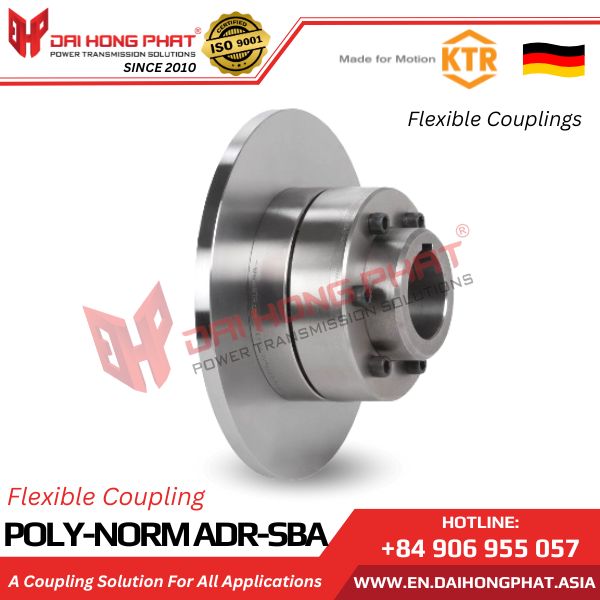

2. Characteristics of the Poly-Norm ADR-SBA Flexible Coupling:
– The Poly-Norm ADR-SBA Flexible Couplings are manufactured by KTR/Germany
– The shaft coupling combined with a brake disc. Poly Norm ADR-SBA is designed for brake retention purposes.
– Flexible shaft coupling with brake disc.
– Acts as a holding brake for disc brakes.
– High-quality elastomer damping ring can be replaced during installation.
– Easy shaft plug-in and assembly.
– Maintenance-free.
– Compact size for short shaft distances.
– Torque range from 40 to 5,500 Nm.
– The coupling can be combined with our brake systems.
– Coaxial, axial, angular compensation.
– Compliant with ATEX (in accordance with EU Directive 2014/34/EU).
– Completely removable for easy maintenance.
View more product “Poly-Norm ADR Flexible Jaw Couplings“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Poly-Norm ADR-SBA Flexible Couplings with Brake:
The Poly-Norm ADR-SBA flexible couplings with brake are ideal for applications requiring both coupling and braking functions. It is commonly used in conveyor systems, machine tools, packaging machinery, material handling equipment, industrial mixers, printing machinery, and automation systems. This coupling provides reliable coupling of rotational motion while offering efficient braking capabilities for precise control and safety.

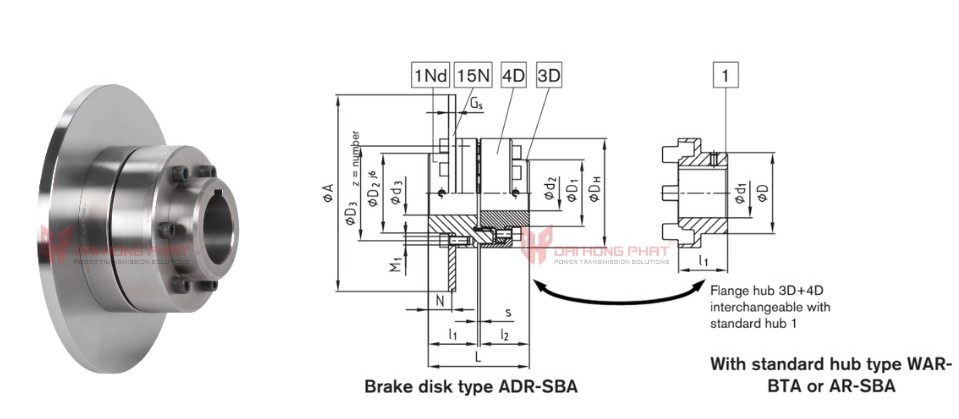

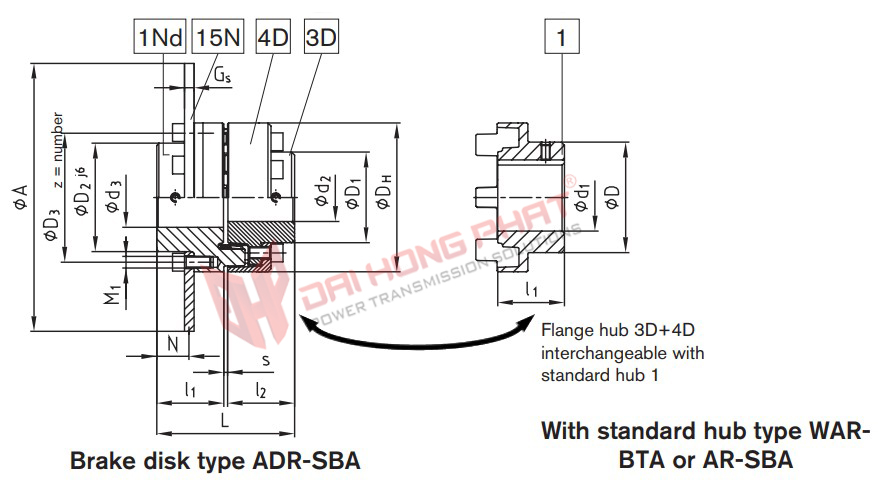

4. Catalog of the Poly-Norm ADR-SBA Flexible Coupling:
| Catalogue KTR Poly Norm ADR-SBA |
Installation KTR Poly Norm ADR-SBA |
||||||
 |
|
| Coupling Model |
Torque of elastomer ring [Nm] | Dimensions [mm] | |||||||
| Finish bore max. | DH | D2 | z | M1 | L | ||||
| TKN | TK max. | d1 | d2 | ||||||
| SBA-38 | 90 | 180 | 40 | 34 | 87 | 61 | 5 x 72° | M6 | 80 |
| SBA-42 | 150 | 300 | 45 | 38 | 96 | 68 | 5 x 72° | M8 | 90 |
| SBA-48 | 220 | 440 | 50 | 44 | 106 | 77 | 6 x 60° | M8 | 101 |
| SBA-55 | 300 | 600 | 60 | 50 | 118 | 88 | 6 x 60° | M8 | 115 |
| SBA-60 | 410 | 820 | 65 | 56 | 129 | 96 | 6 x 60° | M8 | 125 |
| SBA-65 | 550 | 1100 | 70 | 60 | 140 | 104 | 6 x 60° | M10 | 135 |
| SBA-75 | 850 | 1700 | 80 | 68 | 158 | 121 | 6 x 60° | M10 | 155 |
| SBA-85 | 1350 | 2700 | 90 | 78 | 182 | 137 | 6 x 60° | M12 | 175 |
| SBA-90 | 2000 | 4000 | 95 | 85 | 200 | 146 | 6 x 60° | M16 | 185 |
| SBA-100 | 2900 | 5800 | 110 | 95 | 224 | 164 | 6 x 60° | M16 | 206 |
| SBA-110 | 3900 | 7800 | 50-120 | 105 | 250 | 184 | 8 x 45° | M16 | 226 |
| SBA-125 | 5500 | 11000 | 55-140 | 115 | 280 | 208 | 8 x 45° | M20 | 256 |
| SBA-140 | 7200 | 14400 | 65-155 | 55-135 | 315 | 233 | 8 x 45° | M20 | 286 |
| SBA-160 | 10000 | 20000 | 75-175 | 65-155 | 350 | 263 | 9 x 40° | M20 | 326 |
| SBA-180 | 13400 | 26800 | 75-200 | 65-175 | 400 | 298 | 10 x 36° | M20 | 366 |
5. Why choose Dai Hong Phat Corp. as your supplier for KTR Poly-Norm Flexible Jaw Couplings?
– You will be able to purchase 100% genuine Poly-norm ADR-SBA Flexible Jaw Couplings directly imported by Dai Hong Phat from the manufacturer.
– You can trust Dai Hong Phat to protect you from risks and counterfeit products of Fenner.
– Dai Hong Phat provides complete CO/CQ documents for Poly-norm Flexible Jaw Couplings.
– KTR products are always available in Dai Hong Phat’s warehouse, ensuring fast delivery to customers.
– Dai Hong Phat will provide technical drawings of the KTR products you purchase upon request.
– Dai Hong Phat offers dedicated support and consultation to customers regarding bolted flexible couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat provides free consultation on optimal solutions for your plant regarding genuine Poly-Norm Couplings.
– Dai Hong Phat provides customers with genuine KTR Poly-Norm ADR-SBA catalogues.
– Dai Hong Phat offers free technical parameter conversion and customization of KTR Poly-Norm ADR-SBA according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat has a professional workshop for custom machining according to customers’ specific requirements.
