Let’s learn about Ringfeder Elastomer Rings TNM Nor-mex with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Elastomer Rings TNM Nor-mex products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

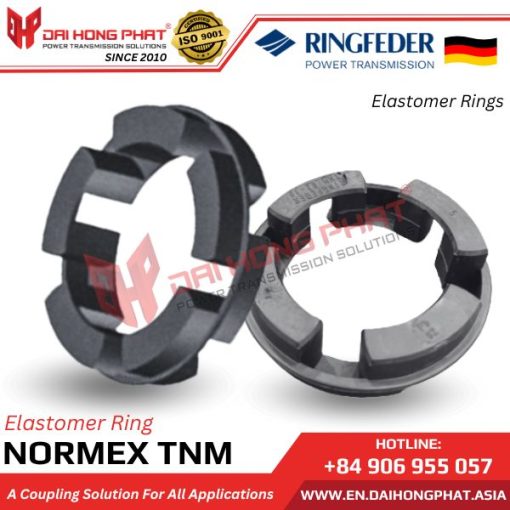

2. Characteristics of Ringfeder Elastomer Rings TNM Nor-mex:
– Ringfeder Elastomer Rings TNM Nor-mex manufatured by Ringfeder/Germany.
– Torque [Nm]: 41,000 to 97,500 Nm.
– Speed [rpm]: 5000 rpm.
– Temperature range: -30°C to +100°C.
– TNM intermediate rings has different hardness levels: Pb75 standard, Pb82 high hardness.
– Ringfeder TNM elastomer rings provides elasticity during rotation, safety in case of failure, and allows for shaft misalignment compensation. Torque is transmitted through resilient materials linked together to form a shock-absorbing and vibration-reducing ring capable of bearing loads and conducting electricity.
– TNM Elastomer Rings has high durability, easy installation, and replacement. It can be used within a temperature range from -30°C to +100°C as well as in any installation position and direction of rotation.
View product details: “Elastomer Jaw Couplings Ringfeder TNM“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Application of Ringfeder Normex TNM Elastomer Ring:
Elastomer Jaw Couplings TNM (Elastomer Rings TNM) is used in various common applications, including construction, cement plants, steel mills, material handling, industrial pumps, air compressors, shaft couplings, cable reels, in thermal power plants, and hydroelectric plants.

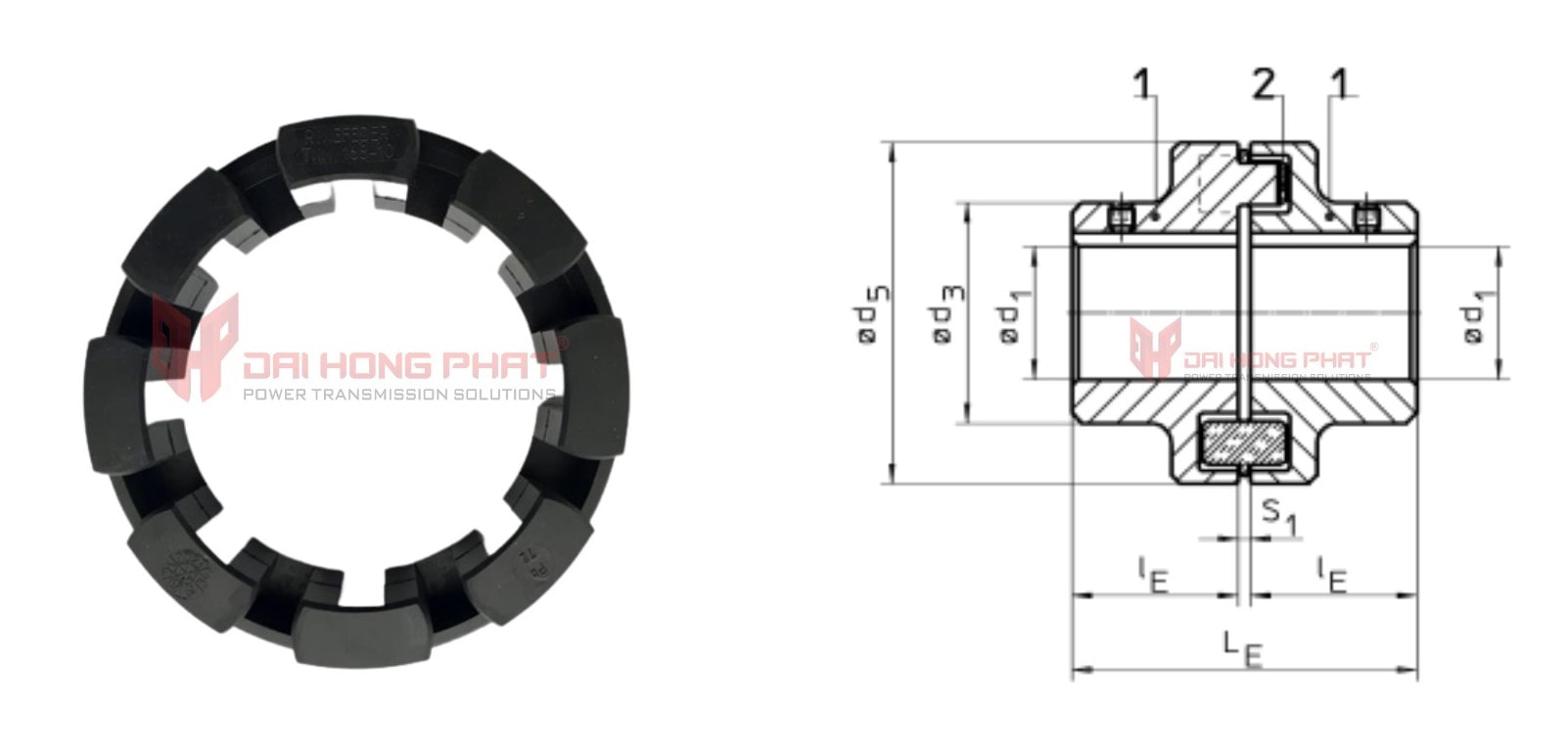

4. Technical drawing of Ringfeder Normex TNM Elastomer Ring:
| Catalogue Elastomer Rings Ringfeder TNM |
Installation Elastomer Rings Ringfeder TNM |
||||||
 |
|
| Model | Nmax [min-1] |
Pb72 | Pb82 | ||
| TKN [Nm] |
TKmax [Nm] |
TKN [Nm] |
TKmax [Nm] |
||
| Normex TNM 50 | 5000 | 13 | 27 | 20 | 45 |
| Normex TNM 67 | 5000 | 22 | 45 | 35 | 75 |
| Normex TNM 82 | 5000 | 48 | 100 | 75 | 160 |
| Normex TNM 97 | 5000 | 96 | 200 | 150 | 340 |
| Normex TNM 112 | 5000 | 150 | 310 | 230 | 540 |
| Normex TNM 128 | 5000 | 250 | 500 | 380 | 860 |
| Normex TNM 148 | 4500 | 390 | 800 | 600 | 1350 |
| Normex TNM 168 | 4000 | 630 | 1300 | 980 | 2250 |
| Normex TNM 194 | 3500 | 1050 | 2000 | 1650 | 3630 |
| Normex TNM 214 | 3000 | 1500 | 3100 | 2400 | 5400 |
| Normex TNM 240 | 2750 | 2400 | 4800 | 3700 | 8650 |
| Normex TNM 265 | 2500 | 3700 | 7500 | 5800 | 13500 |
| Normex TNM 295 | 2250 | 4900 | 10000 | 7550 | 18000 |
| Normex TNM 330 | 2000 | 6400 | 13000 | 9900 | 23400 |
| Normex TNM 370 | 1750 | 8900 | 18200 | 14000 | 32750 |
| Normex TNM 415 | 1500 | 13200 | 27000 | 20500 | 49000 |
| Normex TNM 480 | 1400 | 18000 | 36000 | 28000 | 66000 |
| Normex TNM 575 | 1200 | 27000 | 54000 | 41000 | 97500 |
View more product: Other Types of Ringfeder Elastomer Rings
