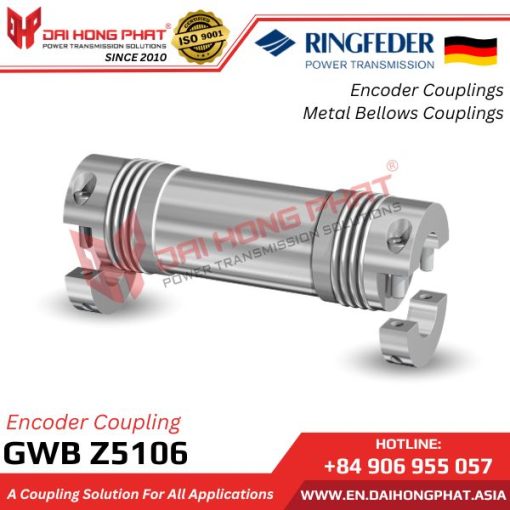

RINGFEDER METAL BELLOWS COUPLINGS GWB Z5106

The Ringfeder metal bellows encoder couplings GWB Z5106 are a non-reactive metal bellows coupling designed for straight-line shaft configurations. The center clamping hubs in the split center design can be horizontally mounted at aligned shaft extension sections.

Dai Hong Phat Corp Shaft Coupling is an authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Description

5/5 - (1 vote)

Let’s learn about Ringfeder Metal Bellows Couplings GWB Z5106 with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Metal Bellows Couplings GWB Z5106 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See more: Other Ringfeder encoder shaft coupling lines

2. Characteristics of Metal Bellows Couplings GWB Z5106:

– The Metal Bellows Couplings GWB Z5106 are manufactured by Ringfeder/Germany, and comes in 7 different sizes.
– Bore diameter d: 8-62 mm.
– Outer diameter D: 45-119 mm.
– Length of basic part L6: 53-90 mm.
– Shaft length L3: 134-3,000 mm.
– Torque T: 22-600 Nm.
– Completely free from harsh reactions.
– Installation length of up to 4 m.
– Compensation for shaft misalignment, axial and angular displacement.
– Easy assembly.
– Adjustable length with intermediate steel or aluminum tubes.
– Non-reactive elastic buffer ring.
– Excellent torque transmission capability and compensation for misalignment
– High transmission accuracy.
– Temperature range: -30°C to +120°C / -22°F to +248°F.

View more product “Metal Bellows Couplings GWB PKA“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Metal Bellows Couplings GWB Z5106:

GWB Z5106 Encoder Shaft Coupling is widely used in transmission systems requiring high precision such as vertical shaft pumps, linear drives, and screw lift mechanisms. In addition, the product is also used in packaging machines, machine tools and specialized machines, helping to ensure stable transmission, accurate signal feedback and reduce deviation during operation.

4. Technical of the Metal Bellows Couplings GWB Z5106:

Catalogue Ringfeder GWB Z5106				Installation Ringfeder GWB Z5106

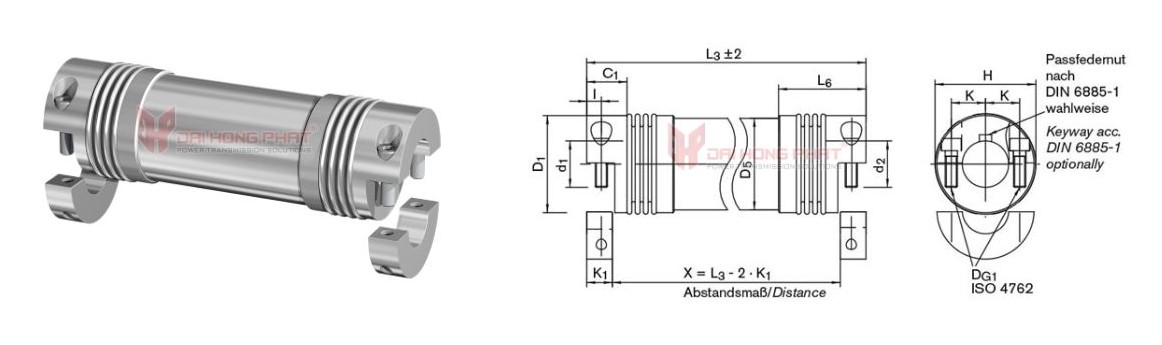

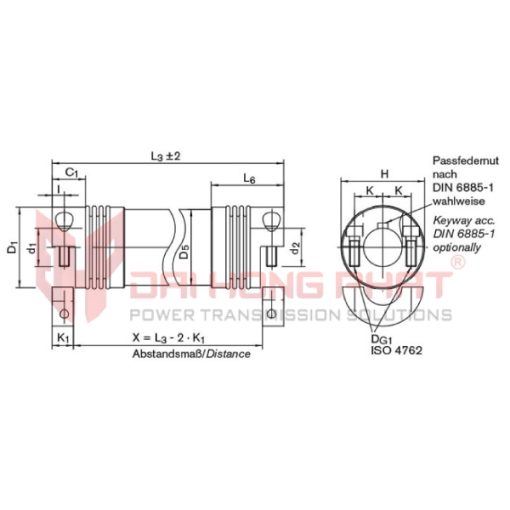

*Technical drawing of Metal Bellows Couplings GWB Z5106*

Coupling Model	Dimensions [mm]
Coupling Model	d₁;d₂min-max	^d1k^;d2k min-max	C₁	D₁	D₅	H	L3 min-max
Z5106 18	8 – 25	8 – 22	20	45	40	47.5	134 – 3000
Z5106 30	10 – 25	10 – 22	24.5	55	50	56	133 – 3000
Z5106 60	12 – 35	12 – 29	29	64	60	66.5	165 – 3000
Z5106 150	14 – 40	14 – 36	33	80	80	83	205 – 3000
Z5106 200	22 – 44	22 – 38	37.5	90	90	92	218 – 3000
Z5106 300	24 – 55	24 – 52	37.5	110	100	110	227 – 3000
Z5106 500	35 – 62	35 – 54	41	119	114	122	251 – 3000
