Let’s learn about Ringfeder Metal Bellows Couplings GWB CKN with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Metal Bellows Couplings GWB CKN products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
2. Characteristics of The GWB CKN:
– The Metal Bellows Couplings GWB CKN are manufactured by Ringfeder/Germany.
– Bore diameter d: 22-145 mm.
– Outer diameter D: 46-230 mm.
– Overall length L: 36-143 mm.
– Torque T: 22-5,000 Nm.
– Compact design, low moment of inertia.
– Metal bellows made of stainless steel.
– No harsh reaction to transmit torque.
– High torsional stiffness, precise angular transmission.
– Compensates for radial, axial, and angular misalignment.
– Not sensitive to temperatures from -30°C to +100°C.
View more product “Metal Bellows Couplings GWB AK“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of The Metal Bellows Couplings GWB CKN:
GWB EKN Encoder Shaft Coupling is widely used in transmission systems requiring high precision such as vertical shaft pumps, linear drives, and screw lift mechanisms. In addition, the product is also used in packaging machines, machine tools and specialized machines, helping to ensure stable transmission, accurate signal feedback and reduce deviation during operation.

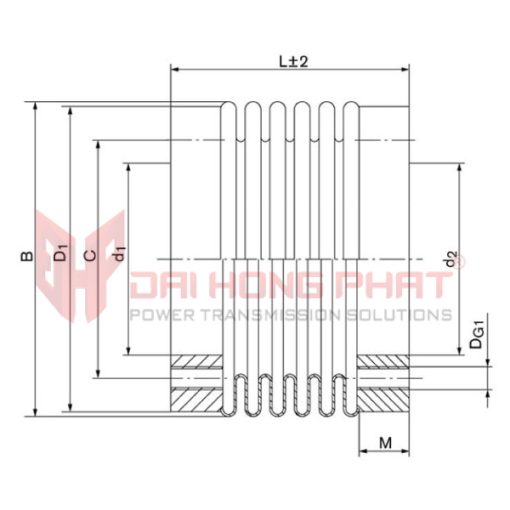

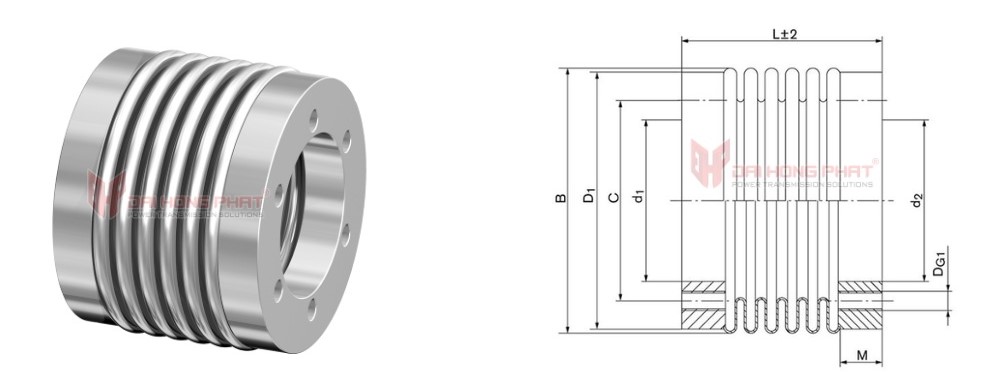

4. Technical of the Metal Bellows Couplings GWB CKN:
| Catalogue Ringfeder GWB CKN |
Installation Ringfeder GWB CKN |
||||||
 |
|
| Coupling Model |
TKN | nmax | Dimensions [mm] | Gw | |||
| [Nm] | 1/min | L | d1 | d2 | D1 | [kg] | |
| CKN 18 | 22 | 13900 | 36 | 22 | 22 | 46 | 0.06 |
| CKN 18 | 22 | 13900 | 44 | 22 | 22 | 46 | 0.06 |
| CKN 30 | 36 | 11000 | 30 | 28 | 28 | 55 | 0.12 |
| CKN 30 | 36 | 11000 | 38 | 28 | 28 | 55 | 0.12 |
| CKN 60 | 75 | 9000 | 41 | 38 | 38 | 64 | 0.19 |
| CKN 60 | 75 | 9000 | 51 | 38 | 38 | 64 | 0.19 |
| CKN 80 | 96 | 7100 | 52 | 50 | 50 | 80 | 0.36 |
| CKN 80 | 96 | 7100 | 62 | 50 | 50 | 80 | 0.36 |
| CKN 150 | 180 | 7100 | 52 | 50 | 50 | 80 | 0.36 |
| CKN 150 | 180 | 7100 | 62 | 50 | 50 | 80 | 0.36 |
| CKN 200 | 240 | 6600 | 51 | 50 | 50 | 90 | 0.48 |
| CKN 200 | 240 | 6600 | 63 | 50 | 50 | 90 | 0.48 |
| CKN 300 | 360 | 5200 | 55 | 65 | 65 | 109 | 0.59 |
| CKN 300 | 360 | 5200 | 66 | 65 | 65 | 109 | 0.59 |
| CKN 500 | 600 | 4600 | 61 | 70 | 70 | 119 | 0.88 |
| CKN 500 | 600 | 4600 | 72 | 70 | 70 | 119 | 0.88 |
| CKN 800 | 960 | 3700 | 130 | 85 | 85 | 152 | 3.74 |
| CKN 1400 | 1680 | 3700 | 130 | 85 | 85 | 152 | 3.73 |
| CKN 3000 | 3000 | 3700 | 130 | 100 | 100 | 180 | 7.8 |
| CKN 5000 | 5000 | 3700 | 143 | 145 | 145 | 230 | 11.74 |
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from Ringfeder Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
