Let’s learn about Ringfeder Metal Bellows Couplings GWB AKD with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Metal Bellows Couplings GWB AKD products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
2. Characteristics of the Metal Bellows Couplings Ringfeder GWB AKD:

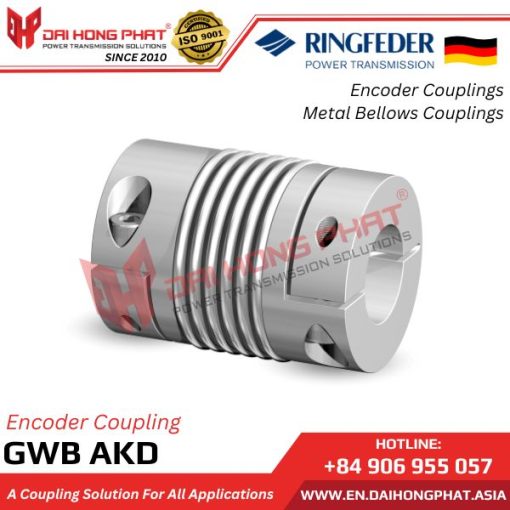

– The Metal Bellows Couplings GWB AKD, manufactured by Ringfeder/Germany.
– Bore diameter (d): 8-75 mm.
– Outer diameter (D): 45-132 mm.
– Total length (L): 71-140 mm.
– Torque (T): 18-800 Nm.
– Working environment: -30°C to +100°C
– Contact surfaces must be free from oil and grease.
– Optional design available with DIN 6885-1 keyway.
– Special design option available in stainless steel.
– Other sizes are available upon request.
View more product “Metal Bellows Couplings GWB Z5106“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Application of GWB AKD Encoder Shaft Coupling
GWB AKD Encoder Shaft Coupling is widely used in transmission systems requiring high precision such as vertical shaft pumps, linear drives, and screw lift mechanisms. In addition, the product is also used in packaging machines, machine tools and specialized machines, helping to ensure stable transmission, accurate signal feedback and reduce deviation during operation.
4. Technical of the Metal Bellows Couplings GWB AKD
The Metal Bellows Couplings Ringfeder GWB AKD are utilized across various applications. Its core characteristics include transmitting torque without significant reactionary response, high torsional stiffness, and excellent compensation for angular misalignment, shaft misalignment, and axial displacement.
Technical of the Ringfeder GWB AKD Coupling:
| Catalogue Ringfeder GWB AKD Coupling |
Installation Ringfeder GWB AKD Couplings |
||||||
 |
|
| Coupling Model |
Torque [Nm] | nmax | d1, d2 | Dimensions [mm] | Gw | ||
| TKN | T screw | [rpm] | min-max | D1 | L | [kg] | |
| AKD 18 | 22 | 6 | 12700 | 8 – 26 | 45 | 71 | 0.143 |
| AKD 30 | 36 | 12 | 10200 | 10 – 30 | 55 | 73 | 0.236 |
| AKD 60 | 75 | 30 | 8600 | 12 – 35 | 64 | 89 | 0.434 |
| AKD 80 | 95 | 60 | 6800 | 14 – 42 | 80 | 103 | 0.792 |
| AKD 150 | 180 | 85 | 6800 | 14 – 42 | 80 | 103 | 0.792 |
| AKD 200 | 240 | 100 | 6300 | 22 – 46 | 90 | 113 | 1.117 |
| AKD 300 | 360 | 120 | 5900 | 24 – 60 | 110 | 115 | 1.495 |
| AKD 500 | 600 | 190 | 4900 | 35 – 64 | 119 | 122 | 2.038 |
| AKD 800 | 800 | 250 | 5000 | 40 – 75 | 132 | 140 | 6.06 |
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from Ringfeder Germany.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
