1. Dai Hong Phat Corp. is the exclusive representative specializing in supplying all Max Dynamic Couplings throughout Vietnam:
– Established in 1991, Woojin is a company specialized in manufacturing polyurethane couplings and has been exported to over 28 countries. They have been widely accepted in foreign markets due to obtaining CE ATEX certification (II2GD c T5).
– Dai Hong Phat has partnered with Woojin, a manufacturer striving to provide the best quality products and contribute to a cleaner global environment.
– Dai Hong Phat Company is the importer and distributor of all genuine Max Dynamic Spacer Couplings from the Woojin brand in Vietnam.
– With over 15 years of credibility, Dai Hong Phat ensures customers can purchase 100% genuine Max Dynamic shaft couplings with high quality and the most competitive prices on the market.

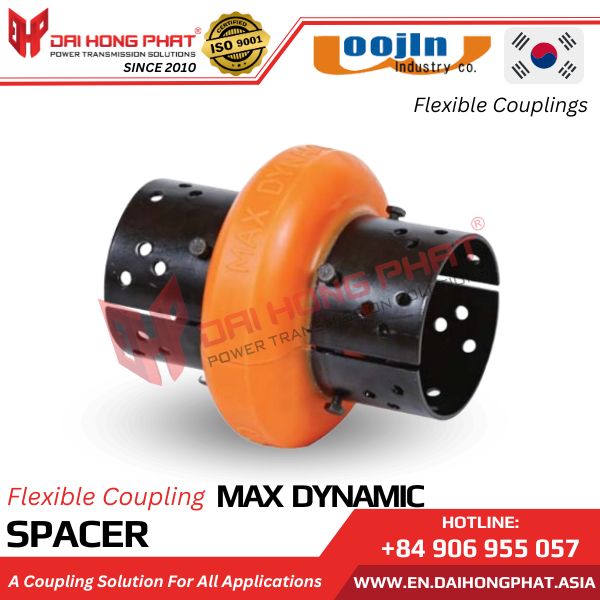

2. Characteristics of the Max Dynamic Spacer Flexible Coupling:
– Max Dynamic Spacer Couplings are manufactured by Woo Jin/Korea.
– The damping ring material for the coupling is Polyurethane.
– It exhibits excellent resistance to water and chemicals, with high elasticity.
– The coupling allows for simple assembly and disassembly without the need for lubricating grease.
– Torque range: 21.58Nm – 4463.55Nm.
– Bore diameter: 28mm – 155mm.
– Rotational speed: 7500 rpm – 1800 rpm.
View more product “Max Dynamic HS Couplings“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Max Dynamic Spacer Couplings:
Max Dynamic Spacer Couplings find applications in various industries and machinery where reliable power transmission and vibration damping are essential. Some common applications include:
– Agitator
– Blower
– Compressor
– Conveyors
– Cranes & Hoists
– Elevators
– Fans
– Generators
– Pumps
– Brewery & distilling
– Food industry
– Lumber industry
– Pulp & paper mill
– Rubber industry
– Steel industry
– Textile mills
– Aggregate processing cement

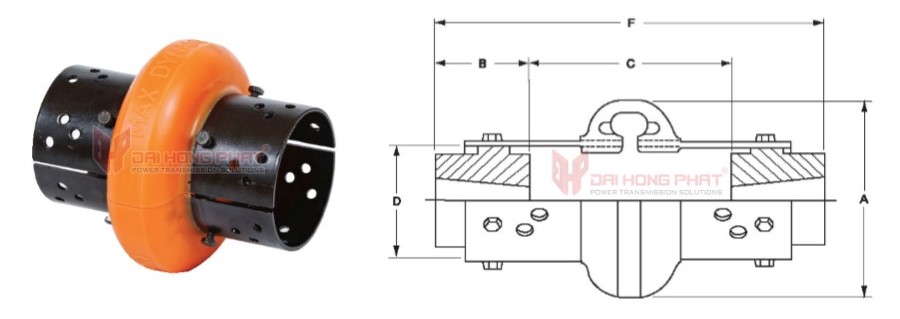

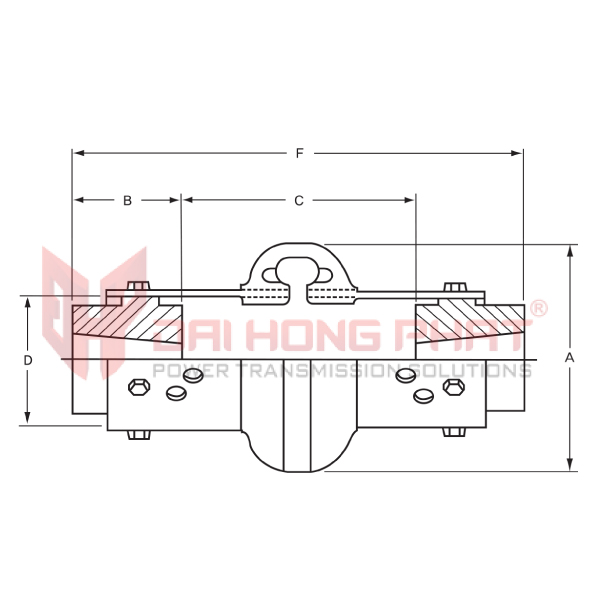

4. Technical drawing of the Max Dynamic Spacer Flexible Coupling:
| Catalogue Max Dynamic Spacer |
Installation Max Dynamic Spacer |
||||||
 |
|
|
Model |
Torque |
Max. |
Dimensions in mm |
||||||
|
A |
B |
C (in-out) |
D |
F (in-out) |
|||||
|
DS-2 |
22 |
28 |
89 |
24 |
91 |
100 |
47 |
146 |
149 |
|
DS-3 |
41 |
34 |
102 |
37 |
85 |
140 |
59 |
184 |
216 |
|
DS-4 |
63 |
42 |
116 |
37 |
85 |
140 |
66 |
184 |
216 |
|
DS-5 |
108 |
48 |
137 |
45 |
89 |
140 |
80 |
184 |
228 |
|
DS-10 |
164 |
55 |
162 |
45 |
89 |
140 |
93 |
184 |
228 |
|
DS-20 |
262 |
60 |
184 |
50 |
67 |
180 |
114 |
238 |
280 |
|
DS-30 |
413 |
75 |
210 |
56 |
54 |
180 |
138 |
238 |
293 |
|
DS-40 |
622 |
85 |
241 |
61 |
41 |
180 |
168 |
238 |
307 |
|
DS-50 |
865 |
90 |
279 |
69 |
28 |
180 |
207 |
238 |
319 |
|
DS-60 |
1,413 |
105 |
318 |
80 |
66 |
250 |
222 |
318 |
415 |
|
DS-70 |
2,492 |
120 |
356 |
85 |
59 |
250 |
235 |
318 |
421 |
|
DS-80 |
4,464 |
155 |
406 |
114 |
37 |
250 |
286 |
318 |
478 |
5. Why choose Dai Hong Phat as the supplier for Max Dynamic Couplings?
– You will be able to purchase the Max Dynamic Spacer Couplings directly imported by Dai Hong Phat, ensuring 100% authenticity.
– Rest assured, Dai Hong Phat will safeguard you against risks by ensuring the authenticity of the Max Dynamic Spacer Couplings, protecting you from counterfeit products.
– Dai Hong Phat provides comprehensive CO/CQ documentation for the Max Dynamic shaft couplings supplied by our company.
– Our stock of shaft couplings is always readily available in Dai Hong Phat’s warehouse, ensuring prompt delivery to our customers.
– Dai Hong Phat will provide technical drawings of the Max Dynamic Rubber Coupling upon request from customers.
– We offer dedicated support and technical advice to our customers regarding shaft couplings, facilitated by our highly skilled technical team.
– Dai Hong Phat is always ready to offer free consultations for optimal solutions tailored to your plant’s needs.
– We supply authentic Max Dynamic coupling catalogs from the manufacturer for our customers’ reference.
– Customers will receive complimentary customization of technical specifications and sizes for Max DynamicTire Coupling according to their requirements.
– Our nationwide 24/7 delivery service ensures minimized downtime for your machinery, providing peace of mind during operation.
– Dai Hong Phat boasts a professional machining workshop for customized adjustments according to our customers’ specific requirements.
