1. Dai Hong Phat Corp. is the exclusive representative specializing in supplying all Max Dynamic Couplings throughout Vietnam:
– Established in 1991, Woojin is a company specialized in manufacturing polyurethane couplings and has been exported to over 28 countries. They have been widely accepted in foreign markets due to obtaining CE ATEX certification (II2GD c T5).
– Dai Hong Phat has partnered with Woojin, a manufacturer striving to provide the best quality products and contribute to a cleaner global environment.
– Dai Hong Phat Company is the importer and distributor of all genuine Max Dynamic HT Coupling from the Woojin brand in Vietnam.
– With over 15 years of credibility, Dai Hong Phat ensures customers can purchase 100% genuine Max Dynamic shaft couplings with high quality and the most competitive prices on the market.

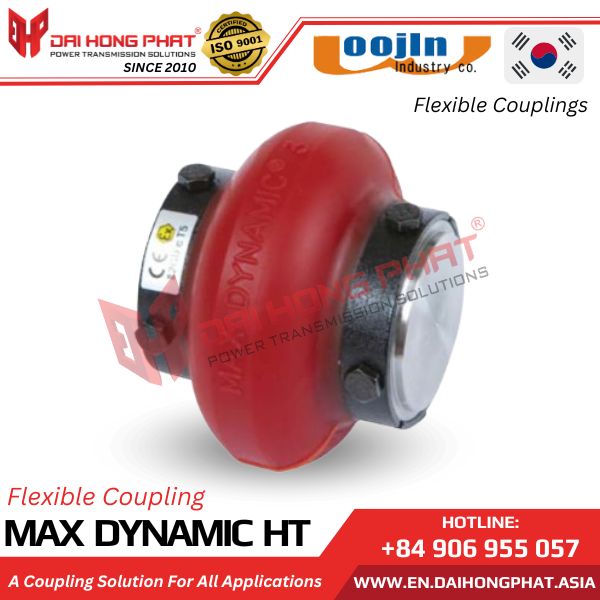

2. Characteristics of the Max Dynamic HT Couplings:
– Max Dynamic HT Couplings are manufactured by Woojin/Korea.
– It has a torque capacity higher than standard couplings by over 30% and a screw hardness of 45%.
– The damping ring material for the coupling is made of Polyurethane.
– It exhibits excellent resistance to water and chemicals, with high elasticity.
– The coupling allows for simple assembly and disassembly without the need for lubricating grease.
– Torque range: 27.47Nm – 49172Nm.
– Rotational speed: 7500 rpm – 1500 rpm.
– Maximum bore diameter: 28mm – 229mm.
– The coupling is available in 15 different sizes: D-2HT, D-3HT, D-4HT, D-5HT, D-10HT, D-20HT, D-30HT, D-40HT, D-50HT, D-60HT, D-70HT, D-80HT, D-100HT, D-120HT, D-140HT.
View more product “Max Dynamic Spacer Couplings“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Max Dynamic HT Flexible Coupling:
Max Dynamic HT Couplings find applications in various industries and machinery where reliable power transmission and vibration damping are essential. Some common applications include:
– Agitator
– Blower
– Compressor
– Conveyors
– Cranes & Hoists
– Elevators
– Fans
– Generators
– Pumps
– Brewery & distilling
– Food industry
– Lumber industry
– Pulp & paper mill
– Rubber industry
– Steel industry
– Textile mills
– Aggregate processing cement

Max Dynamic HT Couplings at Dai Hong Phat Corp.

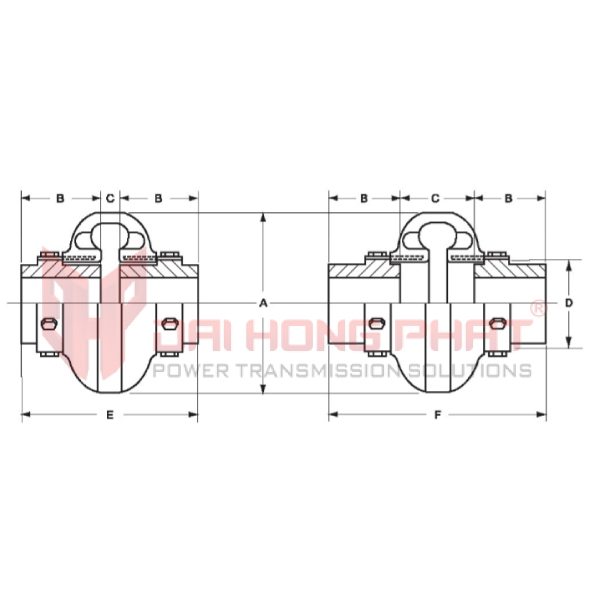

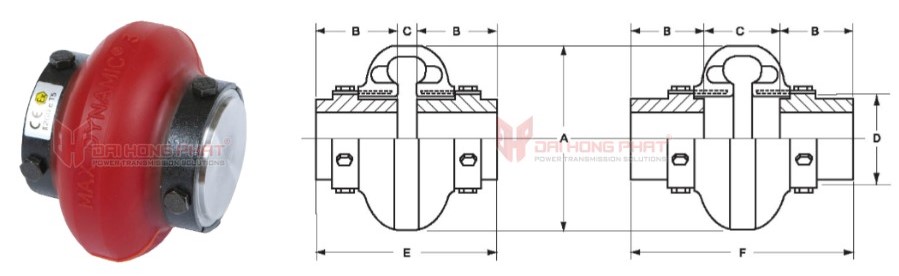

4. Technical of the Max Dynamic HT Flexible Coupling:
| Catalogue Max Dynamic HT |
Installation Max Dynamic HT |
||||||

|
Model |
Torque |
Max. |
Dimensions in mm |
||||||
|
A |
B |
C (in-out) |
D |
E |
F |
||||
|
D-2HT |
28 |
28 |
89 |
24 |
35 |
47 |
47 |
83 |
95 |
|
D-3HT |
53 |
34 |
102 |
37 |
9 |
47 |
59 |
83 |
121 |
|
D-4HT |
81 |
42 |
116 |
37 |
9 |
47 |
66 |
83 |
121 |
|
D-5HT |
140 |
48 |
137 |
45 |
10 |
52 |
80 |
100 |
142 |
|
D-10HT |
213 |
55 |
162 |
45 |
11 |
53 |
93 |
101 |
143 |
|
D-20HT |
341 |
60 |
184 |
50 |
15 |
63 |
114 |
115 |
163 |
|
D-30HT |
537 |
75 |
210 |
56 |
12 |
68 |
138 |
124 |
180 |
|
D-40HT |
808 |
85 |
241 |
61 |
12 |
74 |
168 |
134 |
196 |
|
D-50HT |
1,124 |
90 |
279 |
69 |
12 |
86 |
207 |
150 |
224 |
|
D-60HT |
1,835 |
105 |
318 |
80 |
11 |
99 |
222 |
171 |
259 |
|
D-70HT |
3,237 |
120 |
356 |
85 |
18 |
109 |
235 |
189 |
281 |
|
D-80HT |
5,788 |
155 |
406 |
114 |
17 |
149 |
286 |
245 |
377 |
|
D-100HT |
12,450 |
171 |
533 |
140 |
44 |
95 |
359 |
324 |
375 |
|
D-120HT |
24,525 |
190 |
635 |
152 |
57 |
124 |
448 |
362 |
429 |
5. Why choose Dai Hong Phat as the supplier for Max Dynamic Couplings?
– You will be able to purchase the Max Dynamic HT directly imported by Dai Hong Phat, ensuring 100% authenticity.
– Rest assured, Dai Hong Phat will safeguard you against risks by ensuring the authenticity of the Max Dynamic HT Couplings, protecting you from counterfeit products.
– Dai Hong Phat provides comprehensive CO/CQ documentation for the Max Dynamic shaft couplings supplied by our company.
– Our stock of shaft couplings is always readily available in Dai Hong Phat’s warehouse, ensuring prompt delivery to our customers.
– Dai Hong Phat will provide technical drawings of the Max Dynamic Coupling upon request from customers.
– We offer dedicated support and technical advice to our customers regarding shaft couplings, facilitated by our highly skilled technical team.
– Dai Hong Phat is always ready to offer free consultations for optimal solutions tailored to your plant’s needs.
– We supply authentic Max Dynamic coupling catalogs from the manufacturer for our customers’ reference.
– Customers will receive complimentary customization of technical specifications and sizes for Max DynamicTire Coupling according to their requirements.
– Our nationwide 24/7 delivery service ensures minimized downtime for your machinery, providing peace of mind during operation.
– Dai Hong Phat boasts a professional machining workshop for customized adjustments according to our customers’ specific requirements.
