MAV 3009 SHRINK DISC

The Shrink Disc MAV 3009, part of the standard series, features a two-part design comprising an inner ring with grooves and push threads, an outer ring, and a hexagon socket head screw set with size M16. It incorporates external locking components to securely link the hollow shaft and the shaft.

Category: MAV Shrink Discs Tags: MAV 3009, Shaft clamping element, Shaft lock, Shrink disc, Shrink Disc MAV 3009

Description

5/5 - (1 vote)

1. What makes Dai Hong Phat Corp. the ideal choice for your Shrink Disc MAV supplier?

– You will be able to purchase 100% genuine Shrink Disc MAV 3009 directly imported by Dai Hong Phat from the manufacturer.
– You can trust Dai Hong Phat to protect you from risks and counterfeit products of MAV.
– Dai Hong Phat provides complete CO/CQ documents for Shrink Disc MAV.
– MAV products are always available in Dai Hong Phat’s warehouse, ensuring fast delivery to customers.
– Dai Hong Phat will provide technical drawings of the MAV products you purchase upon request.
– Dai Hong Phat offers dedicated support and consultation to customers regarding bolted flexible couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat provides free consultation on optimal solutions for your plant regarding genuine MAV Products.
– Dai Hong Phat provides customers with genuine Shrink Disc MAV catalogues.
– Dai Hong Phat offers free technical parameter conversion and customization of MAV 3008 according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat has a professional workshop for custom machining according to customers’ specific requirements.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Shrink Disc MAV products throughout Vietnam:

– Dai Hong Phat is the exclusive importer and distributor of all 100% genuine MAV brand shrink disc products across Vietnam and the Southeast Asia region.
– With over 10 years of reputable service, Dai Hong Phat ensures customers acquire 100% authentic Shrink Disc MAV 3009 products with high quality and the best prices in the market.

3. Characteristics of Shrink Disc MAV 3009:

– Shrink Disc MAV 3009 is manufactured by MAV/Italy.
– Inner diameter d: 50-500 mm.
– Outer diameter D: 90-850 mm.
– Total length L: 31.3-231.7 mm.
– Torque T: 1,540-1,818Mio Nm.
– Self-releasing taper, lubricated with MoS2 (μ = 0.05).
– Surface finish of shaft and hub Ra <3.2 μm
– Contact surface with bore hole is dry and grease-free (μ = 0.15)
– The MAV 3009 provides a tight frictional connection for the shaft without requiring keyways, and there is no backlash between the hollow shaft and the device shaft. The shrink disc is mounted on the outer diameter of the hollow shaft and attached to the shaft.
– The shrink disc is suitable for converting torque, axial loads, and bending moments, either separately or simultaneously. Loads are converted through pressure and friction between the contact surfaces of the hollow shaft and the shaft. Under high-temperature conditions, the device generates high radial pressure on the hollow shaft and the shaft.

View more product “Shrink Disc MAV 3008“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Shrink Disc MAV 3009:

Dai Hong Phat is the official distributor of Shrink Disc MAV 3009 products in Vietnam.
MAV 3009 is widely used in industries such as healthcare, food processing, woodworking, and energy.
MAV 3009 provides a tight frictional connection, ensuring stability and efficiency for equipment and machinery.

5. Technical of Shrink Disc MAV 3009:

Catalogue MAV 3009				Installation MAV 3009

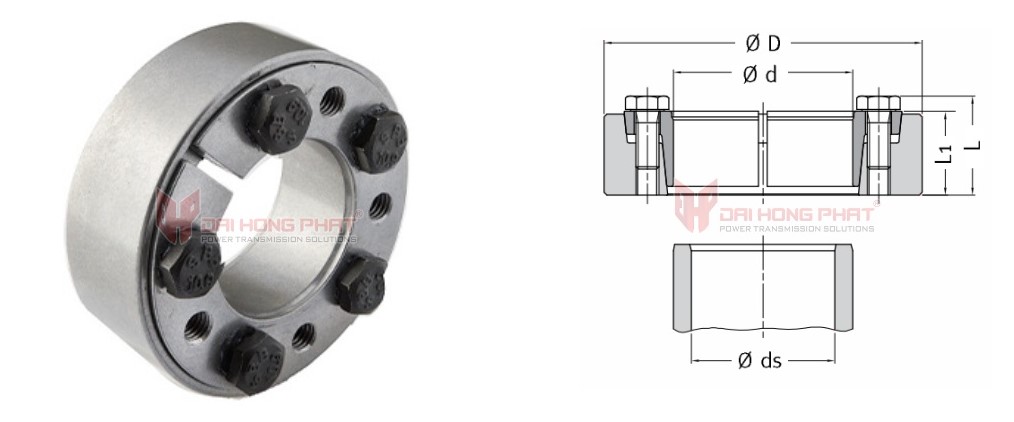

*Technical drawing of Shrink Disc MAV 3009*

DIMENSIONS				SCREWS		FEATURES				WEIGHT
ds mm	d mm x D mm	L mm	L1 mm	size	Ma Nm	Mt Nm	Fax kN	Ps MPa	Ph MPa	kg
38	50 x 90	31.3	26	M 8	35	1,540	81	206	281	0.83
40						1,820	91	220	281
42						2,130	102	233	281
42	55 x 100	34.3	29	M 8	35	2,030	96	212	279	1.2
45						2,520	112	229	279
48						3,070	128	246	279
48	62 x 110	34.3	29	M 8	35	2,390	99	191	248	1.4
50						2,710	109	200	248
52						2,870	110	196	248
50	68 x 115	34.3	29	M 8	35	2,300	92	170	254	1.4
55						3,220	117	197	254
60						4,300	143	220	254
55	75 x 138	37.4	31	M 10	70	3,540	129	199	276	2.3
60						4,680	156	221	276
65						5,990	184	241	276
60	80 x 145	37.4	31	M 10	70	4,070	136	192	259	2.5
65						5,250	161	211	259
70						6,580	188	228	259
65	90 x 155	44.4	38	M 10	70	6,000	185	201	268	3.4
70						7,500	214	217	268
75						9,180	245	231	268
70	100 x 170	49.4	43	M 10	70	8,130	232	207	274	4.7
75						9,930	265	220	274
80						11,900	298	233	274
75	110 x 185	56.5	49	M 12	121	11,400	303	220	285	6.2
80						13,600	340	232	285
85						15,100	355	227	285
80	115 x 197	60.5	53	M 12	121	14,300	358	226	285	7.6
85						15,700	370	220	285
90						18,600	414	232	285
85	120 x 197	60.5	53	M 12	121	14,400	339	201	273	7.3
90						17,100	381	214	273
95						20,100	423	225	273
85	125 x 215	60.5	53	M 12	121	15,300	360	214	292	9.2
90						18,100	402	226	292
95						21,200	446	237	292
85	130 x 215	60.5	53	M 12	121	14,100	332	198	280	8.8
90						16,700	373	209	280
95						19,600	414	220	280
90	135 x 230	66.8	58	M 14	193	16,700	372	191	267	11
95						19,700	415	201	267
100						22,900	458	211	267
95	140 x 230	66.8	58	M 14	193	18,300	386	187	257	11
100						21,300	427	197	257
105						24,600	469	206	257
105	155 x 263	70.8	62	M 14	193	26,500	504	204	267	16
110						30,200	549	212	267
115						34,100	594	219	267
115	165 x 290	78	68	M 16	295	39,200	682	225	280	22
120						44,000	733	232	280
125						48,000	768	233	280
125	175 x 300	78	68	M 16	295	49,300	789	239	293	23
130						54,800	843	246	293
135						60,500	897	252	293
135	180 x 320	95	85	M 16	295	68,600	1,020	225	270	34
140						75,600	1,080	231	270
145						83,100	1,150	236	270
135	185 x 320	95	85	M 16	295	65,500	970	215	262	33
140						72,300	1,030	220	262
145						79,400	1,100	226	262
150	200 x 340	95	85	M 16	295	91,500	1,220	243	283	37
155						99,600	1,280	248	283
160						108,000	1,350	252	283
160	220 x 370	115.5	103	M 20	570	124,000	1,560	234	275	53
165						135,000	1,630	238	275
170						145,000	1,710	242	275
170	240 x 405	119.5	107	M 20	570	151,000	1,780	241	281	66
180						174,000	1,930	248	281
190						196,000	2,070	251	281
190	260 x 430	131.5	119	M 20	570	199,000	2,100	227	265	81
200						227,000	2,270	234	265
210						256,000	2,440	239	265
210	280 x 460	144.5	132	M 20	570	258,000	2,460	218	250	104
220						290,000	2,640	223	250
230						324,000	2,820	228	250
230	300 x 485	155	140	M 24	980	356,000	3,090	234	261	120
240						395,000	3,290	238	261
250						436,000	3,490	243	261
240	320 x 520	155	140	M 24	980	359,000	2,990	217	245	139
250						397,000	3,180	221	245
260						433,000	3,330	223	245
250	340 x 570	170	155	M 24	980	487,000	3,900	247	275	191
260						529,000	4,070	248	275
270						580,000	4,300	252	275
260	350 x 580	174	159	M 24	980	515,000	3,960	231	260	200
270						565,000	4,180	235	260
280						617,000	4,400	238	260
280	360 x 590	174	159	M 24	980	625,000	4,470	242	266	205
290						680,000	4,690	245	266
300						737,000	4,920	248	266
300	390 x 650	183	166	M 27	1450	755,000	5,030	247	270	252
310						815,000	5,260	250	270
320						873,000	5,460	251	270
330	420 x 670	203	186	M 27	1450	953,000	5,780	226	248	288
340						1,024,000	6,020	229	248
350						1,097,000	6,270	232	248
340	440 x 740	211	194	M 27	1450	1,072,000	6,310	229	251	392
350						1,148,000	6,560	231	251
360						1,228,000	6,820	234	251
360	460 x 770	211	194	M 27	1450	1,218,000	6,770	232	252	423
370						1,299,000	7,020	234	252
380						1,383,000	7,280	236	252
380	480 x 800	231.7	213	M 30	1970	1,529,000	8,050	239	257	498
390						1,624,000	8,330	241	257
400						1,722,000	8,610	243	257
400	500 x 850	231.7	213	M 30	1970	1,632,000	8,160	230	247	575
410						1,718,000	8,380	231	247
420						1,818,000	8,660	233	247
