MAV 2008 SHRINK DISC

The Shrink Disc MAV 2008 is an externally locking device that provides a rigid frictional connection without severe reactions. It is mounted onto the outer diameter of the hub and the shaft. MAV 2008 is suitable for converting torque and axial loads.

Category: MAV Shrink Discs Tags: MAV 2008, Shaft clamping element, Shaft lock, Shrink disc, Shrink disc wind turbine

Description

5/5 - (1 vote)

1. What makes Dai Hong Phat Corp. the ideal choice for your Shrink Disc MAV supplier?

– You will be able to purchase 100% genuine Shrink Disc MAV 2008 directly imported by Dai Hong Phat from the manufacturer.
– You can trust Dai Hong Phat to protect you from risks and counterfeit products of MAV.
– Dai Hong Phat provides complete CO/CQ documents for Shrink Disc MAV.
– MAV products are always available in Dai Hong Phat’s warehouse, ensuring fast delivery to customers.
– Dai Hong Phat will provide technical drawings of the MAV products you purchase upon request.
– Dai Hong Phat offers dedicated support and consultation to customers regarding bolted flexible couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat provides free consultation on optimal solutions for your plant regarding genuine MAV Products.
– Dai Hong Phat provides customers with genuine Shrink Disc MAV catalogues.
– Dai Hong Phat offers free technical parameter conversion and customization of MAV 3008 according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat has a professional workshop for custom machining according to customers’ specific requirements.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Shrink Disc MAV products throughout Vietnam:

– Dai Hong Phat is the exclusive importer and distributor of all 100% genuine MAV brand shrink disc products across Vietnam and the Southeast Asia region.
– With over 10 years of reputable service, Dai Hong Phat ensures customers acquire 100% authentic Shrink Disc MAV 2008 products with high quality and the best prices in the market.

3. Charateristics of Shrink Disc MAV 2008:

– The Shrink Disc MAV 2008 is manufacturer MAV/Italy.
– Inner diameter d: 20-500 mm.
– Outer diameter D: 46-850 mm.
– Total length L: 45-670 mm.
– Torque T: 130-1,800Mio Nm.
– Self-releasing cone, lubricated with MoS2 (μ = 0.05)
– Screws lubricated with MoS2 (μ = 0.10)
– Tolerance of the outer diameter: h8
– Surface finish of the shaft and center Ra <3.2 μm
– The three-part design of the shrink disc is suitable for converting torque, axial loads, and bending moments. Applied loads are converted through pressure and friction between the mating surfaces of the device shaft and the hollow shaft. The lubricated cone facilitates self-releasing and flexible operation.
– The MAV 2008 shrink disc provides tight frictional connection of shafts without backlash between the device shaft and the hollow shaft. It is suitable for converting torque and axial loads. At high temperatures, MAV 2008 generates high radial pressure on the hollow shaft and the shaft.

View more product “Shrink Disc MAV 3009“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Shrink Disc MAV 2008:

The Shrink Disc MAV 2008 is currently widely used in industries such as machinery, medical equipment, food processing, and corrosive environments. MAV 2008 offers economic efficiency, cost savings on maintenance and servicing, and enhances the durability of equipment by securely fastening components.

5. Technical of Shrink Disc MAV 2008:

Catalogue MAV 2008				Installation MAV 2008

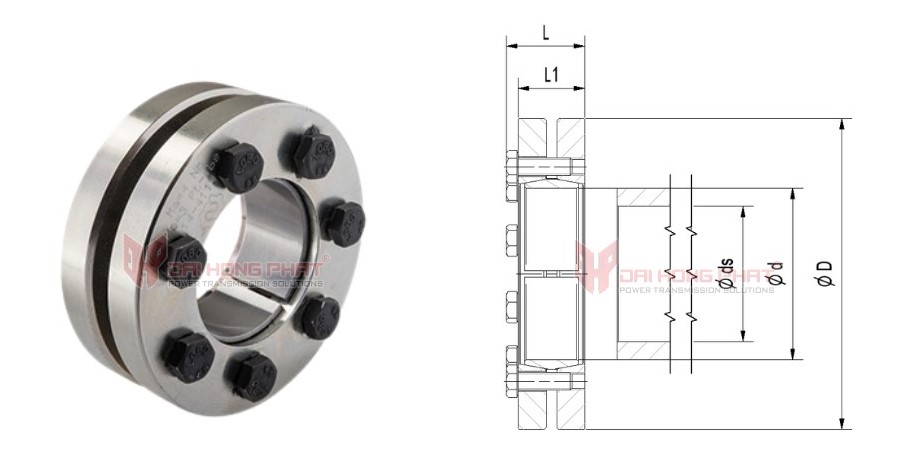

*Technical drawing of Shrink Disc MAV 2008*

DIMENSIONS								SCREWS			FEATUREA				WEIGHT
ds mm	d mm x D mm	L mm	L1 mm	L2 mm	L3 mm	Iv mm	a x 45° mm	n.	size	Ma Nm	Mt Nm	Fax kN	Ps MPa	Ph MPa	kg
10	14 x 38	18,5	15,0	6,0	8,7	25	1,2	3	M 5	4	36	7	154	335	0,10
11											54	10	191	335
12											82	14	243	335
12	16 x 41	20,5	17,0	7,0	9,7	27	1,2	3	M 5	4	38	6	93	244	0,10
13											65	10	136	244
14											97	14	175	244
14	18 x 44	20,5	17,0	7,0	9,7	29	1,2	4	M 5	4	96	14	172	289	0,14
15											130	17	205	289
16											170	21	235	289
15	20 x 46	20,5	17,0	7,0	9,7	32	1,2	5	M 5	4	130	17	205	325	0,15
16											170	21	232	325
17											210	25	258	325
19	24 x 50	21,5	18,0	7,8	11,5	36	2,1	6	M 5	4	220	24	189	279	0,19
20											280	28	209	279
21											330	32	228	279
24	30 x 60	23,5	20,0	8,5	12,5	44	2,1	7	M 5	4	350	29	159	228	0,29
25											400	32	172	228
26											470	36	184	228
28	36 x 72	26,0	22,0	9,5	13,5	52	2,1	5	M 6	12	770	55	232	297	0,47
30											960	64	250	297
31											980	63	240	297
34	44 x 80	28,0	24,0	10,5	14,5	61	2,1	7	M 6	12	1,200	72	225	306	0,59
35											1,400	77	235	306
36											1,500	83	244	306
38	50 x 90	31,0	27,0	11,5	16,0	70	2,1	8	M 6	12	1,500	80	204	280	0,81
40											1,800	91	219	280
42											2,100	101	232	280
42	55 x 100	33,0	29,0	12,5	17,0	75	2,9	8	M 6	12	1,700	80	176	243	1,1
45											2,100	94	193	243
48											2,600	110	210	243
48	62 x 110	33,0	29,0	12,5	17,0	86	2,9	10	M 6	12	2,700	110	213	270	1,3
50											3,000	120	222	270
52											3,200	120	218	270
50	68 x 115	33,0	29,0	12,5	17,0	86	2,9	10	M 6	12	2,500	100	184	246	1,3
55											3,100	110	188	246
60											4,100	140	212	246
55	75 x 138	36,3	31,0	13,0	20,5	100	3,7	7	M 8	30	3,500	130	199	276	2,2
60											4,700	160	221	276
65											6,000	180	241	276
60	80 x 145	36,3	31,0	13,0	20,5	100	4,0	7	M 8	30	4,100	140	192	259	2,4
65											5,200	160	211	259
70											6,600	190	228	259
60	85 x 155	43,3	38,0	16,5	24,0	114	4,0	10	M 8	30	5,400	180	213	290	3,4
65											6,900	210	231	290
70											8,600	250	248	290
65	90 x 155	43,3	38,0	16,5	24,0	114	4,0	10	M 8	30	6,200	190	206	274	3,3
70											7,700	220	222	274
75											9,400	250	236	274
65	95 x 170	48,3	43,0	19,0	26,5	124	4,0	12	M 8	30	6,800	210	200	274	4,6
70											8,400	240	215	274
75											10,300	270	228	274
70	100 x 170	48,3	43,0	19,0	26,5	124	4,0	12	M 8	30	7,600	220	194	261	4,4
75											9,300	250	207	261
80											11,300	280	220	261
70	105 x 185	55,4	49,0	21,5	29,5	136	4,0	9	M 10	59	8,100	230	180	253	6,2
75											10,000	270	193	253
80											12,100	300	205	253
75	110 x 185	55,4	49,0	21,5	29,5	136	4,0	9	M 10	59	9,100	240	176	242	5,9
80											11,000	280	188	242
85											12,200	290	183	242
80	115 x 200	56,4	50,0	22,0	30,0	150	4,0	10	M 10	59	11,500	290	191	250	7,2
85											12,600	300	185	250
90											15,100	340	198	250
85	120 x 200	56,4	50,0	22,0	30,0	150	4,0	10	M 10	59	11,400	270	168	240	7,0
90											13,800	310	180	240
95											16,300	340	192	240
85	125 x 215	59,4	53,0	23,0	31,5	160	4,0	12	M 10	59	13,300	310	186	263	8,7
90											15,800	350	198	263
95											18,600	390	209	263
90	130 x 215	59,4	53,0	23,0	31,5	160	4,0	12	M 10	59	14,600	320	182	253	8,4
95											17,200	360	193	253
100											20,100	400	203	253
95	140 x 230	65,5	58,0	25,0	34,0	175	6,0	10	M 12	100	18,600	390	190	259	10
100											21,600	430	199	259
105											24,900	470	208	259
105	155 x 263	69,5	62,0	26,0	36,0	192	6,0	12	M 12	100	25,400	480	195	259	15
110											29,000	530	203	259
115											32,800	570	211	259
115	165 x 290	78,0	68,0	29,0	39,0	210	5,0	8	M 16	250	38,900	680	223	278	21
120											43,600	730	230	278
125											47,600	760	231	278
125	175 x 300	78,0	68,0	29,0	39,0	220	6,0	8	M 16	250	42,900	690	208	262	21
130											47,800	740	215	262
135											53,100	790	221	262
135	185 x 330	95,0	85,0	36,0	47,5	236	6,0	10	M 16	250	60,000	890	197	244	34
140											66,400	950	202	244
145											73,100	1,000	208	244
140	195 x 350	95,0	85,0	36,0	47,5	246	6,0	12	M 16	250	75,600	1,100	231	278	38
150											90,600	1,200	241	278
155											98,700	1,300	245	278
150	200 x 350	95,0	85,0	36,0	47,5	246	6,0	12	M 16	250	87,000	1,200	231	271	37
155											94,800	1,200	236	271
160											103,000	1,300	240	271
160	220 x 370	114,0	104,0	45,0	59,5	270	8,0	15	M 16	250	110,000	1,400	208	249	50
165											120,000	1,500	212	249
170											129,000	1,500	216	249
170	240 x 405	120,5	108,0	47,0	61,5	295	8,0	12	M 20	490	146,000	1,700	233	273	63
180											168,000	1,900	239	273
190											190,000	2,000	243	273
180	250 x 430	131,5	119,0	53,0	67,0	321	8,0	14	M 20	490	186,000	2,100	236	273	82
190											209,000	2,200	239	273
200											238,000	2,400	245	273
190	260 x 430	131,5	119,0	53,0	67,0	321	8,0	14	M 20	490	197,000	2,100	225	262	78
200											224,000	2,200	231	262
210											254,000	2,400	237	262
210	280 x 460	144,5	132,0	58,0	76,0	346	9,0	16	M 20	490	260,000	2,500	220	252	97
220											292,000	2,700	225	252
230											327,000	2,800	230	252
230	300 x 485	152,5	140,0	63,0	80,0	364	9,0	18	M 20	490	334,000	2,900	219	247	113
240											371,000	3,100	224	247
250											410,000	3,300	228	247
240	320 x 520	152,5	140,0	63,0	80,0	386	9,0	20	M 20	490	380,000	3,200	229	257	131
250											419,000	3,400	233	257
260											457,000	3,500	235	257
250	340 x 570	168,5	156,0	72,0	88,0	408	9,0	24	M 20	490	465,000	3,700	232	261	186
260											506,000	3,900	233	261
270											555,000	4,100	237	261
260	350 x 580	172,5	160,0	73,0	90,0	432	9,0	24	M 20	490	483,000	3,700	217	246	193
270											530,000	3,900	220	246
280											580,000	4,100	224	246
280	360 x 590	172.5	160.0	73.0	90.0	432	9.0	24	M 20	490	556,000	4,000	215	239	197
290											606,000	4,200	219	239
295											632,000	4,300	220	239
290	380 x 645	179,0	164,0	76,0	92,0	458	9,0	20	M 24	840	682,000	4,700	239	263	255
300											739,000	4,900	242	263
310											799,000	5,200	245	263
310	390 x 660	179,0	164,0	76,0	94,5	468	11.0	21	M 24	840	813,000	5,200	249	269	266
315											844,000	5,400	251	269
320											871,000	5,400	251	269
315	400 x 680	199,0	184,0	84,0	104,5	480	11,0	21	M 24	840	806,000	5,100	210	231	314
320											831,000	5,200	210	231
330											896,000	5,400	213	231
330	420 x 690	199,0	184,0	84,0	104,5	504	11,0	24	M 24	840	967,000	5,900	230	251	311
340											1,040,000	6,100	232	251
350											1,110,000	6,400	235	251
340	440 x 750	207,0	192,0	86,0	108,5	527	11,0	24	M 24	840	970,000	5,700	207	229	392
350											1,040,000	5,900	209	229
360											1,110,000	6,200	212	229
360	460 x 770	207,0	192,0	86,0	108,5	547	11,0	24	M 24	840	1,040,000	5,800	199	219	405
370											1,120,000	6,000	201	219
380											1,190,000	6,300	203	219
380	480 x 800	228,0	213,0	96,0	121,5	570	14,0	30	M 24	840	1,420,000	7,500	221	240	485
390											1,510,000	7,700	224	240
400											1,600,000	8,000	225	240
400	500 x 850	230,0	213,0	96,0	121,5	590	14,0	24	M 27	1,250	1,620,000	8,100	228	245	560
410											1,700,000	8,300	229	245
420											1,800,000	8,600	231	245
