RINGFEDER LOCKING ASSEMBLIES RfN 7007

The Ringfeder RfN 7007 Locking Assemblies are a two-piece design similar to the Ringfeder RfN 7006, but are extended with lower shaft pressure and hollow shafts. The locking assemblies offer all the useful features needed to secure the supporting components in the application and ensure high rotational speeds.

Dai Hong Phat Corp Shaft Coupling is an authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Category: Ringfeder Locking Assemblies Tags: Ringfeder distributors, Shaft hub connections, Power transmission components, Locking devices, Ringfeder Cambodia, Authorized Distributor for Ringfeder Products in Cambodia, Authorized Distributor for Ringfeder Products in Philippines, Authorized Distributor for Ringfeder Products in Laos, Authorized Distributor for Ringfeder Products in Vietnam, Ringfeder Philippines, Ringfeder Laos, Locking Assemblies RfN 7007, LOCKING ELEMENTS, RFN 7007, RINGFEDER RFN 7007, power lock, LOCKING ASSEMBLY

Description

5/5 - (3 votes)

Let’s learn about Ringfeder Locking Assemblies RfN 7007 with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Locking Assemblies RfN 7007 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See more: Other Ringfeder Locking Assemblies

2. Characteristics of Locking Assemblies Ringfeder RfN 7007:

– Locking Assemblies RfN 7007 are manufactured by Ringfeder/Germany.
– Inner diameter d: 19-200mm.
– Outer diameter D: 47-260mm.
– Total length L: 45-98mm.
– Torque T: 270-48,800Nm.
– This device is used to connect the motor shaft with pulleys. Designed in correspondence with RfN 7004, it provides essential features required for supporting components in applications and ensuring high-speed operation while enduring substantial radial loads.
– The device features low surface pressure, making it suitable for thin-walled hollow shafts with small extended lengths and accurately positioned fan blades.

View more product “Locking Assemblies RfN 7110“

MỌI THẮC MẮC HOẶC YÊU CẦU BÁO GIÁ, QUÝ KHÁCH VUI LÒNG LIÊN HỆ:
PHÒNG KINH DOANH
HOTLINE: 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Locking Assemblies RfN 7007:

Locking Assemblies RfN 7007 are commonly used to securely connect motor shafts to pulleys in various industrial applications. They find extensive use in conveyor systems, power transmission equipment, industrial fans, machine tools, packaging machinery, printing presses, and agricultural equipment. These assemblies provide reliable and efficient shaft-to-pulley connections, ensuring smooth operation even at high speeds and under heavy loads.

See article: Applications of Ringfeder RfN Mini Locking Assemblies

4. Technical of Locking Assemblies RfN 7007:

Catalogue Ringfeder RfN 7007				Installation Ringfeder RfN 7007

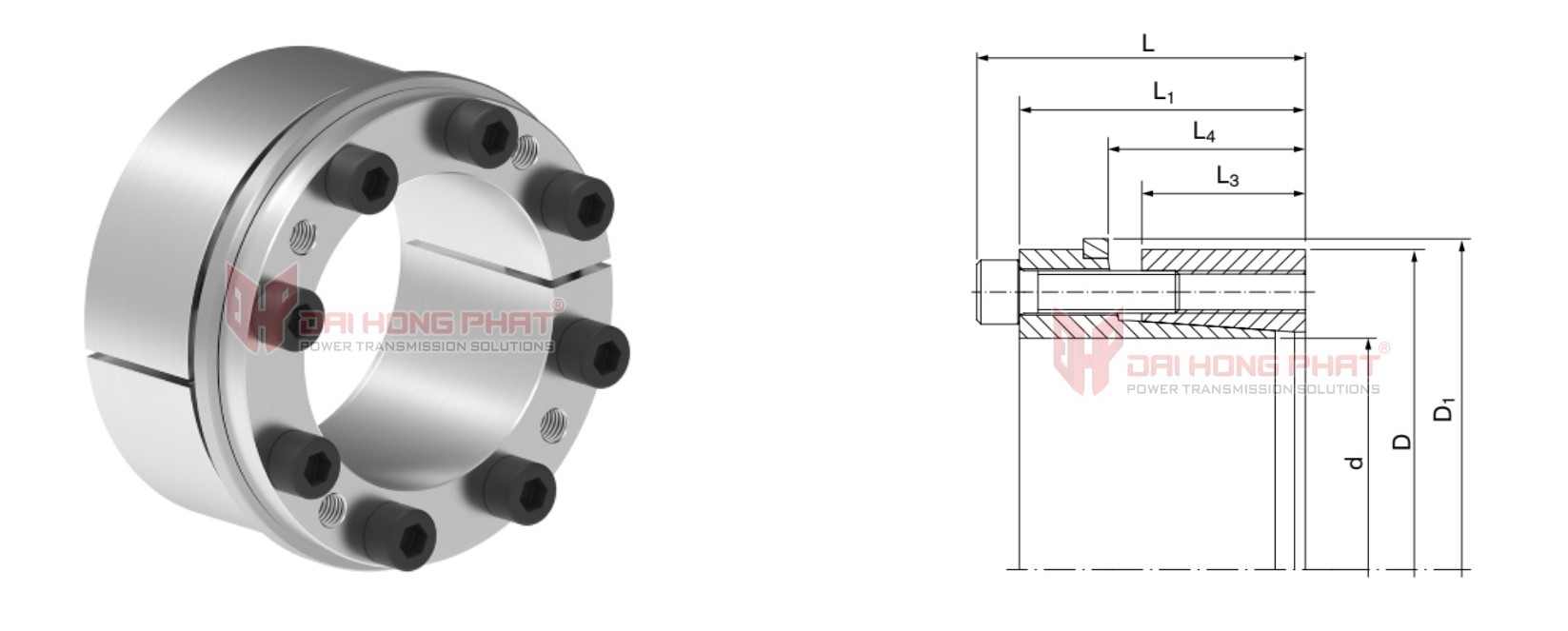

*Technical drawing of Locking Assemblies RfN 7007*

Ringfeder RfN 7007 locking assembly specifications:

Dimensions [mm]				T	TA	Fax [KN]
dxD	D1	L	L1	[Nm]		Fax [KN]
19×47	53	45	39	320	17	33
20×47	53	45	39	330	17	33
22×47	53	45	39	370	17	33
24×50	56	45	39	400	17	33
25×50	56	45	39	420	17	33
28×55	61	45	39	470	17	33
30×55	61	45	39	500	17	33
32×60	66	45	39	710	17	44
35×60	66	45	39	780	17	44
38×65	71	45	39	850	17	44
40×65	71	45	39	890	17	44
42×75	81	55	47	1270	41	61
45×75	81	55	47	1360	41	61
48×80	86	55	47	1940	41	81
50×80	86	55	47	2020	41	81
55×85	91	55	47	2220	41	81
60×90	96	55	47	2430	41	81
65×95	101	55	47	2630	41	81
70×110	116	72	62	4580	83	131
75×115	121	72	62	4900	83	131
80×120	126	72	62	5230	83	131
85×125	131	72	62	6950	83	163
90×130	136	72	62	7350	83	163
95×135	141	72	62	7760	83	163
100×145	151	89	77	9780	83	196
…	…	…	…	…	…	…
